View ESEC.ESECDBA.ASSET_IP_RPT_V Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

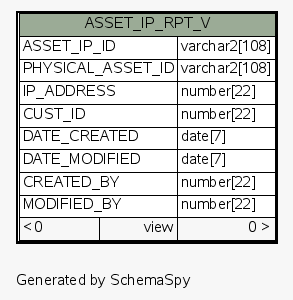

Column Type Size Nulls Auto Default Children Parents Comments
ASSET_IP_ID varchar2 108
ASSET_IP.ASSET_IP_ID Implied Constraint
PHYSICAL_ASSET_ID varchar2 108
PHYSICAL_ASSET.PHYSICAL_ASSET_ID Implied Constraint
IP_ADDRESS number 22  √  null
CUST_ID number 22  √  null
CUST.CUST_ID Implied Constraint
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Analyzed at Tue May 04 17:09 EDT 2010

View SQL:
SELECT ASSET_IP.ASSET_IP_ID, ASSET_IP.PHYSICAL_ASSET_ID, ASSET_IP.IP_ADDR, ASSET_IP.CUST_ID, ASSET_IP.DATE_CREATED, ASSET_IP.DATE_MODIFIED, ASSET_IP.CREATED_BY, ASSET_IP.MODIFIED_BY
FROM ASSET_IP

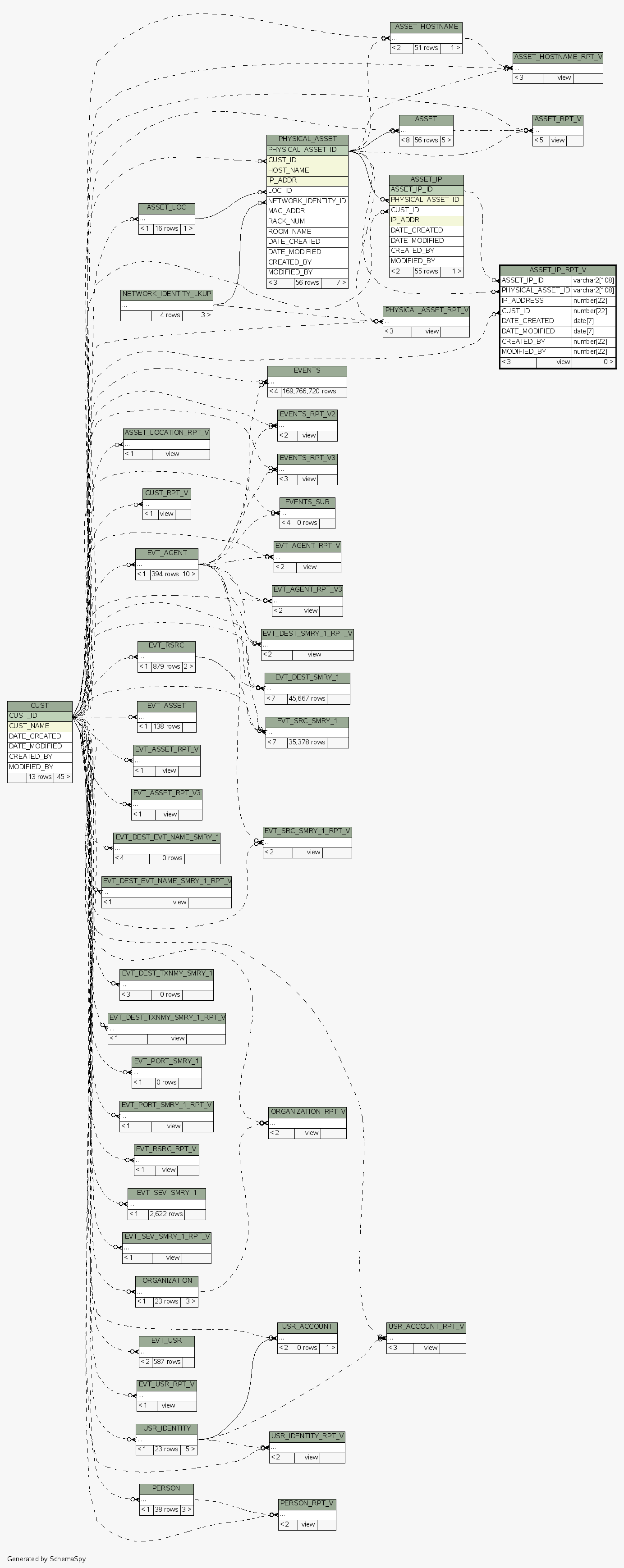

Close relationships:
