Table ESEC.ESECDBA.ESEC_PORT_REFERENCE Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
PORT_NUMBER number 22
PROTOCOL_NUMBER number 22
ESEC_PROTOCOL_REFERENCE.PROTOCOL_NUMBER ESEC_PROTOCOL_ESEC_PORT_FK
PORT_KEYWORD varchar2 192  √  null
PORT_DESCRIPTION varchar2 1536  √  null
DATE_CREATED date 7
DATE_MODIFIED date 7
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 2,047 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
PORT_NUMBER + PROTOCOL_NUMBER Primary key Asc/Asc ESEC_PORT_REFERENCE_PK
PROTOCOL_NUMBER Performance Asc ESEC_PORT_REF_PROTOCOL_NBR_IDX

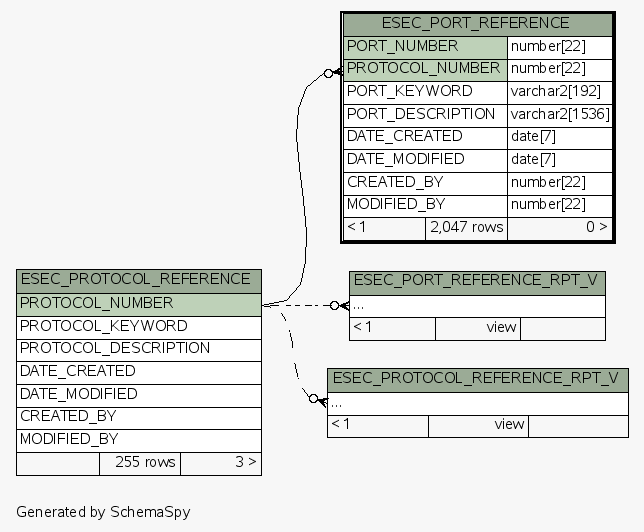

Close relationships:
