Table ESEC.ESECDBA.EVT_SRC Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
EVT_SRC_ID varchar2 108
EVT_SRC_OFFSET.EVT_SRC_ID EVT_SRC_OFFSET_FK
EVT_SRC_OFFSET_RPT_V.EVT_SRC_ID Implied Constraint
EVT_SRC_RPT_V.EVT_SRC_ID Implied Constraint
EVT_SRC_NAME varchar2 765
EVT_SRC_GRP_ID varchar2 108
EVT_SRC_GRP.EVT_SRC_GRP_ID EVT_SRC_FK
STATE_IND number 1
MAP_FILTER clob 4000  √  null
EVT_SRC_CONFIG clob 4000  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null

Table contained 12 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
EVT_SRC_ID Primary key Asc EVT_SRC_PK

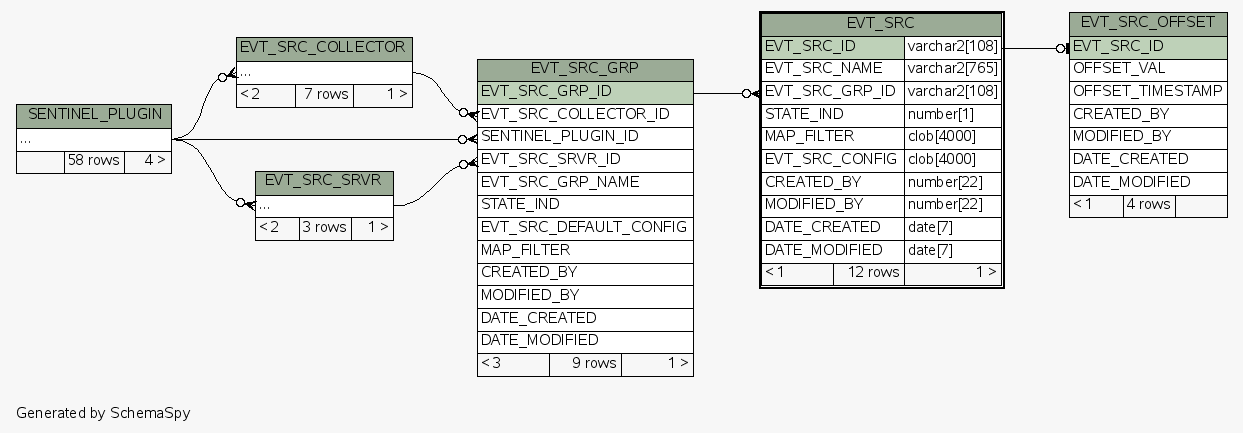

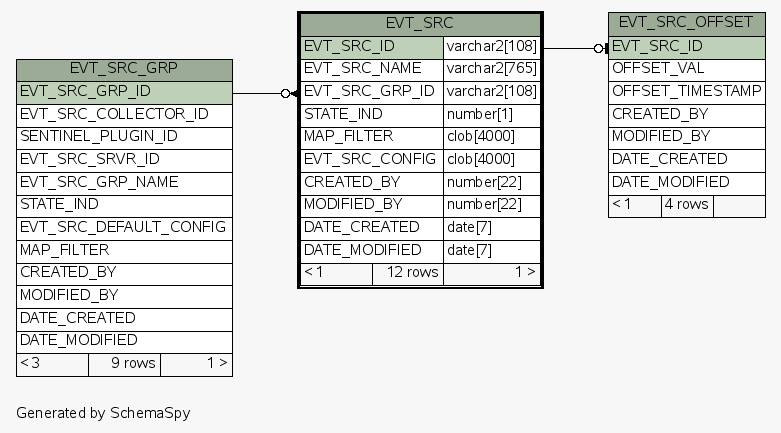

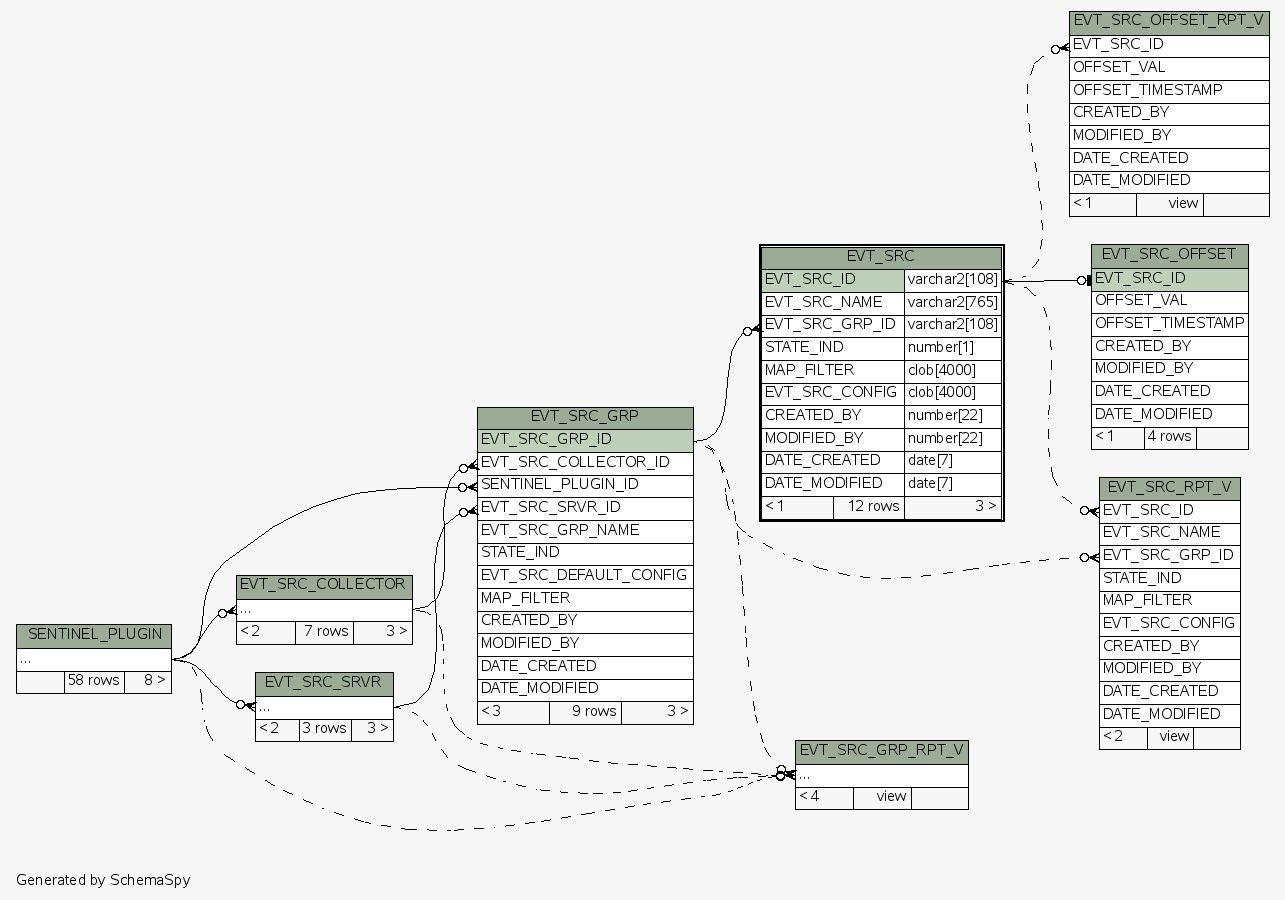

Close relationships  within of separation:
