Table ESEC.ESECDBA.EVT_SRC_COLLECTOR Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
EVT_SRC_COLLECTOR_ID varchar2 108
EVT_SRC_COLLECTOR_RPT_V.EVT_SRC_COLLECTOR_ID Implied Constraint
EVT_SRC_GRP.EVT_SRC_COLLECTOR_ID EVT_SRC_GRP_COLLECTOR_ID_FK
EVT_SRC_GRP_RPT_V.EVT_SRC_COLLECTOR_ID Implied Constraint
SENTINEL_PLUGIN_ID varchar2 108
SENTINEL_PLUGIN.SENTINEL_PLUGIN_ID EVT_SRC_COLLECTOR_PLUGIN_FK
EVT_SRC_MGR_ID varchar2 108
EVT_SRC_MGR.EVT_SRC_MGR_ID EVT_SRC_COLLECTOR_MGR_ID_FK
EVT_SRC_COLLECTOR_NAME varchar2 765
STATE_IND number 1
EVT_SRC_COLLECTOR_PROPS clob 4000  √  null
MAP_FILTER clob 4000  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null

Table contained 7 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
EVT_SRC_COLLECTOR_ID Primary key Asc EVT_SRC_COLLECTOR_PK

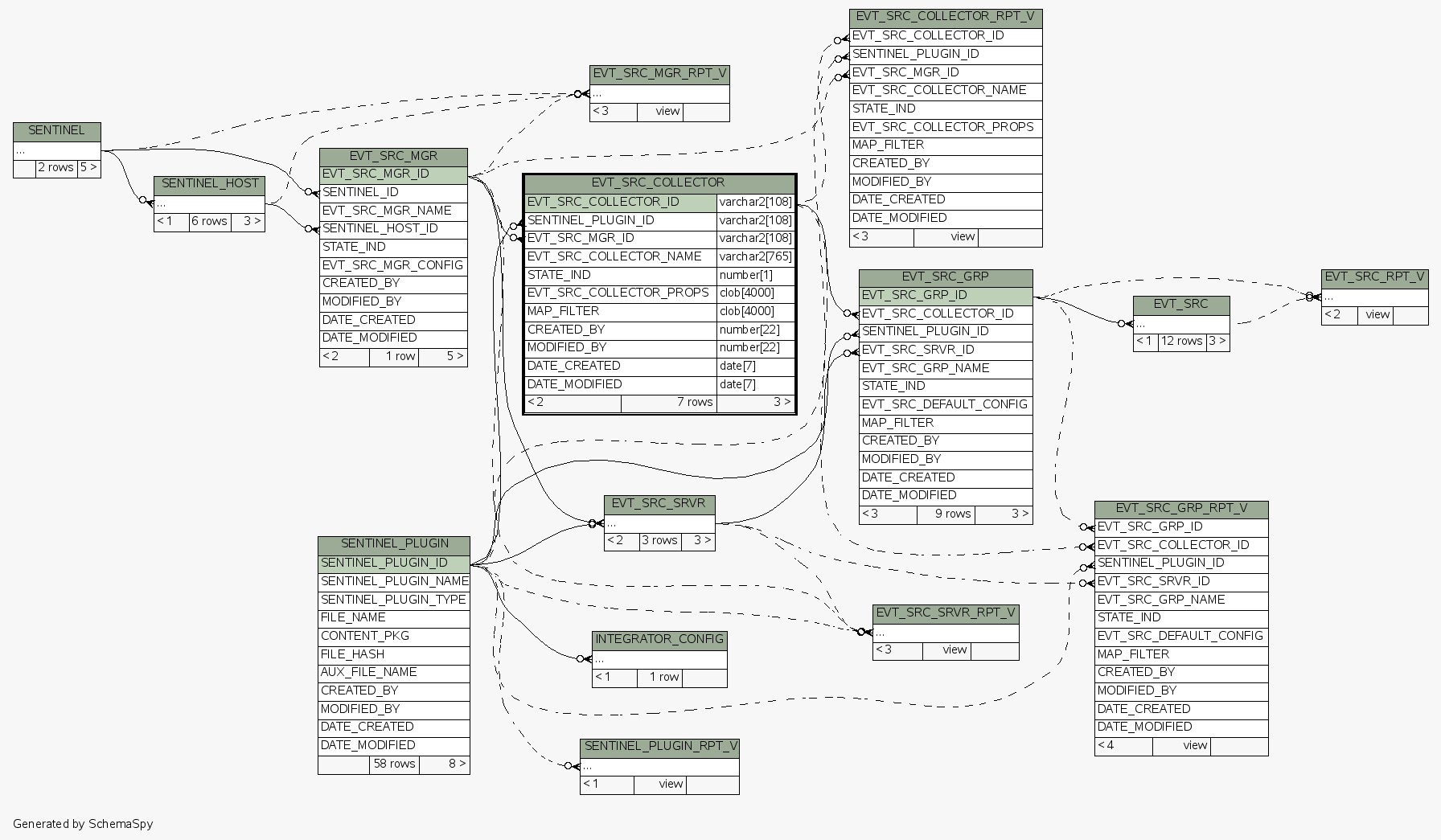

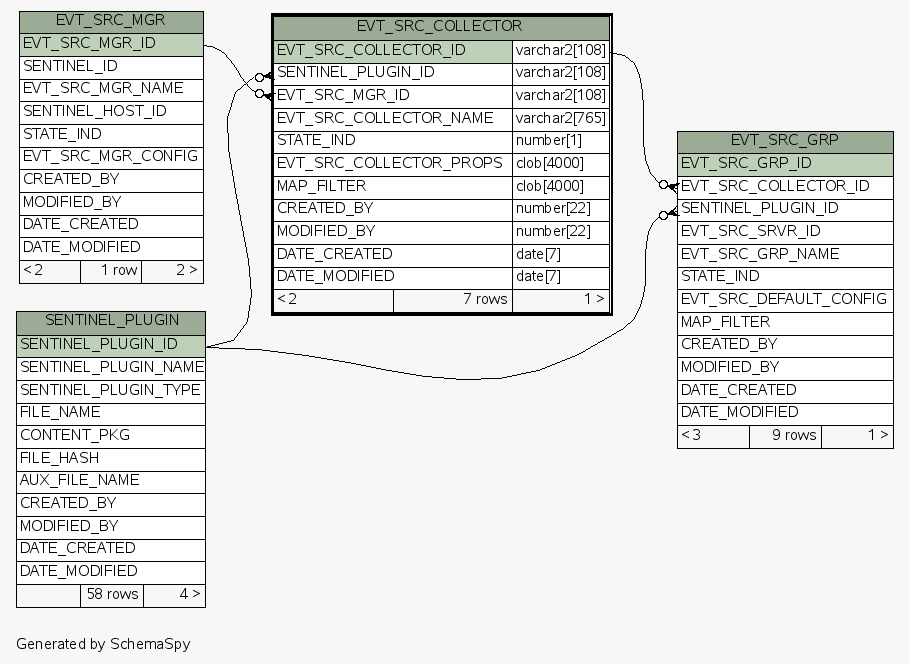

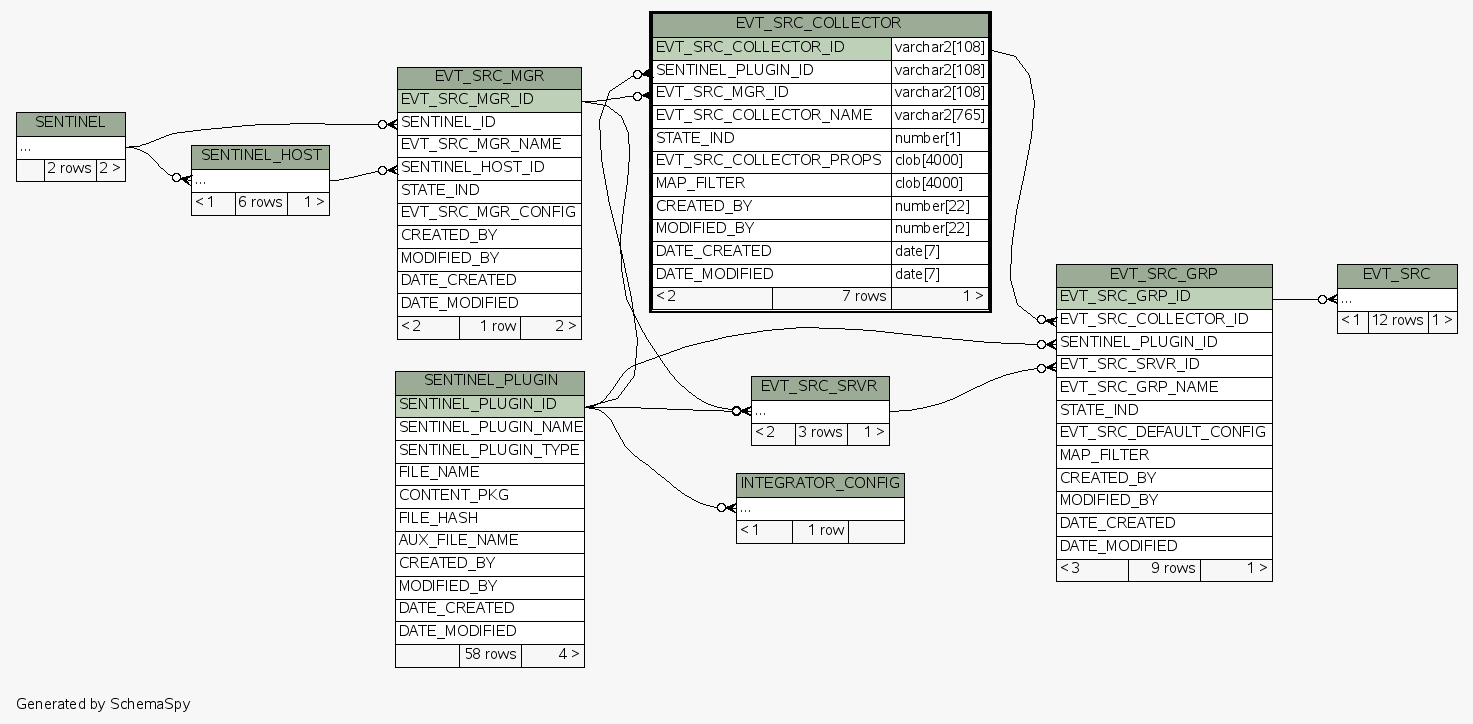

Close relationships  within of separation:
