View SIEM.public.esec_protocol_reference_rpt_v
Industry standard assigned protocol numbers

Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
protocol_number int4 10  √  null
esec_protocol_reference.protocol_number Implied Constraint R
Per http://www.iana.org/assignments/protocol-numbers, the numerical identifiers used to represent protocols that are encapsulated in an IP packet.
protocol_keyword varchar 64  √  null Per http://www.iana.org/assignments/protocol-numbers, the keyword used to represent protocols that are encapsulated in an IP packet.
protocol_description varchar 512  √  null IP packet protocol description.
date_created timestamptz 35,6  √  null Date the entry was created
date_modified timestamptz 35,6  √  null Date the entry was modified
created_by int4 10  √  null User who created object
modified_by int4 10  √  null User who last modified object

Analyzed at Mon Mar 26 23:24 EDT 2012

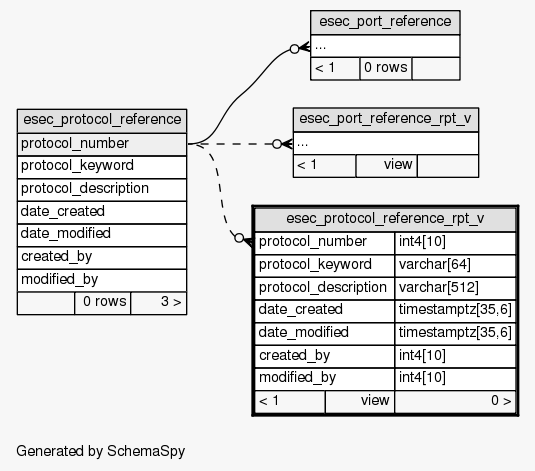

Close relationships:
