View SIEM.public.evt_src_mgr_rpt_v
The configuration information for all collector manager nodes (event source manager is an internal name used for collector manager nodes).

Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
evt_src_mgr_id uuid 2147483647  √  null
evt_src_mgr.evt_src_mgr_id Implied Constraint R
Event source manager identifier
sentinel_id uuid 2147483647  √  null
sentinel.sentinel_id Implied Constraint R
Sentinel identifier
sentinel_host_id uuid 2147483647  √  null
sentinel_host.sentinel_host_id Implied Constraint R
Sentinel host identifier
evt_src_mgr_name varchar 255  √  null Event source manager name
state_ind bool 1  √  null State indicator
evt_src_mgr_config text 2147483647  √  null Event source manager configuration
created_by int4 10  √  null User who created object
modified_by int4 10  √  null User who last modified object
date_created timestamptz 35,6  √  null Date the entry was created
date_modified timestamptz 35,6  √  null Date the entry was modified

Analyzed at Mon Mar 26 23:24 EDT 2012

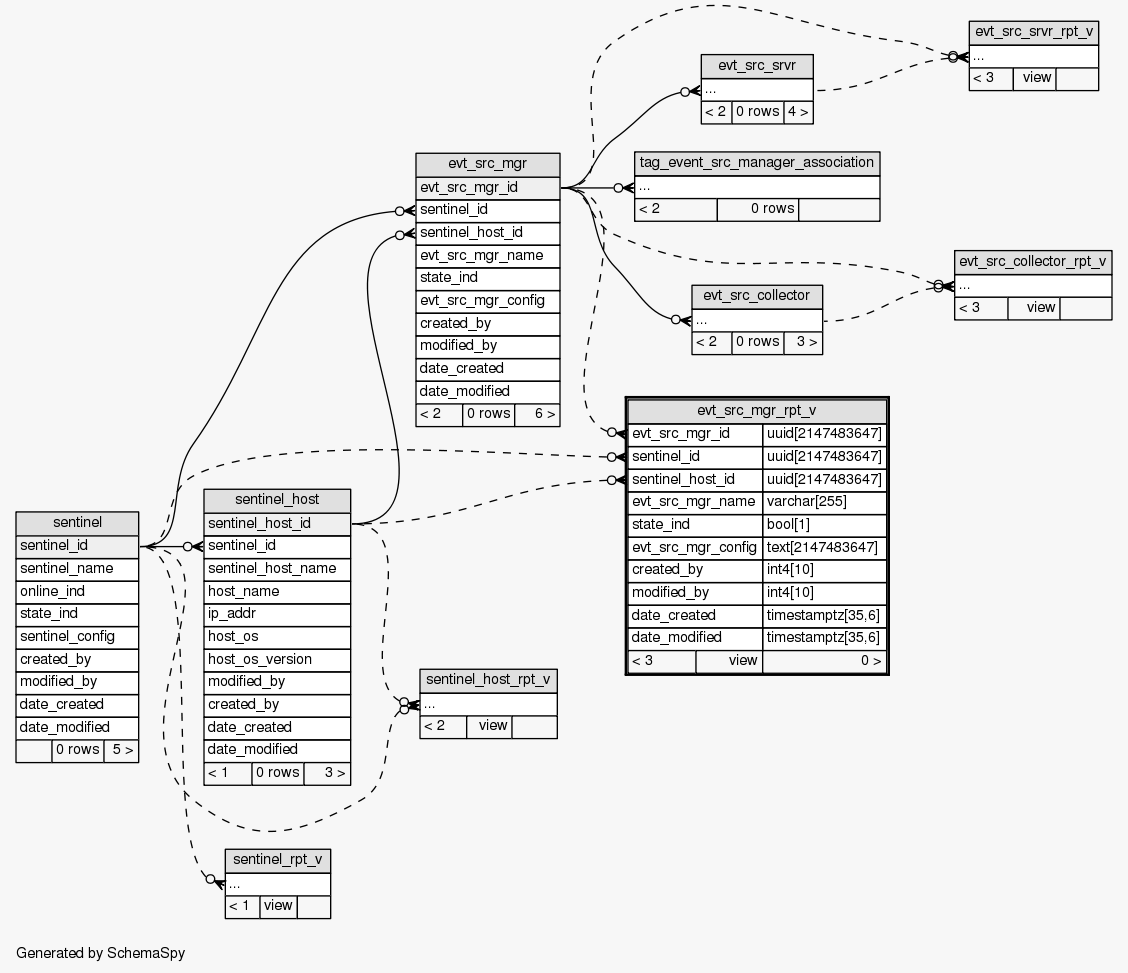

Close relationships:
