22.7 Viewing DSTrace Log Files

The DSTrace view is an editor that enables you to view DSTrace log files. These log files contain information (including XML data) about the Metadirectory.

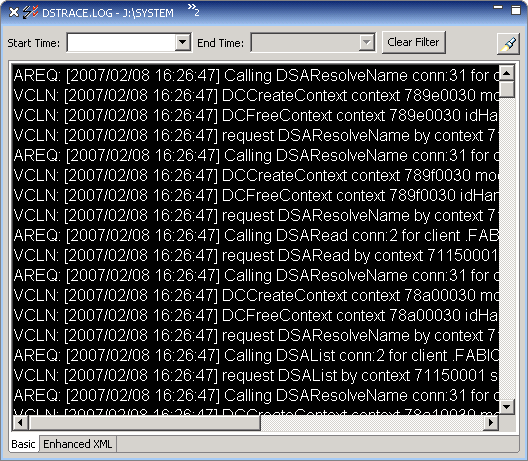

Figure 22-14 The DS Trace View

The DSTrace view is not the same as the Trace view, which provides information about Designer functionality. For information on the Trace view, see Section 24.3.13, Trace.

To view DSTrace log files:

  1. Import the DSTrace files into the Resources folder and name them with a .log extension.

  2. Click Tools > DS Trace View.

    The DS Trace View option

  3. Navigate to and open a DSTrace log file.

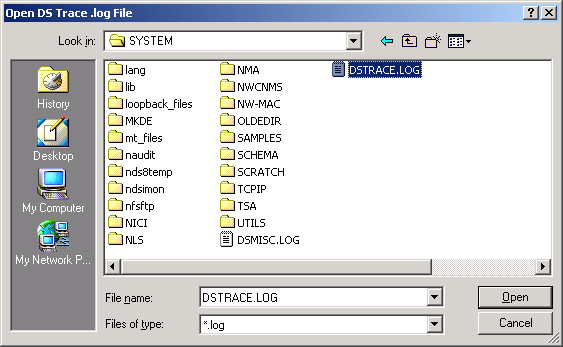

    An example files sytem

    You can also import the DSTrace file into the Resources folder, name it with a .log extension, then double-click the .log file.

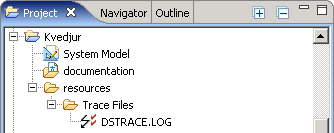

    The resource folder

    To import these log files, drag them from the file browser or the desktop and drop them in the resources folder.

  4. Filter the trace based on date and time.

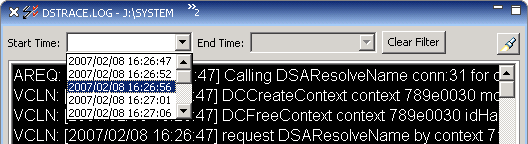

    The DS Trace view filter

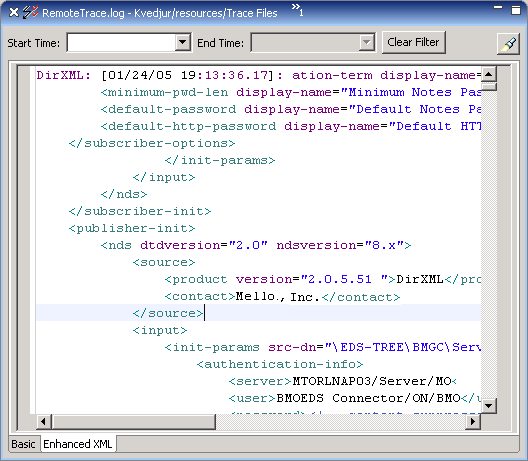

  5. View XML information in the . log file by clicking Enhanced XML.

    Designer highlights the XML code. This feature can be helpful when you want to see the various parts of the XML documents in the trace file.

  6. Search for content that you are interested in.

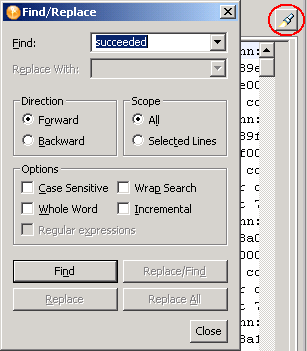

    The Find/Replace dialog box

    To quickly find information in the . log file, click the Search icon, enter text in the Find field, then click Find.

    You can also access the Find/Replace dialog box by pressing Ctrl+F or by clicking Edit > Find/Replace.
