21.4 Attaching Schema or DTD

Both Source and Tree editors allow you to attach an XML schema or DTD from the toolbar.

To choose from a list of entries in the XML catalog, choose an entry from XML Catalog Entry list.

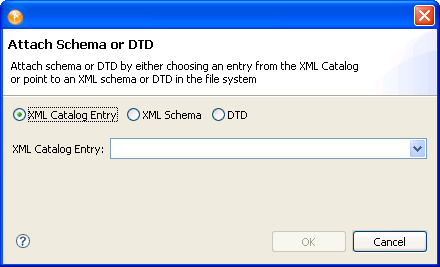

Figure 21-3 Attach an XML Catalog

To reference an XML schema on disk, choose XML Schema, then specify the namespace URI and the file’s disk location.

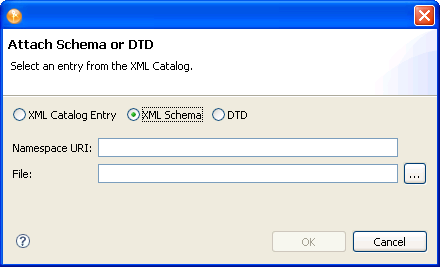

Figure 21-4 Attach an XML Schema

To reference a DTD on disk, choose DTD, then specify the Public and System IDs and the file’s disk location:

Figure 21-5 Attach a DTD
