6.2 When You Want to Create an Additional Project

  1. Right-click in the Project view pane, then click New > Identity Manager Project.

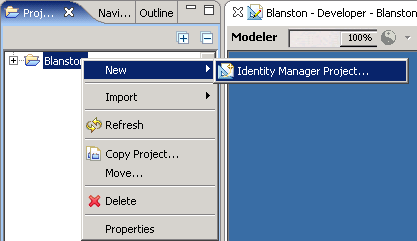

    Adding an Identity Manager project
  2. In the Identity Manager Project Wizard, name the project.

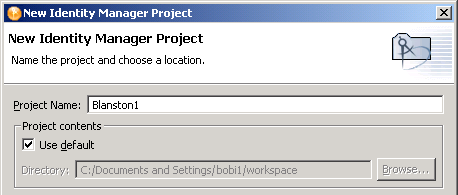

    Name the project

    Designer stores the project in a local directory. You specified this directory when you installed Designer. Typically, this default directory is c:\Documents and Settings\Username\workspace. To specify a different directory, deselect Use Default, then browse to and select the desired directory.

  3. Click Finish.

    The project is stored is a directory structure with the project name as the initial directory containing files with a .proj and a .project extension. In this example, the project is stored in the c:\Documents and Settings\Novell User\workspace\Blanston1 directory on a Windows workstation.

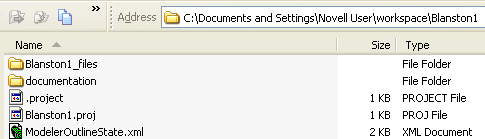

    Local directory structure on a Windows workstation

    The project name appears in the Project view. When you select the System Model icon under the project name, Designer opens the Modeler (an editor) for the new project.

    For information on saving a project, see “Saving” in Section 8.4.2, Tasks You Can Perform from the Project View.
