15.2 Using the Source Editor

The Source editor supports the following features:

Syntax highlighting.
Context-sensitive code completion based on DTD and XML schema.

The code completion is based on the existing content of the XML document if no DTD or XML schema is associated with the XML document. When code completion is activated and the XML document contains <root><a><b/></a><a></a></root>, then type the second <a>, the editor suggests that you add b as a child of the a element.
As-you-type validation. If the XML is invalid (for example, the > is removed from a tag), the editor indicates the error.
General text editing operations such as undo, redo, cut, copy, paste, select all.

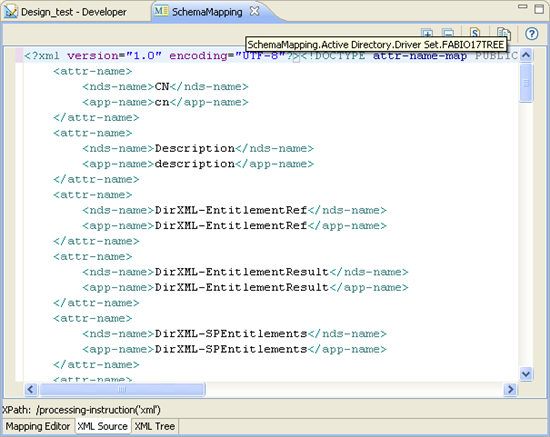

Figure 15-1 XML Source Editor

The XML Editor provides the following toolbar options:

Table 15-1 XML Editor Toolbar

Button	Description
	Expands all foldings (if code folding is enabled). You can enable or disable code folding in two ways; Selecting Windows > Preferences > General > Editors. Select Structured Editors. Select Enable Code Folding. In the Source editor, right-click in the left ruler to access the Folding submenu.
	Collapses all folding (if code folding is enabled)
	Attaches a schema. For more information on using this feature, see Section 15.4, Attaching a Schema or DTD.
	Shows help

The Source editor right-click menu contains these options:

Table 15-2 XML Editor Source Editor Right-Click Menu Options

Menu Choice	Description
Revert File
Cut, Copy, Paste, Undo, Save	Performs the common editor function.
Format	Document: Formats the entire document as specified in the preferences. Active elements: Formats only selected elements.
Clear Validation Errors	Clears reported validation errors from the Problems view.
Validate	Validates the XML document and shows errors in the Problems view.
Preferences	This is the same as setting preferences by using the Windows > Preferences option. For more information, see Section 15.5, Setting XML Editor Preferences.

To save XML updates, do one of the following:

Click Save in the Designer toolbar.
Right-click in the XML Editor, then select Save.
Press Ctrl+S.

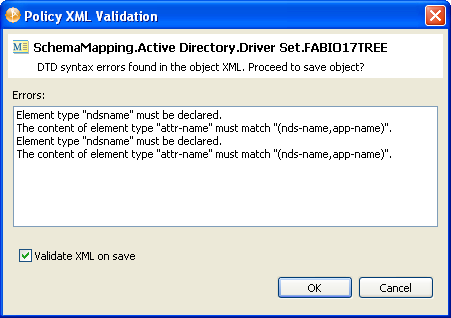

When saving, the XML Editor automatically checks the XML to make sure it conforms to the appropriate DTD (Filter DTD, DirXML Script DTD, etc.) It saves non-conforming XML only if you explicitly instruct it to do so. For information about Identity Manager DTDs, see the Identity Manager 3.6 DTD Reference.

NOTE:You can disable notification of DTD errors in Designer Preferences. To do so, select Window > Preferences, then select Novell > Identity Manager > Configuration in the left-side navigation. Uncheck Prompt for errors when validating XML against DTD for all Policy Editors.
