Driver Set Overview

Some enhancements are visible on the Overview page, accessible in iManager by clicking DirXML Management > Overview.

• A small icon next to the driver icon indicates the current startup setting for the driver.
  • Manual
  • Automatic
  • Disabled

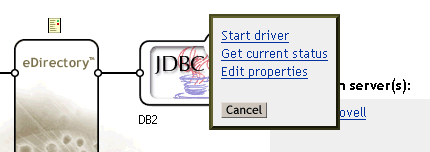

• You can go to the driver property pages directly from the Driver Set Overview page. In the upper right corner of the driver icon, click the icon that indicates whether the driver is running. In the menu that pops up, click Edit Properties, as shown in the following figure.


  Previously you were required to click the driver icon on the Driver Set Overview page, then click the driver icon again on the Driver Overview page.

• A button labeled Information lets you view the version number of the DirXML engine and the drivers running on each server. See Versioning Discovery Tool.
• For drivers that are set up to run the same driver instance on multiple servers, the following enhancements were added:
  • The Copy Data option lets you copy driver parameters (such as per-replica attributes of the driver) from one server to another, by choosing the source and destination server and which kinds of parameters to copy.

    To access this option, click the upper right corner of the driver icon in the Driver Set Overview, on the portion of the icon that indicates whether the driver is running. If the this driver instance is running on multiple servers, the Copy Data option is listed in the popup menu, as shown in the following figure:

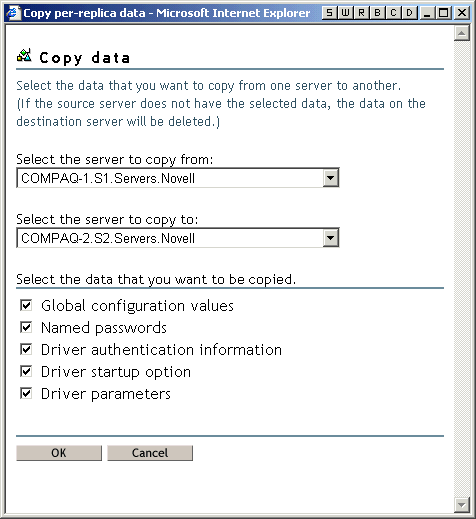

    When you click Copy Data, the following page appears, where you can specify the data that you want to be copied.




  • In the driver property pages, each section that is server-specific lets you click the server name to switch between servers. This feature allows you to see how the driver parameters are set on each server.

• If the server where the driver set is running has a version of the DirXML engine that is out of date, a warning is displayed on the Driver Set Overview page.

  For example, if you update the iManager plug-ins before updating the DirXML engine, the following warning is displayed: "The version of DirXML on this server is out-of-date. some features provided in the interface might not be supported by the version of the DirXML Engine on this server."

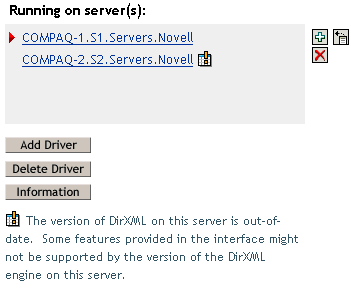

  An example is shown in the following figure.
