Dataflow for the SAP Driver
When you set up Novell Nsure Resources, you will select drivers for one HR system, one messaging system, and one or more account systems. A fundamental characteristic of this solution is that the HR system is the primary originator of employee data, so most of the information starts there and moves to the Workforce Tree where the data can be accessed by other systems. Of course, there are some cases where data does not originate in the HR system; an obvious example is an e-mail address. As you would expect, this attribute is generated and owned by the messaging system.
Following are detailed diagrams that show the data flow for shared attributes in each system.

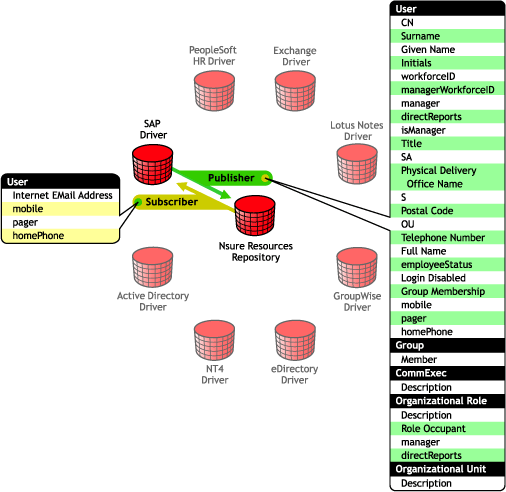

Figure 3
Dataflow for the SAP Driver

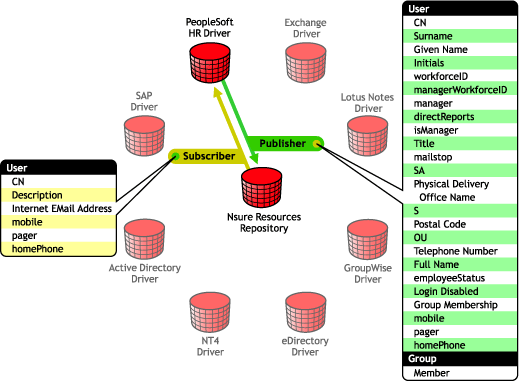

Figure 4
Dataflow for the PeopleSoft Driver

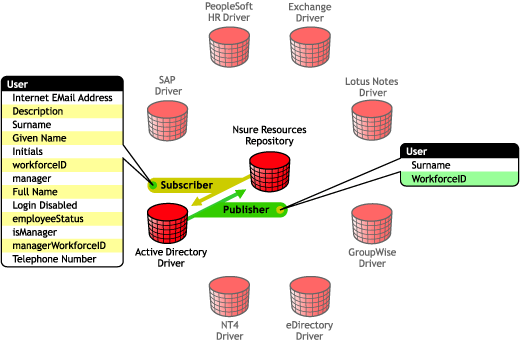

Figure 5
Dataflow for the Active Directory Driver
Figure 6
Dataflow for the NT Domain Driver

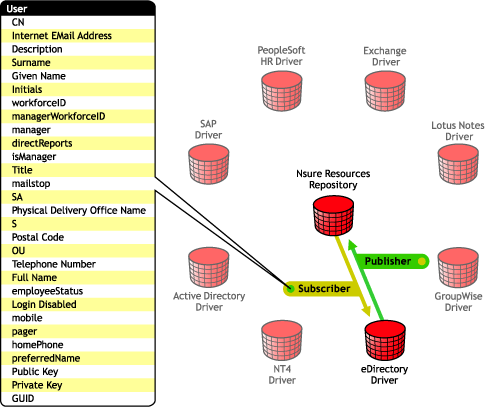

Figure 7
Dataflow for the eDirectory Driver

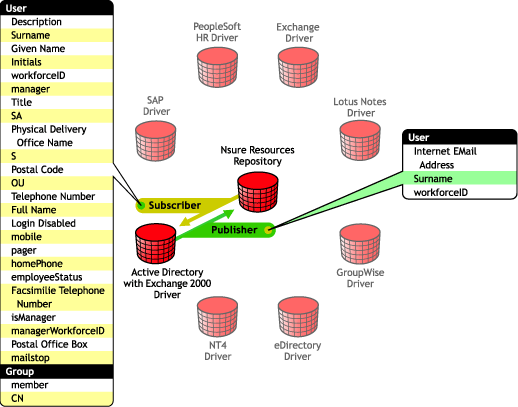

Figure 8
Dataflow for the Active Directory with Exchange 2000 Driver

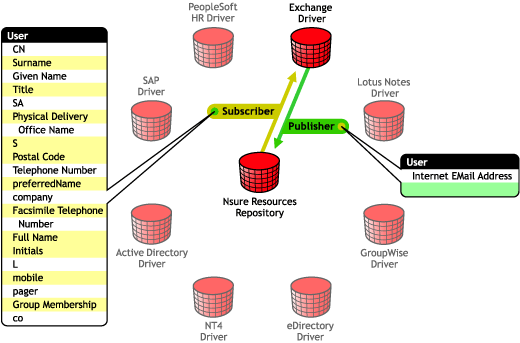

Figure 9
Dataflow for the Exchange 5.5 Driver

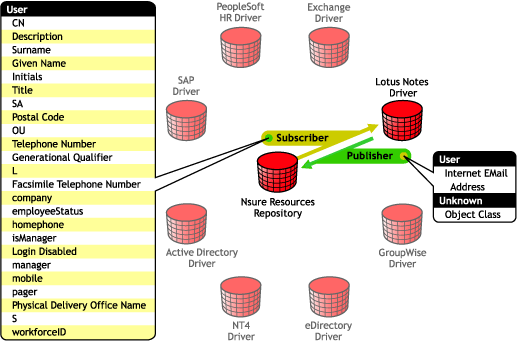

Figure 10
Dataflow for the Lotus Notes Driver
Figure 11
Dataflow for the GroupWise Driver
