3.21 GWAVA Reveal

Reveal is a powerful tool for examining the contents of a live GroupWise system and a Reload System. Authorized administrators may access any mailbox without special rights. To enable auditing security, GWAVA Reveal 1.1 or higher provides an option to produce auditing information and send it to the Redline Control Center automatically.

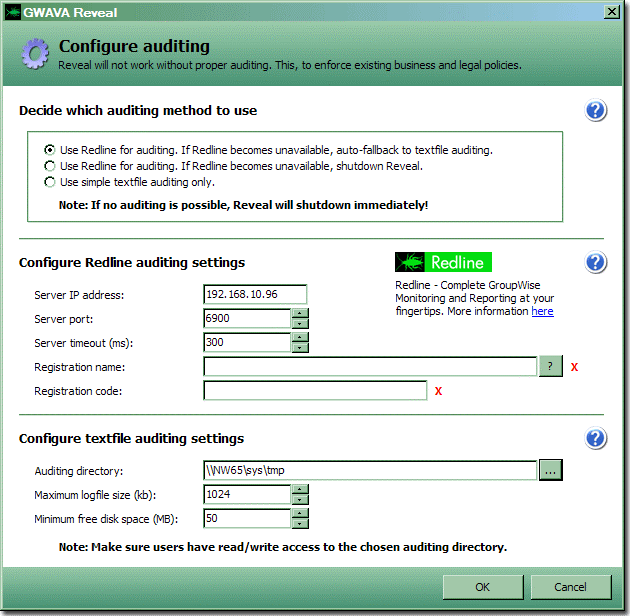

After Redline is installed, in Reveal, go to Administration/Auditing Settings, and click the Lookup button. Provide the path to RLCENTER.CONF file of the server running the Redline Control Center. This is typically in /opt/beginfinite/redline/conf and should automatically populate the rest of the page. Otherwise one must manually enter information such as the Redline Control Center IP Address and Port, as well the Registration Name and Code for Redline.

Reveal can automatically communicate directly with the Redline Control Center. It does not need to use a Redline Agent at all.
