The GroupWise service provider receives GroupWise requests from the WebAccess Application and communicates with the WebAccess Agent to fill the requests.

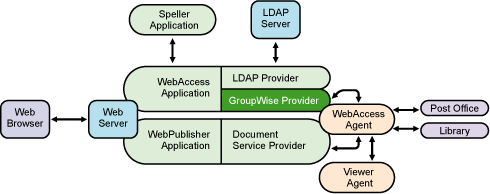

Figure 54-6 GroupWise Service Provider
The GroupWise service provider is installed and configured when you install the WebAccess Application to a Web server. The WebAccess installation program creates a Novell eDirectory object for the GroupWise service provider in the same context as the WebAccess Application. The object is named GroupWiseProvider. Using ConsoleOne, you can modify the GroupWiseProvider object to:
Change how long the service provider waits for the WebAccess Agent to return information for a Busy Search. Users can perform Busy Searches when scheduling appointments to ensure that the appointment’s recipients are available at the scheduled time. The default timeout interval is 1 minute.
Define the WebAccess Agents that the service provider contacts to fill GroupWise requests. If your GroupWise system includes more than one WebAccess Agent, you can use this feature to provide failover support.
To modify the GroupWise service provider’s configuration:
In ConsoleOne, right-click the GroupWise service provider object (GroupWiseProvider), then click.
NOTE:The GroupWise service provider object is not available in the GroupWise View. To locate the GroupWise service provider object, you must use the Console View.
Clickto display the Environment page.
Choose from the following options:
Timeout for Busy Search: Select how long you want the GroupWise service provider to wait for the WebAccess Agent to return information when a user performs a Busy Search.
Configuration File: The WebAccess Agent’s configuration file (commgr.cfg) contains the agent’s IP address and the encryption key required by the GroupWise service provider to communicate with the WebAccess Agent. By default, the commgr.cfg file is stored in the WebAccess Application’s home directory, which varies by platform.
sys:\Novell\GroupWise\WebAccess on the Web server
c:\Novell\GroupWise\WebAccess on the Web server
In general, you should not need to change this setting. However, if you have multiple WebAccess Agents in your GroupWise system and you are optimizing WebAccess to provide greater scalability and availability, you might need to change the setting. For information, see Section 53.3, Configuring Redirection and Failover Support.
GroupWise WebAccess Agents: This list displays the WebAccess Agents the GroupWise service provider can communicate with when attempting to complete a request. If the first one listed is unavailable, the GroupWise service provider attempts to use the second, third, fourth, and so on until it is successful. This provides failover support and ensures greater availability for your WebAccess users. For more information about optimizing availability, see Section 53.3, Configuring Redirection and Failover Support.
The list must include at least one WebAccess Agent.
Choose from the following options to manage the WebAccess Agents:
Add: Clickto browse for and select the WebAccess Agent object, then click to add it to the list.
Edit: Select a WebAccess Agent in the list, then clickto edit the WebAccess Agent’s object properties.
Up: Select a WebAccess Agent from the list, then clickto move it up in the list.
Down: Select a WebAccess Agent from the list, then clickto move it down in the list.
Delete: Select a WebAccess Agent in the list, then clickto remove it from the list.
Customize Settings in XML: Click this button to launch the XML editor. You can use the editor to add, modify, or delete GroupWise service provider settings.
Clickto save the changes.
