A.5 WebAccess Agent Port Numbers

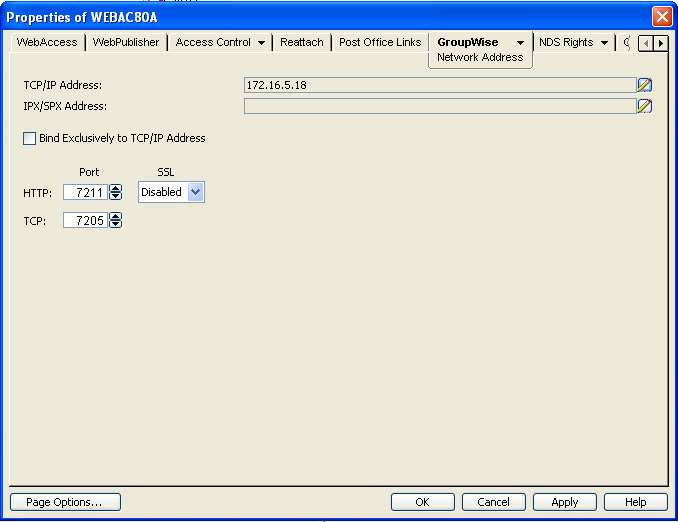

Figure A-4 WebAccess Agent Network Address property page in ConsoleOne
|
Protocol |
Default Port Number |
SSL Available? |
Description |
|---|---|---|---|
|
HTTP |
7211 |
Yes |
Hypertext Transfer Protocol WebAccess Agent Web console |
|
TCP |
7205 |
No |
Transmission Control Protocol Communication between the WebAccess Agent and the WebAccess Application Section 54.1.5, Changing the WebAccess Agent’s Network Address or Port Numbers |
|
SNMP |
161 |
No |
Simple Network Management Protocol Communication between the WebAccess Agent and an SNMP management console |
