2.0 Structure and Function

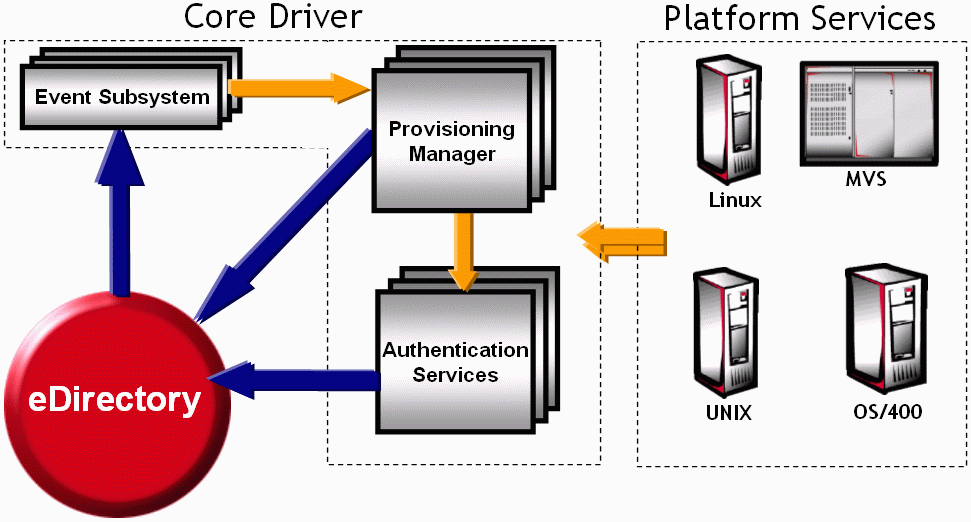

There are two structural divisions of the Novell® Identity Manager Fan-Out driver: the core driver and Platform Services.

The core driver provides Authentication Services and information about changes to users and groups to target platforms that have been configured to run Platform Services.

The driver obtains and stores the information it uses in eDirectory™. To access eDirectory, the core driver uses LDAP Services for eDirectory.

For ease of management, target platforms that share the same user and group population are grouped together into Platform Sets.

Communication between the driver components occurs throuth TCP/IP and is encrypted.

The driver includes a secure Web interface that works as an iManager plug-in for administration and monitoring.

The core driver records significant occurrences in an Audit Log, and each component writes an Operational Log. Each core driver component maintains performance statistics, which can be viewed in the Web interface.

The Fan-Out driver includes an application programming interface (API). This allows programmers to extend applications to use Authentication Services, which allows them to take advantage of your existing eDirectory constructs.

Binary files, configuration files, and other files used by the driver components are stored in the ASAM directory in the file system of the host server.

Additional Resources

For details about configuring and administering the Fan-Out driver, see the Core Driver Administration Guide, the Platform Services Planning Guide and Reference, and any of the following administration guides, depending on your platform needs:

For more information about the API, see the API Developer Guide.

For explanations of the messages written to logs by the Fan-Out driver components, see the Messages Reference.

For information about eDirectory, see the Novell eDirectory Administration Guide.

Section Topics

The topics in this section describe the structure and function of the Identity Manager Fan-Out driver.
