3.2 Ports Requirements

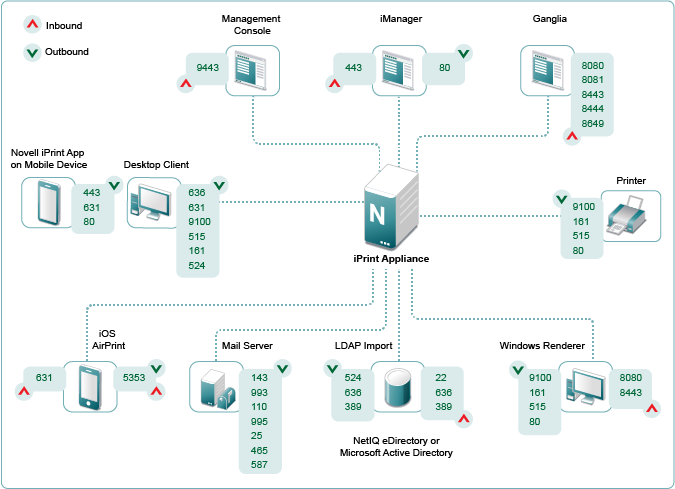

Figure 3-1 iPrint Appliance Ports Map
Desktop Clients: Open the ports on your clients to communicate with iPrint Appliance, printers and LDAP sources.
|
Operating System |
Connection Type |
Port |
Protocols |
Description |
|---|---|---|---|---|
|
Windows |
|
|
|
|
|
Outbound |
9443 |
|
The release portal uses this port to communicate with iPrint Appliance |
|
Outbound |
636 |
LDAPS (Secure) |
To communicate with LDAP sources |
|
Outbound |
631 |
IPP |
To communicate with the printers |
|
|
9100 |
RAW |
|
|
|
515 |
LPR |
|
|
|
161 |
SNMP |
|
|
|
524 |
|
To communicate with eDirectory using DClient |
|
Mac |
|
|
|
|
|
Outbound |
9443 |
|
The release portal uses this port to communicate with iPrint Appliance |
|
Outbound |
631 |
IPP |
To communicate with the printers |
|
|
9100 |
RAW |
|
|
|
515 |
LPR |
Mobile Apps: Open ports on your mobile devices to communicate with iPrint Appliance and printers.
|
Operating System |
Connection Type |
Port |
Protocols |
Description |
|---|---|---|---|---|
|
iOS, Android, Windows, Blackberry |
Outbound |
443 |
HTTPS |
To communicate with iPrint Appliance and with the printers |
|
Outbound |
631 |
IPP |
To communicate with the printers |
|
|
80 |
TCP |
Remote Renderer: Open the ports for various communications between iPrint Appliance and printers.
|
Operating System |
Connection Type |
Port |
Protocols |
Description |
|---|---|---|---|---|
|
Windows |
Inbound |
8080 |
HTTP |
To allow Management Console and Mobile server to connect with the renderer |
|
Inbound |
8443 |
HTTPS |
To allow secure communication |
|
Outbound |
9100 |
RAW |
To communicate with the printers |
|
|
161 |
SNMP |
|
|
|
515 |
LPR |
iPrint Appliance: Open the ports for various communications between iPrint Appliance and printers.
|
Tasks |
Connection Type |
Port |
Protocols |
Description |
|---|---|---|---|---|
|
Printers |
Outbound |
9100 |
RAW |
To communicate with the printers |
|
161 |
SNMP |
||
|
515 |
LPR |
||
|
|
80 |
TCP |
|
|
AirPrint |
Inbound |
631 |
IPP |
To perform AirPrint jobs |
|
|
443 |
HTTPS |
|
|
|
5353 |
mDNS/UDP |
|
|
Outbound |
5353 |
mDNS/UDP |
To advertise iPrint printers as iOS AirPrint printers |
|
Desktop Clients |
Inbound |
515 |
LPR |
To allow Desktop clients to communicate with the appliance |
|
LDAP Import |
Outbound |
524 |
NCP (Dclient) |
To perform LDAP import and authenticate users to the configured LDAP sources |
|
|
636 |
LDAPS (Secure) |
|
|
|
389 |
LDAP (Non-Secure) |
|
|
Inbound |
22 |
SSH |
To allow access to appliance to perform LDAP Import |
|
|
636 |
LDAPS (Secure) |
|
|
|
389 |
LDAP (Non-Secure) |
|
|
Management |
Inbound |
9443 |
|
To allow access to iPrint Management Console |
|
Inbound/ Outbound |
443 |
HTTPS |
To perform iManager tasks |
|
80 |
TCP |
||
|
Mail Server |
Outbound |
143 |
IMAP |
To communicate with the Mail server. |
|
|
993 |
IMAPS (Secure) |
|
|
|
110 |
POP3 |
|
|
|
995 |
POP3 |
|
|
|
25 |
SMTP |
|
|
|
465 |
SMTP (Secure via SSL) |
|
|
|
587 |
SMTP (Secure via TLS) |
|
|
Ganglia Configuration |
Inbound |
8080 (blocked) |
|
To configure Ganglia |
|
|
8081 |
|
|
|
|
8443 |
|
|
|
|
8444 |
|
|
|
|
8649 |
|
NOTE:For ports required by the 3rd party products, you must refer their documentation.
