3.2 Ports Requirements

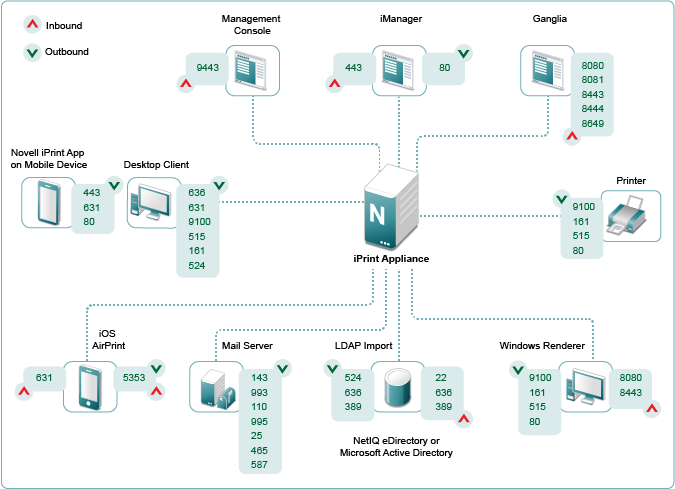

Figure 3-1 iPrint Appliance Ports Map

Desktop Clients: Open the ports on your clients to communicate with iPrint Appliance, printers and LDAP sources.

Operating System

Connection Type

Port

Protocols

Description

Windows

Outbound

636

LDAPS (Secure)

To communicate with LDAP sources



Outbound

631

IPP

To communicate with the printers





9100

RAW





515

LPR





161

SNMP





524



To communicate with eDirectory using DClient

Linux

Outbound

631

IPP

To communicate with the printers





9100

RAW





515

LPR

Mac

Outbound

631

IPP

To communicate with the printers





9100

RAW





515

LPR

Mobile Apps: Open ports on your mobile devices to communicate with iPrint Appliance and printers.

Operating System

Connection Type

Port

Protocols

Description

iOS, Android, Windows, Blackberry

Outbound

443

HTTPS

To communicate with iPrint Appliance and with the printers



Outbound

631

IPP

To communicate with the printers





80

TCP

Remote Renderer: Open the ports for various communications between iPrint Appliance and printers.

Operating System

Connection Type

Port

Protocols

Description

Windows

Inbound

8080

HTTP

To allow Management Console and Mobile server to connect with the renderer



Inbound

8443

HTTPS

To allow secure communication



Outbound

9100

RAW

To communicate with the printers





161

SNMP





515

LPR

iPrint Appliance: Open the ports for various communications between iPrint Appliance and printers.

Tasks

Connection Type

Port

Protocols

Description

Printers

Outbound

9100

RAW

To communicate with the printers



161

SNMP



515

LPR





80

TCP

AirPrint

Inbound

631

IPP

To perform AirPrint jobs





5353

mDNS/UDP



Outbound

5353

mDNS/UDP

To advertise iPrint printers as iOS AirPrint printers

Desktop Clients

Inbound

515

LPR

To allow Desktop clients to communicate with the appliance

LDAP Import

Outbound

524

NCP (Dclient)

To perform LDAP import and authenticate users to the configured LDAP sources





636

LDAPS (Secure)





389

LDAP (Non-Secure)



Inbound

22

SSH

To allow access to appliance to perform LDAP Import





636

LDAPS (Secure)





389

LDAP (Non-Secure)

Management

Inbound

9443



To allow access to iPrint Management Console



Inbound/ Outbound

443

HTTPS

To perform iManager tasks



80

TCP

Mail Server

Outbound

143

IMAP

To communicate with the Mail server.





993

IMAPS (Secure)





110

POP3





995

POP3





25

SMTP





465

SMTP (Secure via SSL)





587

SMTP (Secure via TLS)

Ganglia Configuration

Inbound

8080 (blocked)



To configure Ganglia





8081







8443







8444







8649



NOTE:For ports required by the 3rd party products, you must refer their documentation.
