16.3 How Filr Makes LDAP Users and Groups Visible

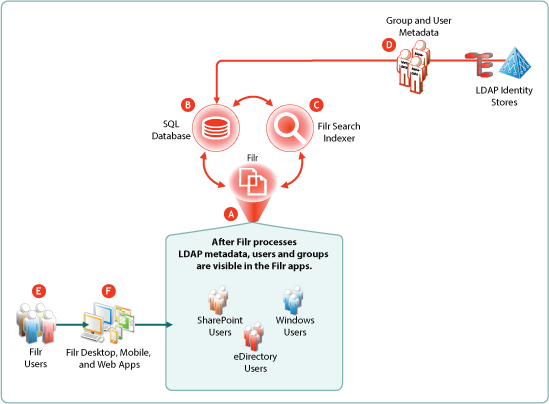

Figure 16-3 Filr Processes Metadata to LDAP Users and Groups Visible to Filr Users

Letter

Details

Filr directs and coordinates the processing of metadata for users and groups.

Filr retrieves and stores the metadata in the SQL appliance or server.

After metadata retrieval, Filr directs the Filr Search (Lucene) indexer to process it for viewing in the Filr apps.

Organization Users and groups are either synchronized from the LDAP identity stores (shown) or created directly in Filr (not shown).

After the metadata is processed for users and groups, Filr users can see them in the Filr apps (Letter G).

Filr apps for desktops, mobile devices, and web access let Filr users interact with the users and groups that are made accessible through Filr.
