7.1 Viewing General Status Information

To view information about the current status of all J2EE Agents.

  1. In the Administration Console, click Access Manager > J2EE Agents.

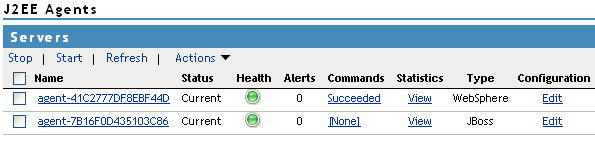

    The table contains general information about each installed agent.

    Column

    Description

    Name

    Displays a list of all the J2EE Agents that can be managed from this console. Click the link of a particular agent to view or modify its general details. For more information, see Section 7.5, Viewing Platform Information.

    Status

    Indicates the configuration status of the agent. Possible states are pending, update, and current.

    • Current indicates that all configuration changes have been applied.

    • Update indicates that a configuration change has been made, but not applied. Click this link to apply the changes. You can select to have the agent read its complete configuration file (all configuration). When the embedded service provider (ESP) logging settings have been modified on the Identity Server, the update logging settings option is available.

    • Pending indicates that the agent is processing a configuration change, but has not completed the process.

    Health

    Indicates whether the J2EE Agent is functional. Click the icon to view additional information about the operational status of an agent. For more information, see Section 7.6, Managing the Health of an Agent.

    Alerts

    Indicates whether any alerts have been sent. If the alert count is non-zero, click the link for additional information. For more information, see Section 7.7, Managing Alerts.

    Commands

    Indicates whether any commands are pending. Click the link to view more information. For more information, see Section 7.8, Viewing the Status of Recent Commands.

    Statistics

    Provides a link to the statistic pages. For more information, see Section 7.9, Viewing Statistics.

    Type

    Indicates the type of agent: JBoss, WebLogic, or WebSphere.

    Configuration

    Provides a link to the configuration page. For more information, see Section 4.0, Configuring the Basic Features of the J2EE Agent.

  2. To view information about one of the displayed options, click the link or the icon.

  3. To update the list of agents and their health status, click Refresh.
