Attachmate Personal Client

This section shows the specific configuration required for Attachmate Personal Edition to work with SecureLogin. These settings are required for the script and communication to work.

1. Define a session.

   You typically use a wizard to do this. The wizard defines the terminal type and the Host address that will be contacted.

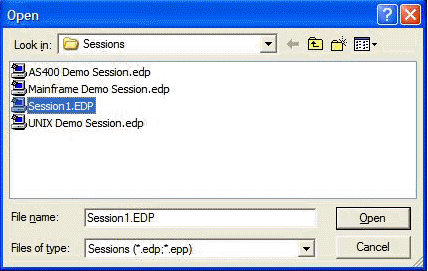

2. Save the session as a session file, in this case Session1.

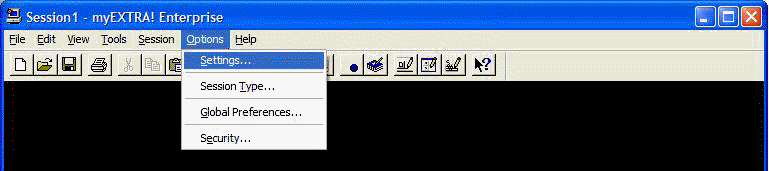

3. Within the live Attachmate session, select Options > Global Preferences.

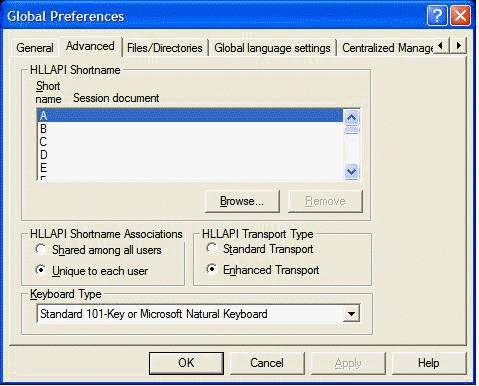

   The Advanced Tab displays a list of the HLLAPI short names.




   Link the session identifier A with the active session in the emulator. This tells the HLLAPI to insert any commands into the correct session identifier.

4. Using Browse, identify the session correctly as the current running session, in this case Session1 again.

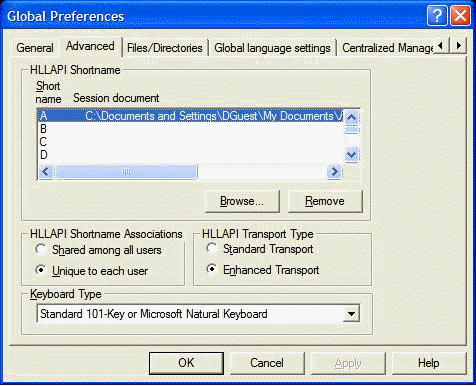

5. Verify the session document by using the Advanced tab within Global Preferences.




   After you save this session file, the Secure Login TLAUNCH system is able to interact with the emulator correctly.

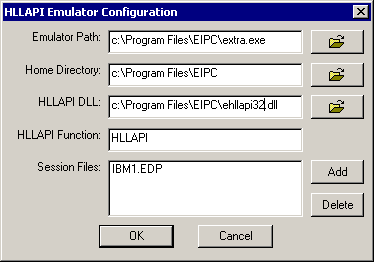

HLLAPI Configuration

• Emulator Path

  The path to the extra.exe file.

• Home Directory

  The home directory of the emulator.

• HLLAPI DLL

  The path to the ehlapi32.dll file.

• HLLAPI Function

  HLLAPI

• Session Files

  The path to the session file that you want to use.

Script

WaitForText "ogin:"
Type $Username
Type @E
WaitForText "assword:"
Type $Password
Type @E
