4.5 Upgrading NSMAdmin

NOTE:The system requirements and prerequisite tasks have not changed significantly since you installed the Novell Storage Manager 3.x NSMAdmin. Therefore, they are excluded from this section. If you want to review them, refer to Section 5.7, Installing and Configuring NSMAdmin.

  1. At the root of the NSM_3_1_1.iso image, click the install.html file.

  2. Select Novell eDirectory.

  3. Click NSMAdmin-3.1.1-xxxx.msi.

  4. When asked if you want to save or run the file, save the file to the hard drive of a computer where you will administer Novell Storage Manager.

  5. From the saved location, launch the NSMAdmin installation file.

  6. When you are asked if you want to run this file, click Run.

    An Introduction page appears in the NSMAdmin Installation Wizard.

  7. Read the text and click Next.

  8. Accept the license terms and click Next.

  9. Accept the installation path or indicate a new path by using the Browse button.

    To review possible locations, you can click Disk Usage to see all available volumes with disk size and disk availability data.

  10. Click Next.

  11. If you want to create a shortcut on the desktop, leave the Create shortcut on Desktop check box selected and click Install.

    NSMAdmin is installed.

  12. Leave the Launch NSMAdmin 3 check box selected and click Finish.

    NSMAdmin is launched.

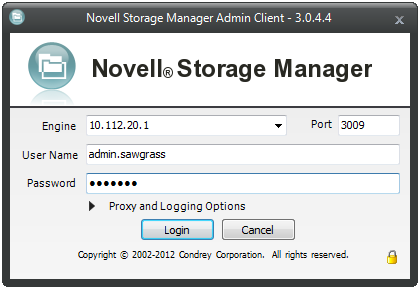

  13. In the Engine field, specify the DNS name or IP address.

  14. In the Port field, specify the secure port number.

    The default setting is 3009.

  15. Specify the username and password.

    The user must be a member of the NSMAdmins group to be able to log in.

  16. Click Login.

    If you are unable to log in, your proxy settings might be preventing you from doing so. Until you enter a proxy exception in your proxy settings, you can click Proxy and Logging Options, select Do not use a Proxy, then click Login.

    The Setup Wizard welcome page appears.

  17. Read the text on the page and click Next.

  18. Do one of the following:

    • Click Browse to locate and select the path to the license file.

    • Click Get a License to obtain an evaluation license.

  19. Click Next.

  20. The following page appears, asking if you want to extend the Novell eDirectory schema.

    If you plan to manage collaborative storage or auxiliary user storage, you must extend the eDirectory schema.

  21. Click Next.

    The following page appears:

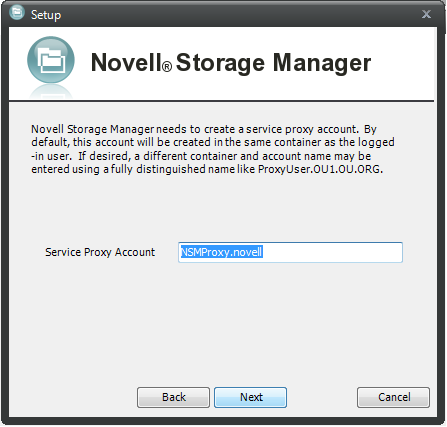

  22. Accept the account name that will be created and click Next.

  23. Accept or modify the NSM Administrators group name, leave the Add current user to NSM Administrators Group check box selected, then click Next.

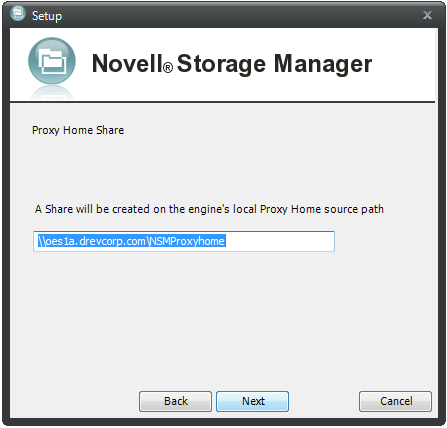

  24. When you are notified that a Proxy Home share will be created on the engine’s local Proxy Home source path, click Next.

    The following page appears:

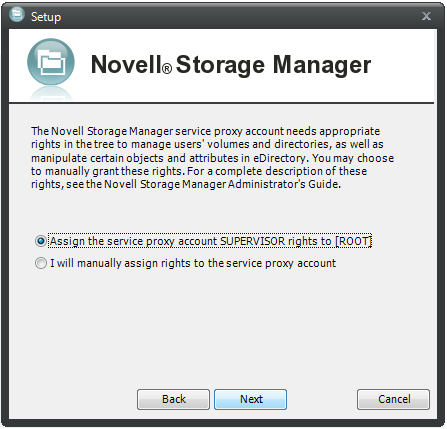

  25. Assign the NSMProxy account Supervisor rights to the root of the directory tree by accepting the default option.

    If you choose to set the rights manually, click the corresponding option.

  26. Accept the name of the NSM Administrators group as NSMAdmins and leave the Add current user to the ANM Administrators Group check box selected, then click Next.

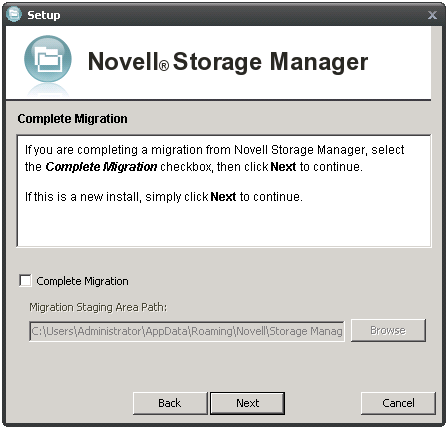

  27. Because this is a new installation and not a migration from an earlier version of Novell Storage Manager, click Next.

    You are notified that Novell Storage Manager needs to initialize its engine and susbsystems.

  28. Click Next.

    The following page appears:

  29. Accept the default path or indicate a new path for the proxy home share, then click Next.

    The proxy home share is the location that managed items, such as home directories, temporarily reference when they are going through a move operation.

    The following page appears:

  30. Click Next.

    You are informed that Novell Storage Manager needs to initialize the NSM Engine and its subsystems.

  31. Click Next.

  32. (Conditional) If you want to now run NSMAdmin, enter your password and click Login.
