5.2 Configuring the NSM Engine

  1. At the same terminal, type nsmengine-config and press Enter.

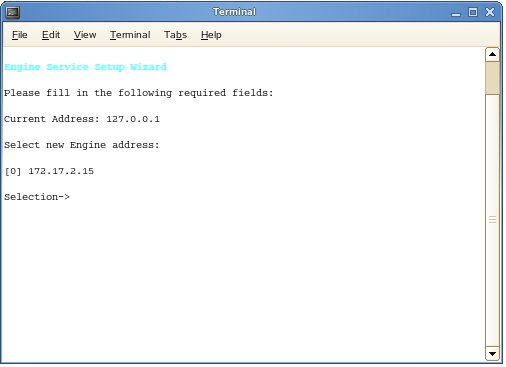

    The console is updated and looks similar to the one below.

    If your server has multiple NIC cards, multiple IP address options are listed.

  2. Specify the IP address of the server hosting the NSM Engine and press Enter.

    If the displayed IP address is correct, you can press 0.

  3. When the HTTP Port [0] option appears, type 0 and press Enter.

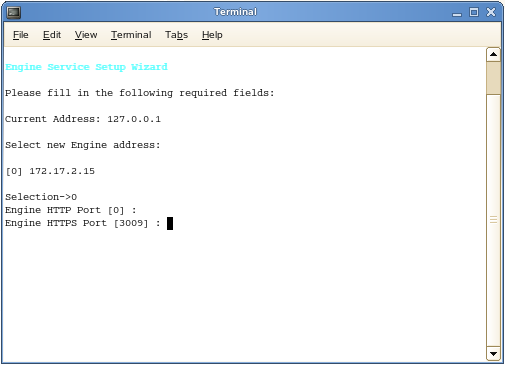

    The console is updated and looks similar to the one below:

  4. Unless there is a conflict, accept the default HTTPS port number of 3009 by pressing Enter. If you need to use another port number, provide the new port number.

  5. When you are asked if you want to start the service, click Y for yes.

    This starts the NSM Engine.

  6. Press Enter to continue.

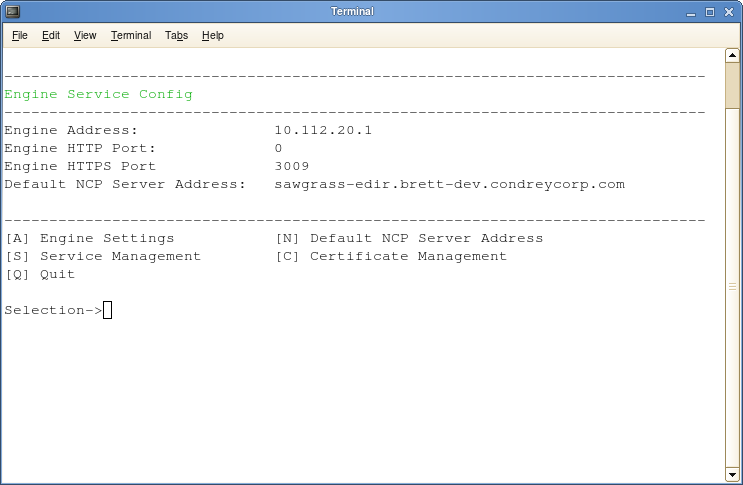

    The console is updated and looks similar to the one below.

    At this point, you can navigate through the menu to see how to perform management tasks on the NSM Engine when necessary.

  7. Press q to quit.
