F.1 Configuring H.100 Bus Termination

H.100 boards are connected to one another with an H.100 bus cable. The two boards located at either end of the H.100 bus must have bus termination enabled, as shown in the following illustration. Bus termination is controlled by a DIP switch as explained below.

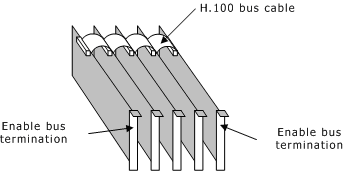

Figure F-1 H.100 Bus Termination
