Creating a Simple Workstation Image Object

Use the following steps to create a simple Workstation Image object.

  1. On your ZENworks for Desktops Windows 2000 Server, start ConsoleOne®.

  2. In ConsoleOne, browse to the .Images.IST.Corp.DA container.

  3. Right-click the .Images.IST.Corp.DA container > click New > Object > Workstation Image > OK.

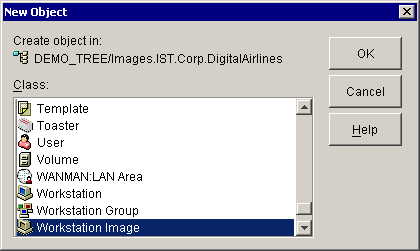

    Screen shot of the New Object dialog box in eDirectory.

  4. In the New Workstation Image window's Name field, enter Windows 2000 Pro > enable the Define Additional Properties check box > click OK.

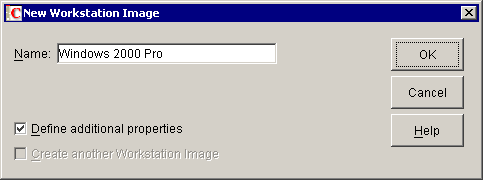

    Screen shot of the New Workstation Image dialog box in ConsoleOne.

  5. In the Properties of Windows 2000 Pro dialog box, click the browse button at the far right of the Base Image File field.

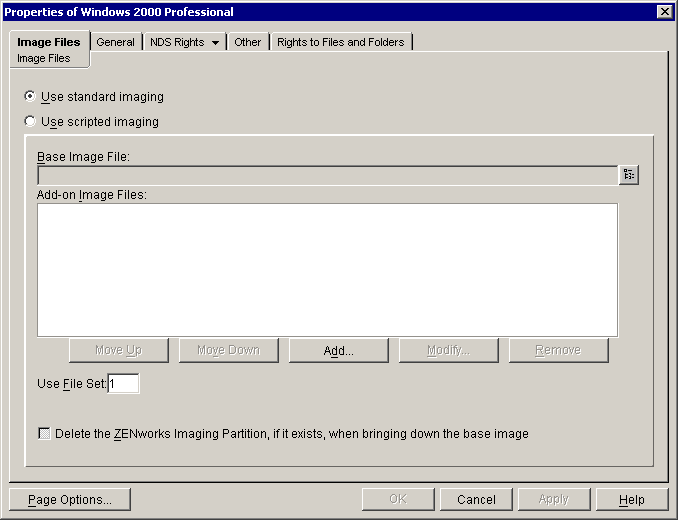

    Screen shot of the Properties of Windows 2000 Professional dialog box.

  6. In the Image File Location dialog box, browse to find your server (.DA-02.Servers.IST.Corp.DA) in the Server field.

  7. In the Path field, type D:\images\w2kpro.zmg.

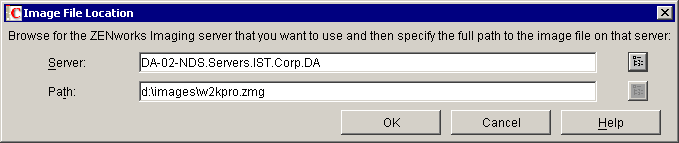

    Screen shot of the Image File Location dialog box.

    NOTE:  Make sure that this path is valid. Open the D:\IMAGES folder and verify the filename. This image file was created in Manual Workstation Imaging .

  8. Click OK > OK.
