After configuring ZENworks Reporting, you can reconfigure the settings.
To reconfigure the ZENworks Reporting settings:
On the ZENworks Reporting Appliance home page, click.
Click thetab and reconfigure the required settings.
Clickto remint the Internal certificate, if the configured Certificate Authority (CA) is Internal.
Clickto change the configured CA. Based on the External CA type, specify the details.
Clickto see the certificate details.
This page enables you to add or edit domains. To edit configured domain, click on the name. You can choose the latest version or the earlier version of the domain or change the datasource details for that domain.

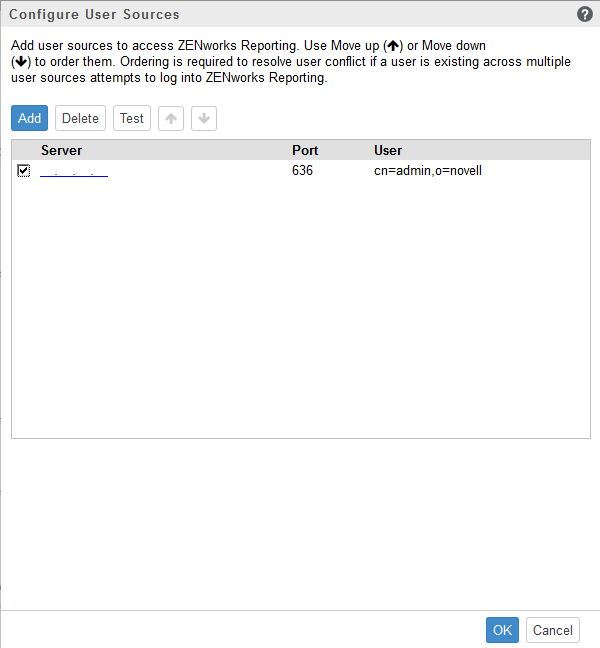

To add or edit multiple user sources.

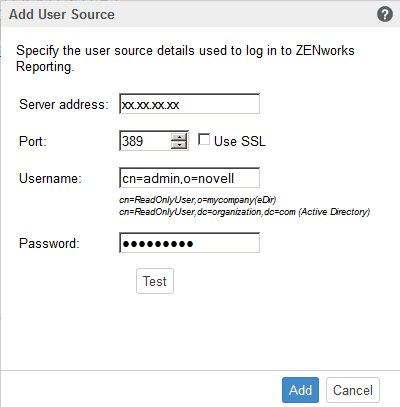

Clickto add a user source, specify the following details:
Server Address: Specify the Fully Qualified Domain Name (FQDN) or IP address of the User Source, which is used for user authentication.
Port: The default port value is displayed based on the selected SSL. The default SSL port is 636 and the default non-SSL port is 389. If the user source is configured with a different port, other than the above mentioned default ports, then the port must be updated accordingly.
Username: ZENworks Reporting server needs read-only access to the LDAP directory to authenticate every login attempt. The credentials of this user is used to get read-only access.
Specify the username in distinguished name (DN) format. For example:
Novell eDirectory: cn=ReadOnlyUser,o=mycompany
Microsoft Active Directory: cn=ReadOnlyUser,cn=users,dc=organization,dc=com
After configuration, if the credentials of this user is modified, ZENworks Reporting server will not be able to access the LDAP directory to authenticate login attempts. You must reconfigure ZENworks Reporting with the new credentials.
Active Directory allows you to create an organization unit (OU) and username with some special characters that are not accepted by the ZENworks Reporting Appliance (the appliance does not proceed further with the unsupported special characters). In this scenario, each of these special characters ; = , + < >" must be appended with a backslash “\”. For example, specify ReadOnly,User as ReadOnly\,User
Password: Specify the password of the first authentication user.
Clickto check whether the connection to the user source is established, then click .
Delete: Select the user source that you want to remove and click. If a user source is deleted, the users from that user sources cannot have access to ZENworks Reporting.
Test: Select the user source and clickto check whether the user source is accessible by ZENworks Reporting.
Move up: Select the user source that you want to step up in the list. This ensures that the user authentication for this user source is attempted with higher priority than those listed below.
Move down: Select the user source that you want to step down in the list. This ensures that the user authentication for this user source is attempted with lower priority than those listed above.

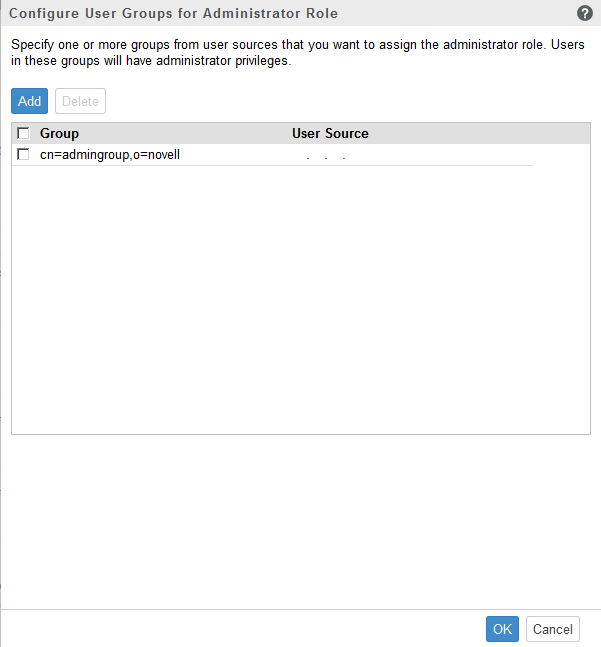

To add user groups from the configured user sources so as to get ZENworks Reporting administrator rights for the members of the those groups.

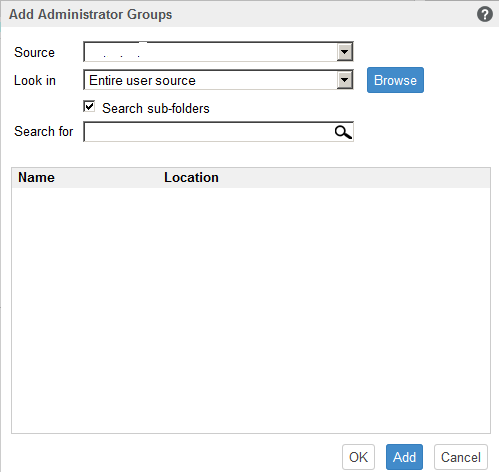

Clickand specify the following to add a LDAP group:
Source: Select a configured user source.
Look in: You can search the entire user source or clickto select a specific search container from the user source. Select the check box to search the container recursively.
Search for: Specify the name or a few characters that contain the name of the group you want to search and click the search icon. The names of the groups in the search container that contain the search text is displayed. You can select one or more groups from the search results, then clickto add user groups. Else, click if you want to configure them and continue.
Select one or more groups from the list and clickto revoke administrator privileges from the users belonging to these administrator groups.
Select thecheck box to select all the groups from the list and delete.
Only administrators have access permissions to ZENworks Reporting. The administrator privileges are:
View, run, schedule, create, save, and delete various ZENworks Reporting resources (For example: reports, views, domain, and data sources)
Assign access permissions (read, write, delete, execute, and administer) for various ZENworks Reporting resources to other users either at a role level or at a user level.
Manage ZENworks Reporting server settings
Delete users or roles
If you have selected a parent group (a group containing other sub-groups), note the following:
For Active Directory: Users in those sub-groups will not have administrator privileges. To assign these users administrator privileges, configure them individually.
For eDirectory: All the sub-groups will also have administrator privileges.
Click.Configure the outbound email server settings to send email notifications and reports.
To configure the outbound email server, specify the following:
Outbound email server: Specify the FQDN or IP address of the SMTP server. The SMTP server is used for mailing scheduled reports.
Port: Specify the port number on which the SMTP server is listening. The default port number is 25.
Use SSL/TLS: Select this option if the SMTP server is running on SSL or TLS.
Sender email address: Specify the sender email address from which all scheduled reports will be sent.
Requires Password: Clear the check box to configure the Outbound email server without authentication. Select the check box if you want the sender to use a password for authentication.
Password: Specify the sender's password.
To change password for ZENworks Reporting administrator.
The asterisk (*) indicates configuration modified.
For more information about the ZENworks Reporting Configuration page, see Section 6.1, ZENworks Reporting Configuration.
