Setting the Criteria for the View to Appear

You can set a criterion for the view to appear on selected levels. The setting includes the location of the view and the condition for the view to appear.

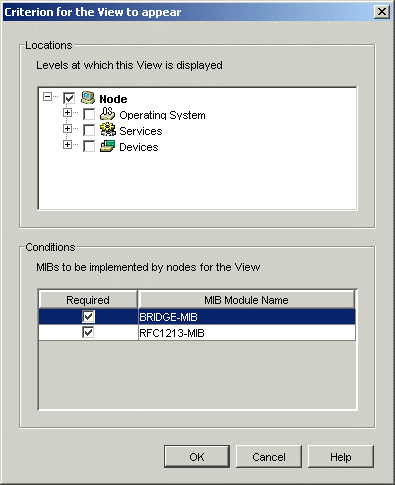

To set the criterion for the view to appear:

1. In the Basic Configuration dialog box, click Settings.




2. Specify the location where you want the view to appear.

   By default, the view you created appears at the node level.

3. Specify the condition for the view to appear.

   The MIBs implemented by the node and the MIB Module name of the node where you want the view to be displayed are displayed in this list. By default, all the MIB modules are deselected for implementing on the node. If it is necessary for the MIB module to be implemented on a node, select the MIB module. The MIBs listed here will be automatically discovered by Discovery.

4. Click OK.
