The Name-Value Pairs view component can consist of multiple name-value pairs.

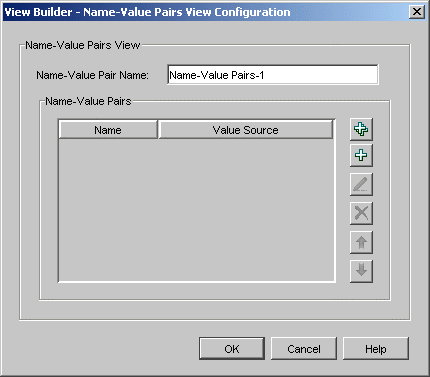

In the View Builder - Basic Configuration dialog box, click
> .Specify the
name.The
box contains a tabular list of all the view components you have created. The Name and the Value Source of the view component you created are displayed.Perform any of the following operations:
Add Multiple: To add multiple name-value pairs, click .
Add: To add a name-value pair, click .
Edit: To modify the information, select the name-value pair you want to edit from the Name-Value Pairs list, then click .
Delete: To delete a name-value pair, select it from the Name-Value Pairs list, then click .
Arrange Order: Use or to change the order of display.
In the Name-Value Pairs View Configuration dialog box, click .

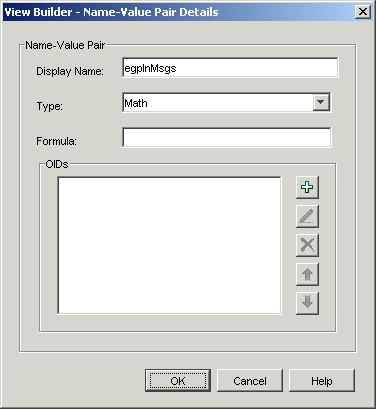

Specify the display name of the name-value pairs component.
From the drop-down list, select the type of the name-value pair.
You can select
type as , , or . If you select the type as , you must specify OIDs of types GAUGE or COUNTER. If you select the type as , you must specify a formula.Specifying a Formula: The OIDs listed in the table are numbered from 0,1,2 and so on. They are preceded by the data identifiers v, the current value of the OID; and h, indicating the previous value of the OID. You can use +, -, /, *, ^, () operands when you specify your formula. You can also use constants in your formula.
For example: Select the OIDs snmpInPkts (1.3.6.1.2.1.11.1) and snmpOutPkts (1.3.6.1.2.1.11.2). The formula can be v0+v1. The result will be the total number of SNMP packets handled by the transport service.
Click
.The name-value pair you created is displayed in Name-Value Pairs Configuration dialog box. Use the same procedure to add multiple name-value pairs, then Click
. The Name-Value Pair view component is displayed in the Basic Configuration dialog box.In the Basic Configuration dialog box, select the name-value pairs view component you want to modify, then click
.Modify the name-value pairs component details, then click
.In the Basic Configuration dialog box, select the name-value pairs view component you want to delete.
Click
.
