Table ESEC.ESECDBA.EVT_SRC_MGR Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
EVT_SRC_MGR_ID varchar2 108
EVT_SRC_COLLECTOR.EVT_SRC_MGR_ID EVT_SRC_COLLECTOR_MGR_ID_FK
EVT_SRC_COLLECTOR_RPT_V.EVT_SRC_MGR_ID Implied Constraint
EVT_SRC_MGR_RPT_V.EVT_SRC_MGR_ID Implied Constraint
EVT_SRC_SRVR.EVT_SRC_MGR_ID EVT_SRC_SRVR_MGR_ID_FK
EVT_SRC_SRVR_RPT_V.EVT_SRC_MGR_ID Implied Constraint
SENTINEL_ID varchar2 108
SENTINEL.SENTINEL_ID EVT_SRC_MGR_FK
EVT_SRC_MGR_NAME varchar2 765
SENTINEL_HOST_ID varchar2 108  √  null
SENTINEL_HOST.SENTINEL_HOST_ID EVT_SRC_MGR_SENT_HOST_FK
STATE_IND number 1
EVT_SRC_MGR_CONFIG clob 4000  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null

Table contained 1 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
EVT_SRC_MGR_ID Primary key Asc EVT_SRC_MGR_PK

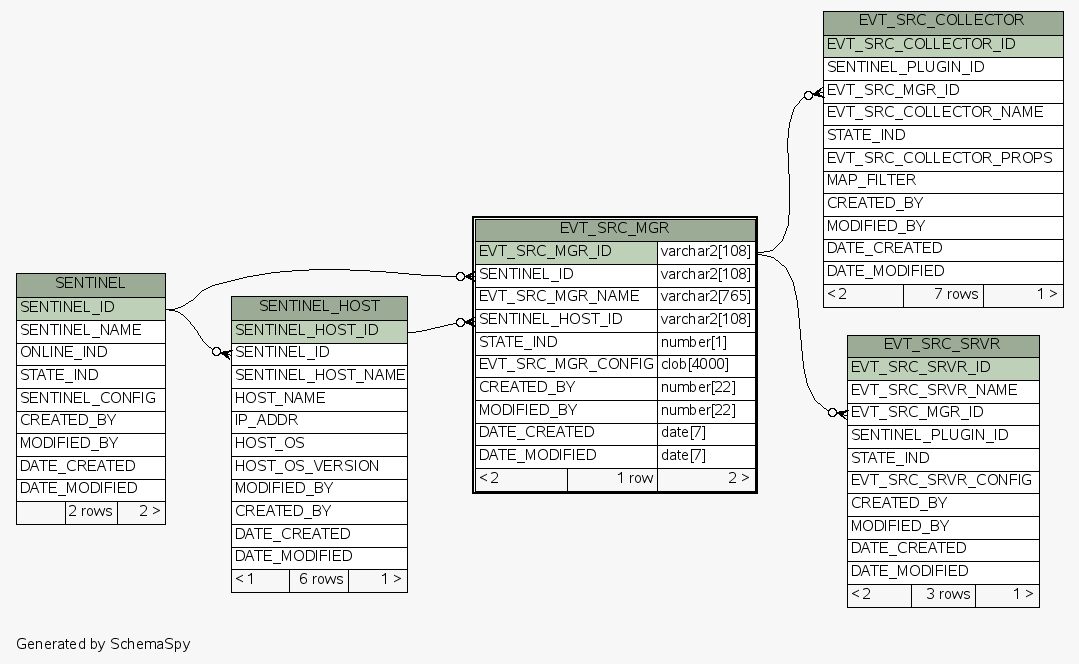

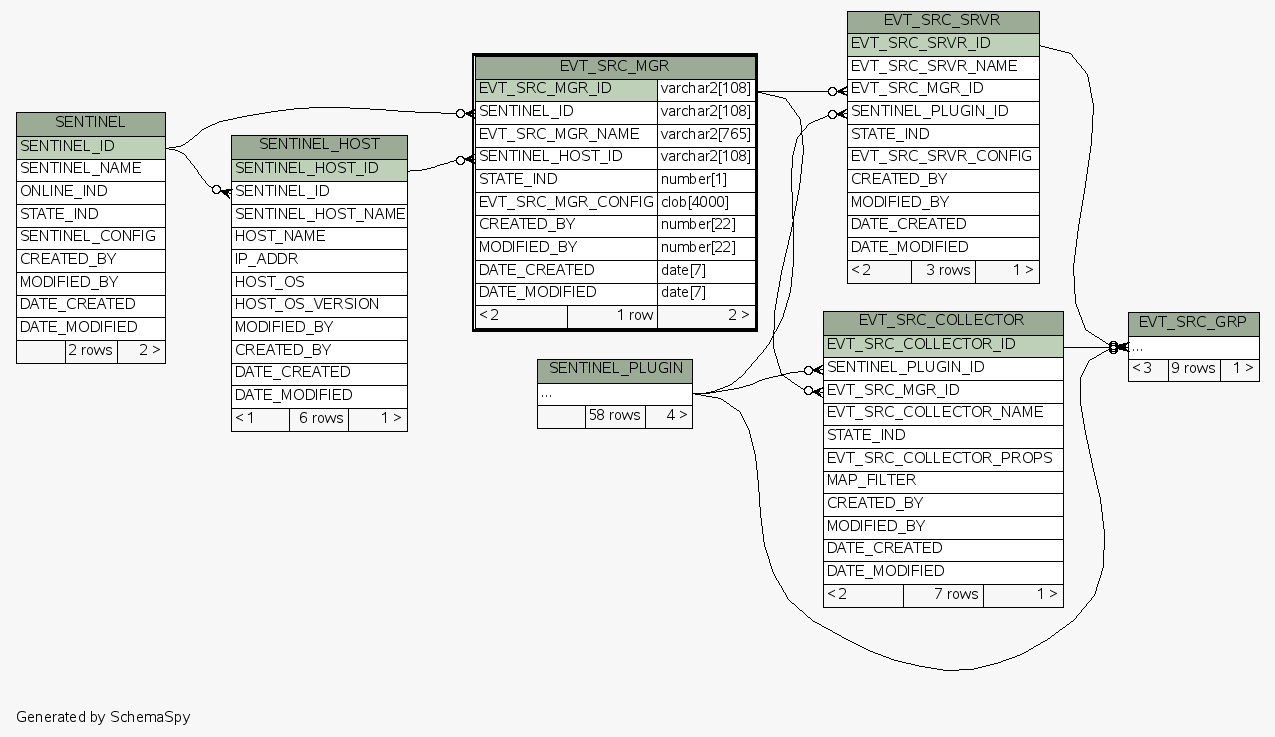

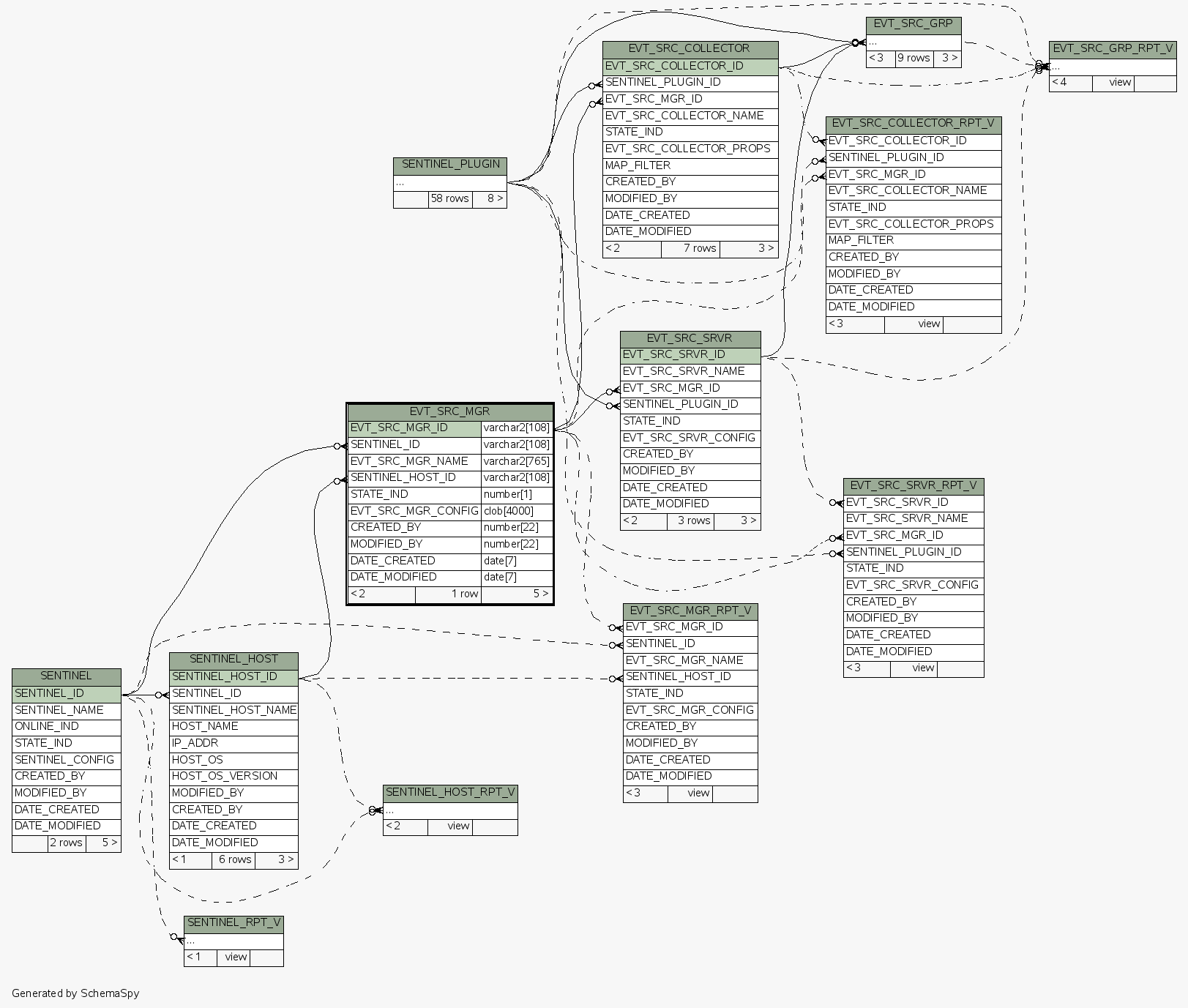

Close relationships  within of separation:
