Table ESEC.ESECDBA.PHYSICAL_ASSET Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
PHYSICAL_ASSET_ID varchar2 108
ASSET.PHYSICAL_ASSET_ID ASSET_FK1
ASSET_HOSTNAME.PHYSICAL_ASSET_ID Implied Constraint
ASSET_HOSTNAME_RPT_V.PHYSICAL_ASSET_ID Implied Constraint
ASSET_IP.PHYSICAL_ASSET_ID ASSET_IP_FK1
ASSET_IP_RPT_V.PHYSICAL_ASSET_ID Implied Constraint
ASSET_RPT_V.PHYSICAL_ASSET_ID Implied Constraint
PHYSICAL_ASSET_RPT_V.PHYSICAL_ASSET_ID Implied Constraint
CUST_ID number 22  √  null
CUST.CUST_ID Implied Constraint
HOST_NAME varchar2 765  √  null
IP_ADDR number 22  √  null
LOC_ID number 22
ASSET_LOC.LOC_ID PHYSICAL_ASSET_FK1
NETWORK_IDENTITY_ID number 22
NETWORK_IDENTITY_LKUP.NETWORK_IDENTITY_ID PHYSICAL_ASSET_FK2
MAC_ADDR varchar2 300  √  null
RACK_NUM varchar2 150  √  null
ROOM_NAME varchar2 300  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 56 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name Anomalies
PHYSICAL_ASSET_ID Primary key Asc PHYSICAL_ASSET_PK
HOST_NAME + IP_ADDR + CUST_ID Must be unique Asc/Asc/Asc PHYSICAL_ASSET_AK1 These unique columns are also nullable

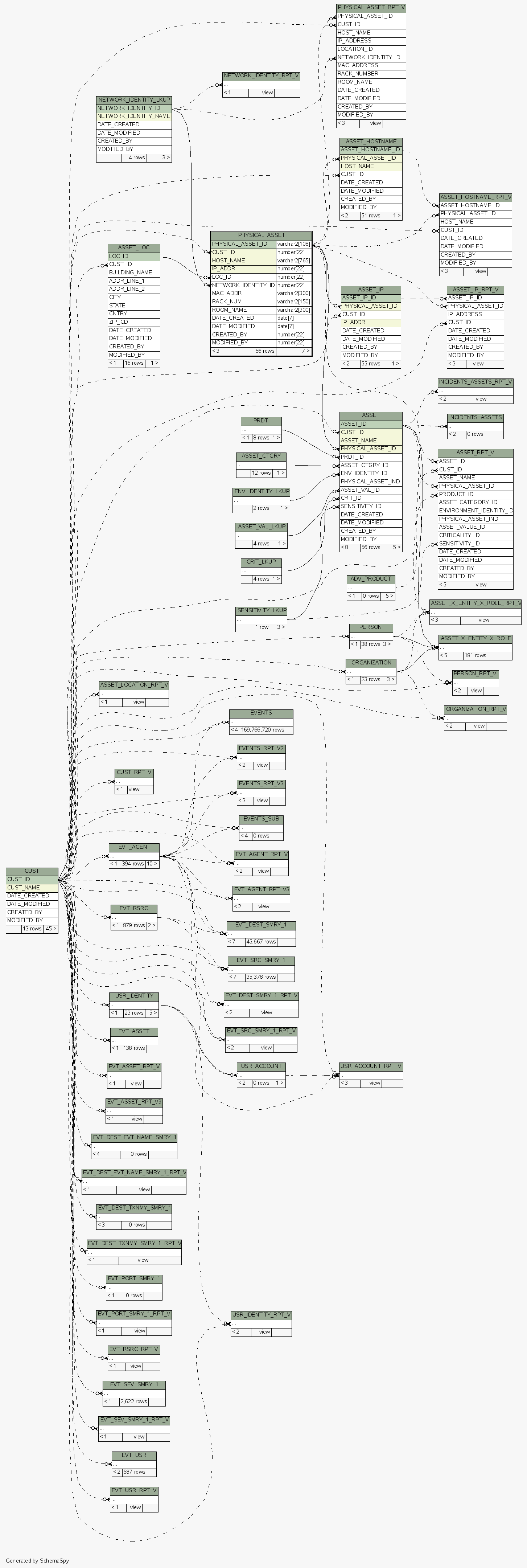

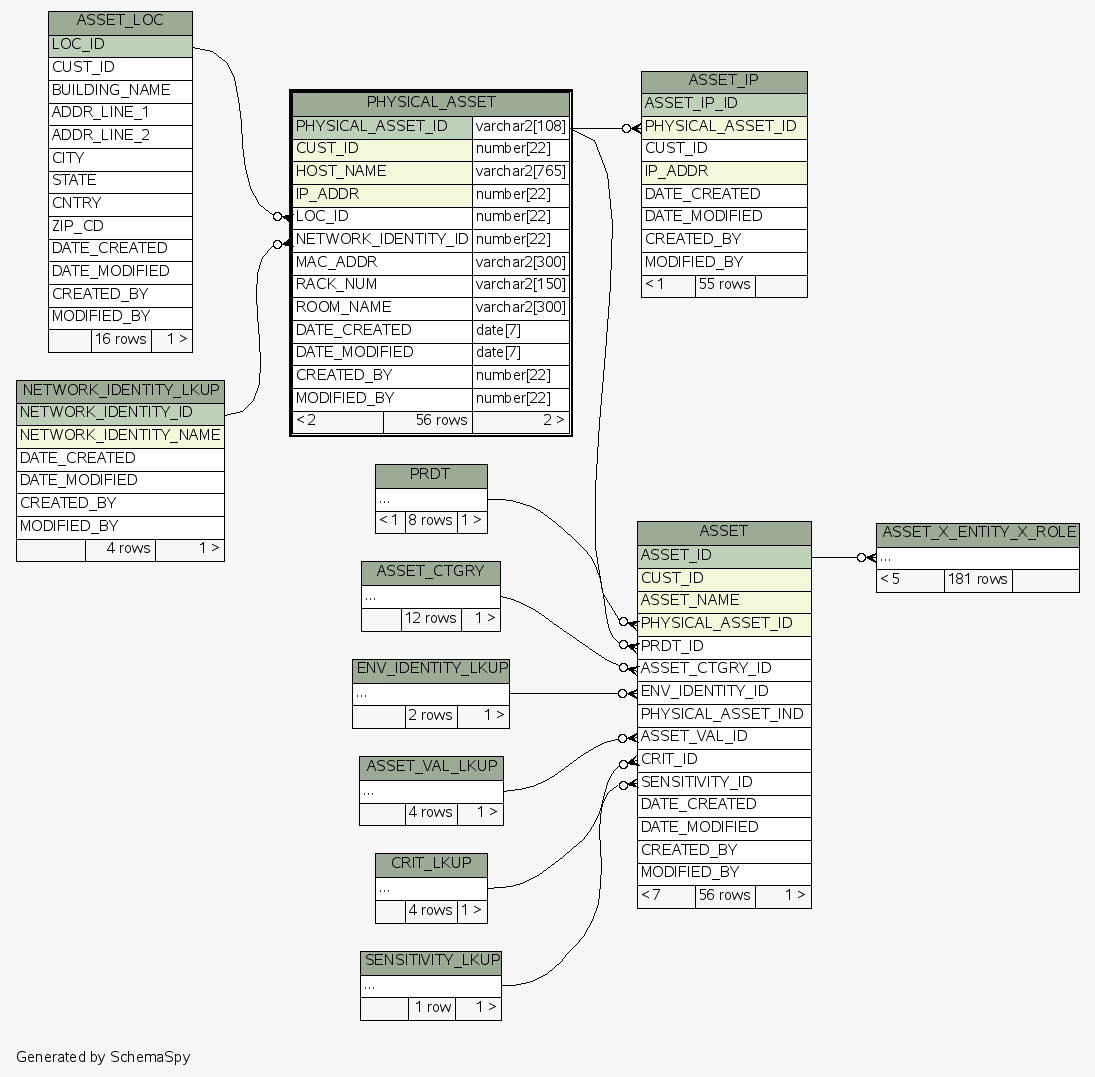

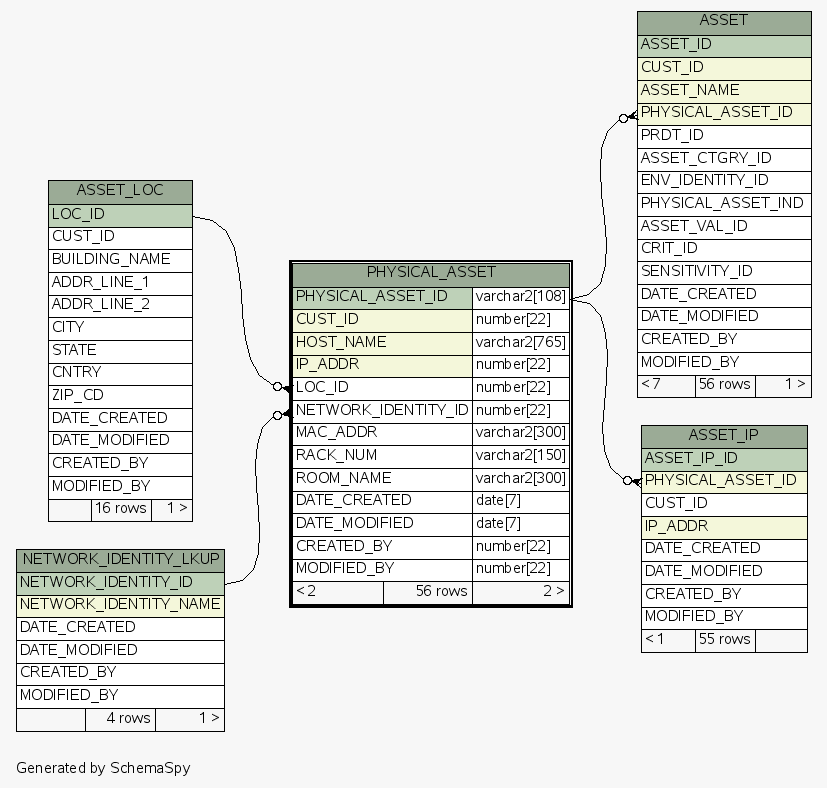

Close relationships  within of separation:
