Table ESEC.ESECDBA.USERS Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents
USR_ID number 22
NAME varchar2 192
CNT_ID number 22  √  null
CONTACTS
STT_ID number 22
STATES
DESCRIPTION varchar2 1536  √  null
DATE_CREATED date 7
DATE_MODIFIED date 7
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null
PERMISSIONS varchar2 4000  √  null
FILTER varchar2 384  √  null
UPPER_NAME varchar2 192  √  null
DOMAIN_AUTH_IND number 1  √  null

Table contained 2 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort
USR_ID Primary key Asc
CNT_ID Performance Asc

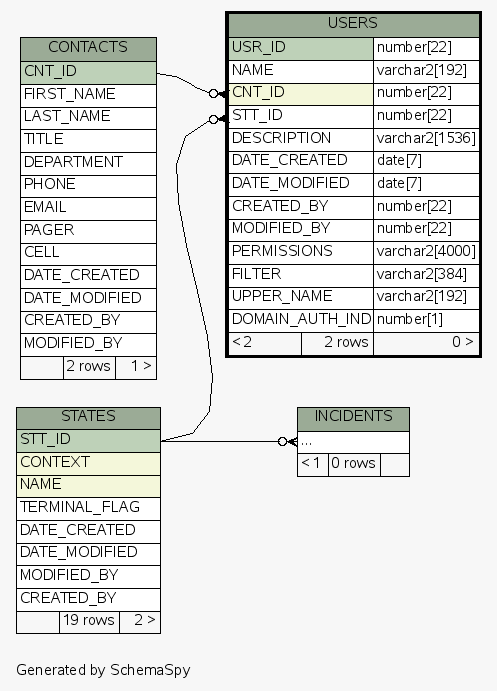

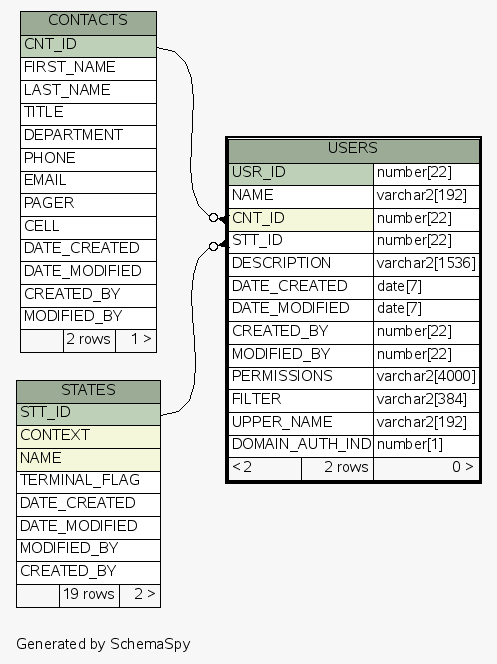

Close relationships  within of separation:
