Table SIEM.public.console_slms
The list of distributed search initiators configured in this system.

Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
slm_id uuid 2147483647
dist_search_config.slm_id Implied Constraint R
Unique identifier of SLM on console
display_name varchar 255 Display name on console
network_address varchar 255 Network address
port int4 10  √  null Port Number
certificate varchar 8192 Certificate details
console_metadata varchar 8192 Metadata of console
is_enabled bool 1  √  null True indicates Active
user_group_id uuid 2147483647  √  null
user_groups.group_id console_slms_user_group_id_fk N
Id of the user group
date_created timestamptz 35,6 Date the entry was created
date_modified timestamptz 35,6 Date the entry was modified
created_by int4 10  √  null User who created object
modified_by int4 10  √  null User who last modified object

Table contained 0 rows at Mon Mar 26 23:24 EDT 2012

Indexes:
Column(s) Type Sort Constraint Name
slm_id Primary key Asc console_slms_pk

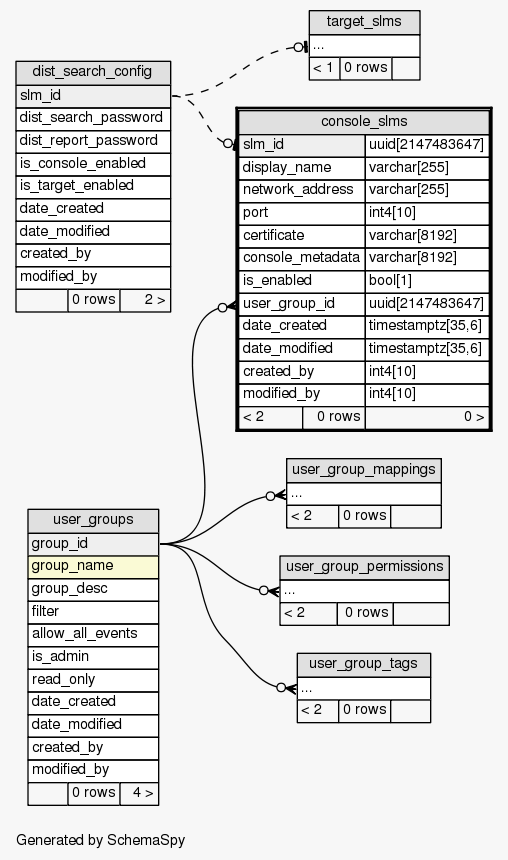

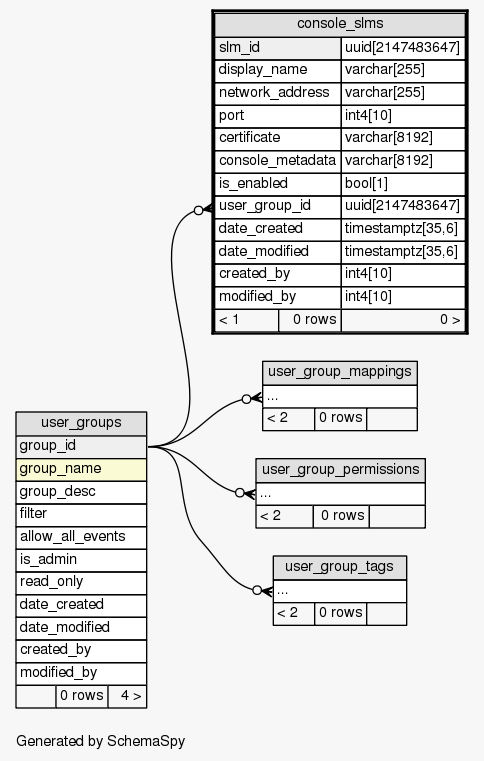

Close relationships  within of separation:
