Table SIEM.public.integrator_config
The configuration information for instances of integrators.

 Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
config_id uuid 2147483647
md_config.config_id Implied Constraint R
Integrator Configuration identifier
plugin_id uuid 2147483647
sentinel_plugin.sentinel_plugin_id integrator_config_plugin_fk R
Sentinel Plugin identifier
name varchar 255 Integrator Configuration name
type varchar 255 Integrator Configuration type
description varchar 4000  √  null Integrator Configuration description
integrator_properties text 2147483647  √  null Integrator Configuration properties in XML form
date_created timestamptz 35,6 Date the entry was created
date_modified timestamptz 35,6 Date the entry was modified
modified_by int4 10  √  null User who last modified object
created_by int4 10  √  null User who created object

Table contained 0 rows at Mon Mar 26 23:24 EDT 2012

Indexes:
Column(s) Type Sort Constraint Name
config_id Primary key Asc integrator_config_pk

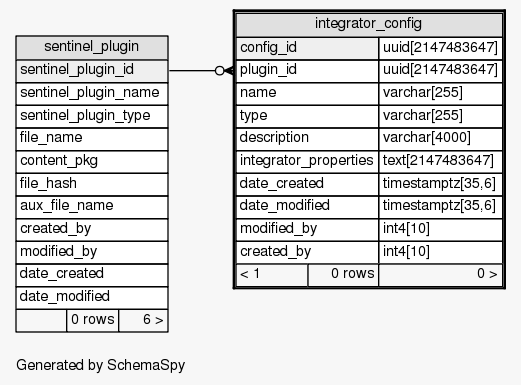

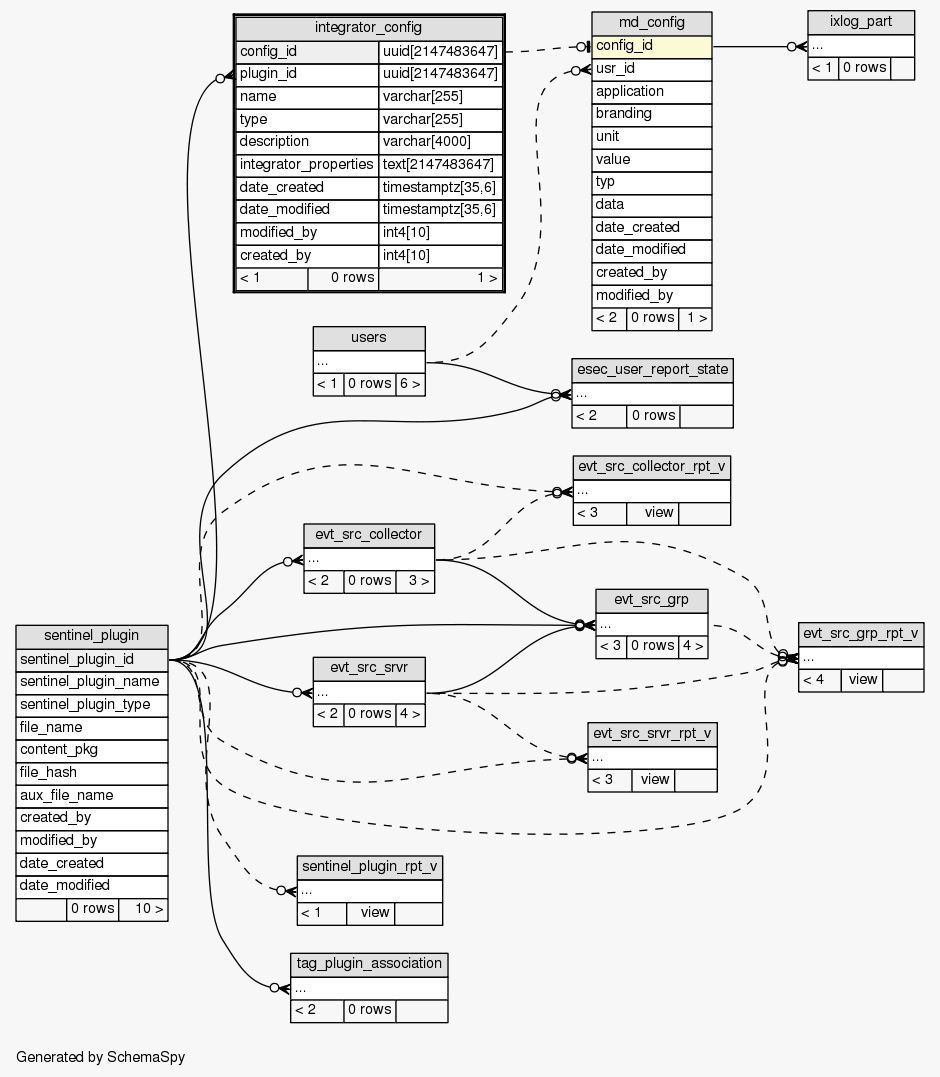

Close relationships  within of separation:
