12.6 Integrating Passwords

If a driver is synchronizing passwords (in at least one direction), a small password-field icon appears under the driver icon. This icon enables you to know where passwords are being synchronized.

You can toggle this icon on or off in Preferences.

  1. Select Window >Preferences > Designer for IDM > Modeler.

  2. Click the Display tab.

  3. Select or deselect Show password icons in Developer mode.

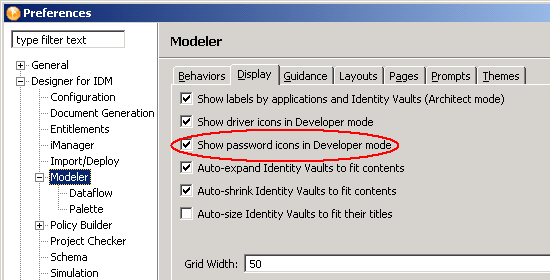

    The Modeler page

If you hover the mouse over the password icon in Developer mode, a helpful tip explains how your passwords are flowing for each server involved in the flow.

To configure the flow of password synchronization:

  1. In Dataflow mode, select Password Sync in the View drop-down box.

  2. Double-click the flow arrow.

  3. Select options, then click OK.

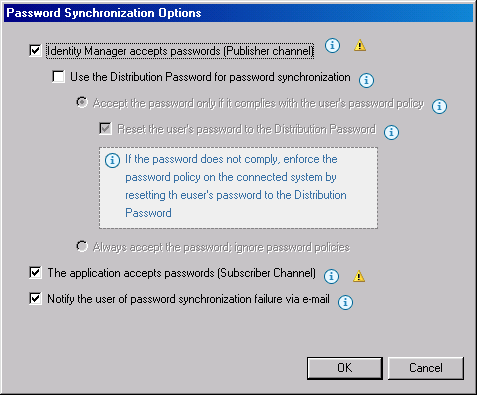

    Password synchronization options
