3270 Connect User's Guide

CHAPTER 3

Creating a 3270 Component


Top of page

Before Creating a 3270 Component

As with all exteNd Composer components, the first step in creating a 3270 component is to specify the XML templates needed. For more information, see Creating a New XML Template in the Composer User's Guide.

Once you've specified the XML templates, you can create a component, using the template's sample documents to represent the inputs and outputs processed by your component.

Also, as part of the process of creating a 3270 component, you must select a 3270 connection or you can create a new one. See "Creating a 3270 Connection Resource" on page 12.

Procedure To create a new 3270 Component:

  1. Select File>New>xObject. Select the Component tab and choose 3270 Terminal.

    NOTE:   Alternatively, under Component in the Composer window category pane you can highlight 3270 Terminal, click the right mouse button, then select New.

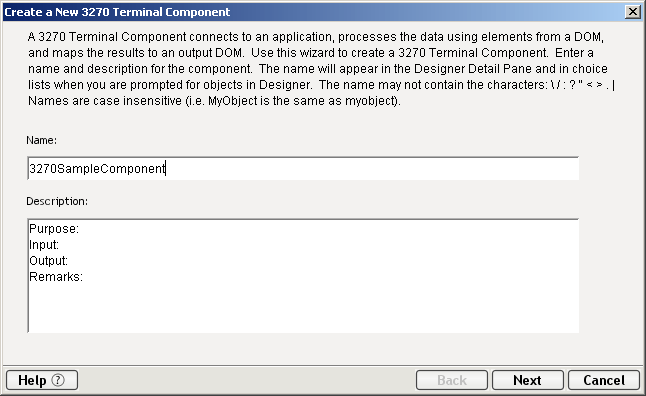

  2. The Create a New 3270 Component Wizard appears.

    3270CreateNewComponent01

  3. Enter a Name for the new 3270 Component.

  4. Optionally, type Description text.

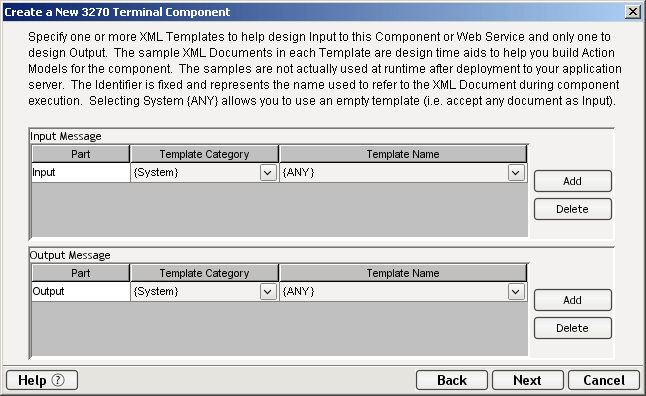

  5. Click Next. The XML Input/Output Property Info panel of the New 3270 Component Wizard appears.

    3270CreateNewComponent02

  6. Specify the Input and Output templates as follows.

  7. Select an XML template for use as an Output DOM using the same steps outlined above.

    NOTE:   You can specify an input or output XML template that contains no structure by selecting {System}{ANY} as the Input or Output template. For more information, see "Creating an Output DOM without Using a Template" in the User's Guide.

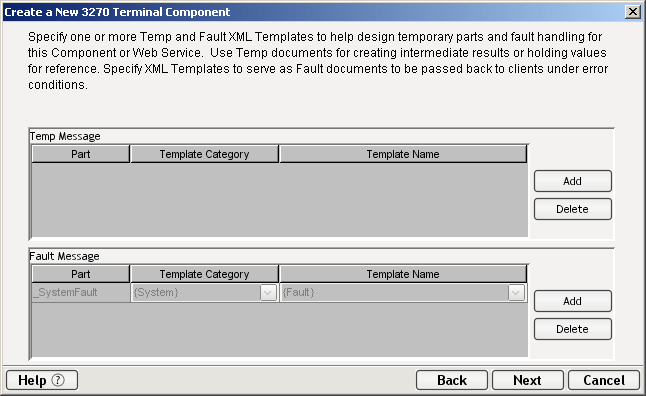

  8. Click Next. The XML Temp/Fault Template Info panel of the New 3270 Component Wizard appears.

    3270CreateNewComponent03

  9. If desired, specify a template to be used as a scratchpad under the "Temp Message" pane of the dialog window. This can be useful if you need a place to hold values that will only be used temporarily during the execution of your component or are for reference only. Specify the templates as indicated in Step 6 above.

  10. Under the "Fault Message" pane, select an XML template to be used to pass back to clients when an error condition occurs.

    As above, to add additional temp or fault XML templates, click Add and choose a Template Category and Template Name for each. Repeat as many times as desired. To remove an XML template, select an entry and click Delete.

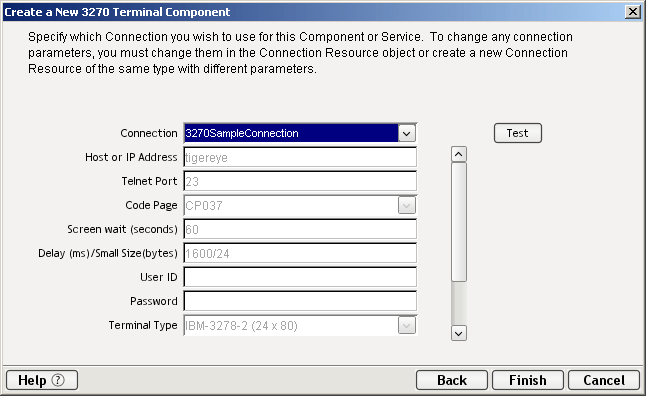

  11. Click Next. The Connection Info panel of the Create a New 3270 Component Wizard appears.

    new3270terminalcomponent274

  12. Select a Connection name from the pull down list. For more information on the 3270 Connection, see "Creating a Connection Resource" in Section 2 of this Guide.

  13. Click Finish. The component is created and the 3270 Component Editor appears.


Top of page

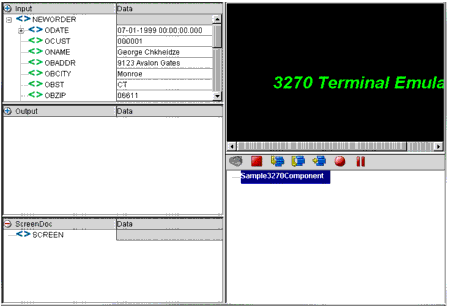

About the 3270 Component Editor Window

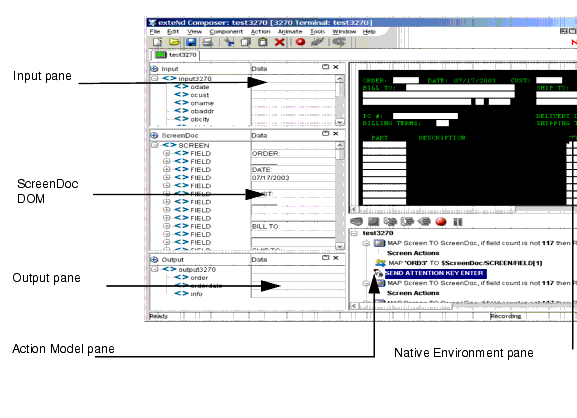

The 3270 Component Editor includes all the functionality of the XML Map Component Editor. It contains mapping panes for Input and Output XML documents as well as an Action pane.

There are two key differences, however. The first is that the 3270 Component Editor also includes a Native Environment pane common to all Connects. It contains a 3270 or emulator and appears black until you select the Record or connect button in the 3270 Component Editor window. Pressing the Record button establishes a 3270 emulation session inside the Native Environment pane with the host specified in the connection used by the 3270 component. The second difference is the addition of a panel containing only an XML DOM called ScreenDoc to the component editor window. This DOM presents an XML document representation of each screen received from the host and is available for reference and creating mapping actions within the component, and is available in the expression builder, allowing the user to easily reference a screen field. For those who want to create a quick HTML representation of the 3270 screen, they can use the output of the ScreenDoc DOM and apply a style sheet to create an HTML representation of the screen.


Top of section

About the 3270 Native Environment Pane

The 3270 Native Environment pane provides 3270 emulation of your mainframe environment. From this pane, you can perform the following:

The transaction functionality of the Native Environment pane is identical to that of a 3270 terminal or terminal emulator.


Top of section

About 3270 Keyboard Support

The 3270 Native Environment pane supports the use of several attention identifier or AID keys: Enter, Clear, PA1-3, and PF1-24. The function for each attention key varies, depending on the host application. These keys are mapped to the PC keyboard as follows:

Table 3-1

3270 Key

PC Key

Enter

Enter

Clear

ESC

PF1 through PF12

F1 through F12

PF13 through PF24

Shift F1 through Shift F12

PA1 through PA3

Ctrl F1 through Ctrl F3

You can either use the keys directly from the keyboard as you create a 3270 component or you can use a keypad tool bar available from the View menu.


Top of section

About the ScreenDoc DOM

The ScreenDoc DOM is an XML document representation of the current screen received through the terminal data stream in the Native Environment pane. All Mapping actions to and from the screen display (including drag and drop) actually reference elements in the ScreenDoc DOM. This provides you with the advantage of being able to see and reference your familiar application screens while at the same time working with them as XML documents.

What it does

The 3270 component communicates with the host environment via the block mode terminal data stream in an asynchronous fashion. A block of data essentially represents a screen. The host sends a screen block that is displayed in the component. The screen is edited by the user (and ultimately by the component you create) and the modified screen is sent back to the host for processing after you press an AID key.

How it works

During the recording mode, each time a screen block of data is received by the component, four things happen simultaneously:

The fields are represented in the ScreenDoc DOM in the order they appear on the screen starting from the upper left corner of the screen, moving across to the right, then down a row starting again at the left and so on until the entire 80x24 screen area is covered. Depending on how the original screen layout was defined, there can be many fields. Some FIELDs are text labels on the screen and usually have display attributes of protected (prot) and bright (brt). Some FIELDs are for data entry and have an attribute of unprotected (unprot). Other FIELDs contain data but are hidden from display with an attribute of dark (drk). Finally there are special screen fields for implementing tabbing features on the screen, which are protected from entering data and called bypass fields with an attribute bypass.

The end result of listing all the TDS fields is that the ScreenDoc DOM can be quite large. Its use is primarily intended for finding hidden fields, verifying fields and their locations by their attributes, and in cases where it is convenient, mapping from the ScreenDoc DOM to the Output DOM using Composer's drag and drop features.

NOTE:   Normally it is much quicker and more efficient to map directly to and from the Native Environment pane using drag and drop instead of mapping to the ScreenDoc DOM.

Each field in the TDS is represented in the ScreenDoc DOM as an element titled FIELD. The ScreenDoc DOM contains as many FIELD elements as there are fields in the TDS. The element displays any data defined for the field. Note that screen fields are used for both field labels and data-entry fields.

About the ScreenDoc DOM

Whenever a Map Screen action executes, a new screen is displayed in the Native Environment Pane (NEP). Each time a screen displays in NEP, an XML representation of the screen is created in the ScreenDoc DOM. (To make this DOM visible, you may need to select a View from the menu bar, then the Window Layout choice next pick the XML Layout Tab, and finally move ScreenDoc to the Visible list and click OK. To help locate the screen cursor position programatically, each ScreenDoc Field returned by the TDS will have an attribute named "cursor." The attribute value of the cursor will be "false" for all the Fields except one whose value will be "true." To determine which Field has the cursor, you can write an expression to check the cursor attribute and return the Field's id attribute as shown below.

TDSCursor

In the sample list of ScreenDoc Fields in the above graphic, the XPath location ScreenDoc.XPath ("SCREEN/FIELD[@cursor= `true']/@id") would return the number "4" indicating that Field 4 is the current cursor location.

Each element also displays the following attributes for the field:

Table 3-2

Attribute

Meaning

Column

The screen column (1-80) where the field begins starting from the left

Cursor

Attribute value which can be "false" for all fields except one must be "true"

Display

Display attributes defined for the field in the TDS (prot = protected, brt = bright, unprot= unprotected, dark = dark, bypass = bypass)

Id

An absolute sequence number representing the fields position in the TDS

Length

The fixed length of the field (1-80)

Row

The screen row (1-24) where the field begins starting from the top


Top of page

About 3270-Specific Menu Bar Items

View Menu

Keypad Tool Bar - This selection displays a keypad tool bar for the 3270 terminal keys. It is docked to the top of the native environment pane. You can drag the keypad from this location, changing it to a floating window. When you close the floating window, the keypad returns to the native environment pane. To remove the keypad from sight, select View, then Keypad Tool bar from the menu bar.

Component Menu

Style Sheet - This selection displays the style sheet editor dialog. It contains a few pre-defined style sheets that appear as resources on the main Composer window.

Start/Stop Recording - This selection manages the automatic creation of actions as you interact with a screen transaction. Start will create actions as you interact with the screen and Stop will end action creation.

Connect/Disconnect - This selection allows you to control the connection to the host. When you are recording or animating, a connection is automatically established, so you are not required to use this button at that time. However, this button is useful if you want to establish a connection simply to navigate through the 3270 environment when you are not recording or animating.


Top of section

About 3270-Specific Context Menu Items

The 3270 Connector also includes context menu items that are specific to this Connector. To view the context menu, place your cursor in a field in the native environment pane and click the right mouse button. The context menu appears as shown.

3270ContextMenu

The function of the context menu items are as follows:

Map - Allows you to create a Map action. This is done by highlighting a source in the Input DOM, then highlighting a source in the Native Environment Pane. As a result, a map action is created. Also you can click the RMB in the Native Environment pane, select Map, and an action is created.

Style Sheet - Allows you to change the appearance of the native environment pane by applying a different Style Sheet.

Field Test - Allows you to create a Throw Fault action for the selected field. An expression for the fault condition will automatically be entered for you, based on the field you clicked when you brought up the context menu. Select Throw System Fault to define a new error message. (You have access to the ECMAScript expression builder.) Alternatively, you may select Throw Defined Fault to select a previously defined Fault Document from the dropdown list.

fieldtext

For more information on how to use Throw Fault Actions, refer to Chapter 9 of the Composer User's Guide.


Top of page

About 3270-Specific Buttons

The 3270 Connect includes two additional tools on the component editor tool bar: the Record button and the Connect/Disconnect button. The Record button enables the automatic creation of actions in the Action Model as you interact with screen transactions. The Connect/Disconnect button controls your connection to the mainframe. They appear as shown.
