A.3 Post Office Agent Port Numbers

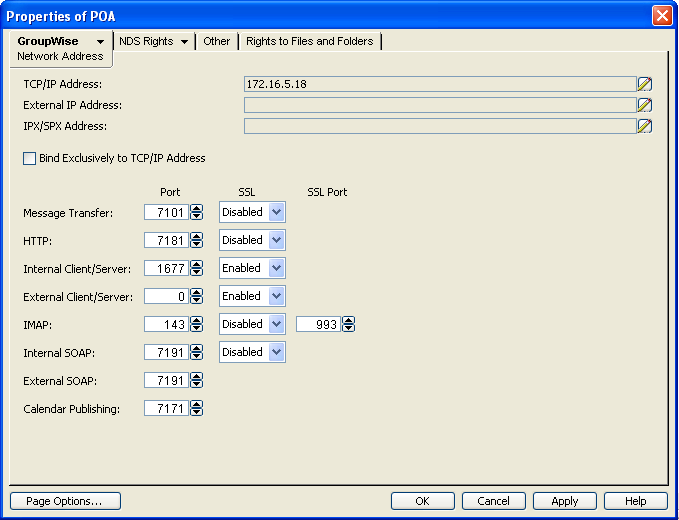

Post Office Agent Network Address Property Page in ConsoleOne

Protocol

Default Port Number

TCP/UDP

SSL Available?

Description

MTP

7101

TCP

Yes

Message Transfer Protocol

Communication between the POA and the MTA

Using TCP/IP Links between the Post Office and the Domain

HTTP

7181

TCP

Yes

Hypertext Transfer Protocol

POA Web console

Section 37.2, Using the POA Web Console

Internal Client/Server

1677

TCP/UDP

Yes

Local communication between the POA and GroupWise clients

Section 36.2.1, Using Client/Server Access to the Post Office

External Client/Server

0

TCP/UDP

Yes

External communication between the POA and GroupWise clients (administrator-defined port number)

Section 36.3.1, Securing Client/Server Access through an External Proxy Server

IMAP

IMAP SSL

143

993

TCP/UDP

No

Yes

Internet Message Access Protocol

Communication between the POA and IMAP clients such as such as Netscape Mail, Eudora Pro, Microsoft Outlook, and Entourage

Section 36.2.3, Supporting IMAP Clients

SOAP

7191

TCP

Yes

Simple Object Access Protocol

Communication between the POA and SOAP clients such as Evolution and the Novell Data Synchronizer Connector for GroupWise

Section 36.2.4, Supporting SOAP Clients

Calendar Publishing

7171

TCP

No

Calendar Publishing Protocol

Communication between the POA and the Calendar Publishing Host

Connecting the Calendar Publishing Host to a POA and Section 64.1.2, Changing Post Office Settings

SNMP

161

TCP/UDP

No

Simple Network Management Protocol

Communication between the POA and an SNMP management console

Section 37.6, Using an SNMP Management Console
