10.8 Viewing Partitions on a Device

NSS abstracts all partition creation and deletion in iManager; there are no actions to perform on partitions. For information about partitions, see Managing Partitions.

  1. In iManager, click Storage > Devices.

    For instructions, see Section 9.1.5, Accessing Roles and Tasks in iManager.

  2. Select a server to manage.

    For instructions, see Section 9.1.6, Selecting a Server to Manage.

    A list of devices appears in the Devices list.

  3. In the Devices list, select a device.

  4. In the Details area, click the arrow on the Partitions drop-down list to expand it.

    Sample Partitions List from Device Details
  5. Select a partition, then click View Details.

    This opens the Partitions page. It displays a list of all the partitions that currently exist on the selected device.

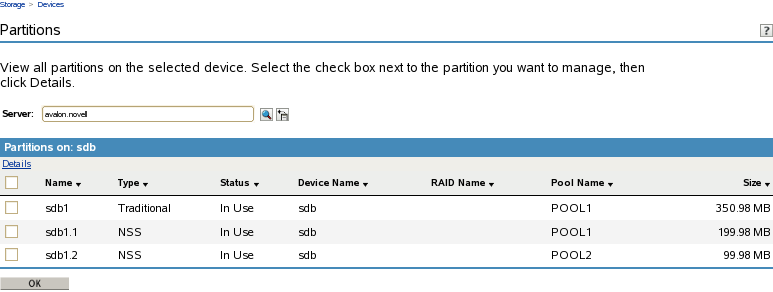

    Sample Partition Management Page for a Selected Device

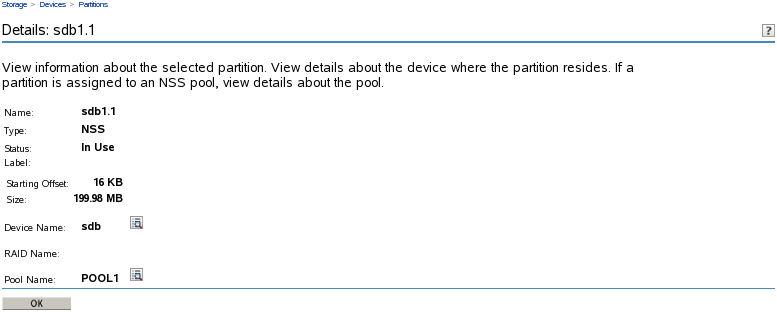

  6. To view details about a partition, select the check box next to it in the Partitions list, then click Details to view its details.
