10.17 Viewing the Cluster Node Properties

You can view the cluster node number and IP address of the selected node as well as the distinguished name of the Linux Server object.

  1. In iManager, select Clusters > My Clusters.

  2. Click the cluster that you want to manage.

    If the cluster does not appear in your list, add the cluster to your list as described in Section 9.2, Setting Up a Personalized List of Clusters to Manage.

  3. Select Cluster Options.

  4. Select the check box next to the cluster node whose properties you want to view, then click the Details link.

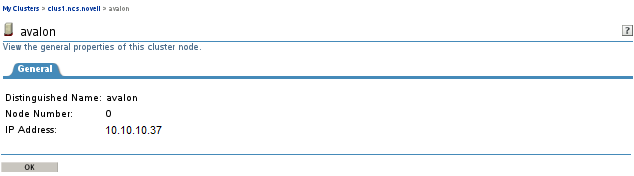

  5. View the node information:

    • Distinguished Name: The distinguished name of the Server object.

    • Node Number: The cluster node number.

    • IP Address: The IP address of the server.

  6. Click OK to return to the Cluster Options page.
