6.10 CellTrust Generation REST Collector
CellTrust generation 2 uses the REST Collector model.
REST data flow can be monitored by the Archive User by Module Report Archive Summary by Module
6.10.2 Configure Retain Server Connection
Under Server Configuration/Communications you must setup the Retain Server Connection. This is the hostname or the public IP Address of the Retain server the host will be entered into the CellTrust system to connect to Retain. The port will be 48080 for HTTP or 443 for HTTPS protocols.

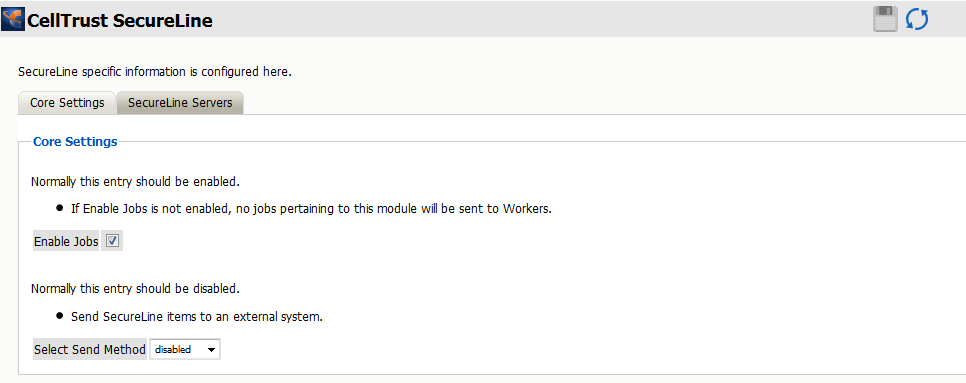

6.10.4 Configure the CellTrust Module
To configure the CellTrust module, all that is required is to enable the Jobs in the module and Save Changes.
The “Enable Jobs” box must be checked to have data archiving functionality.
The Send Method option enables either the SMTP Forwarding or FTP features. For either feature to appear and function, the Module Forwarding tab must be configured on the Server Configuration page.
Save changes and the module is configured. You may need to disable and re-enable "Enable Job" before it will allow you to Save Changes.
There is no need to configure the SecureLine Servers.

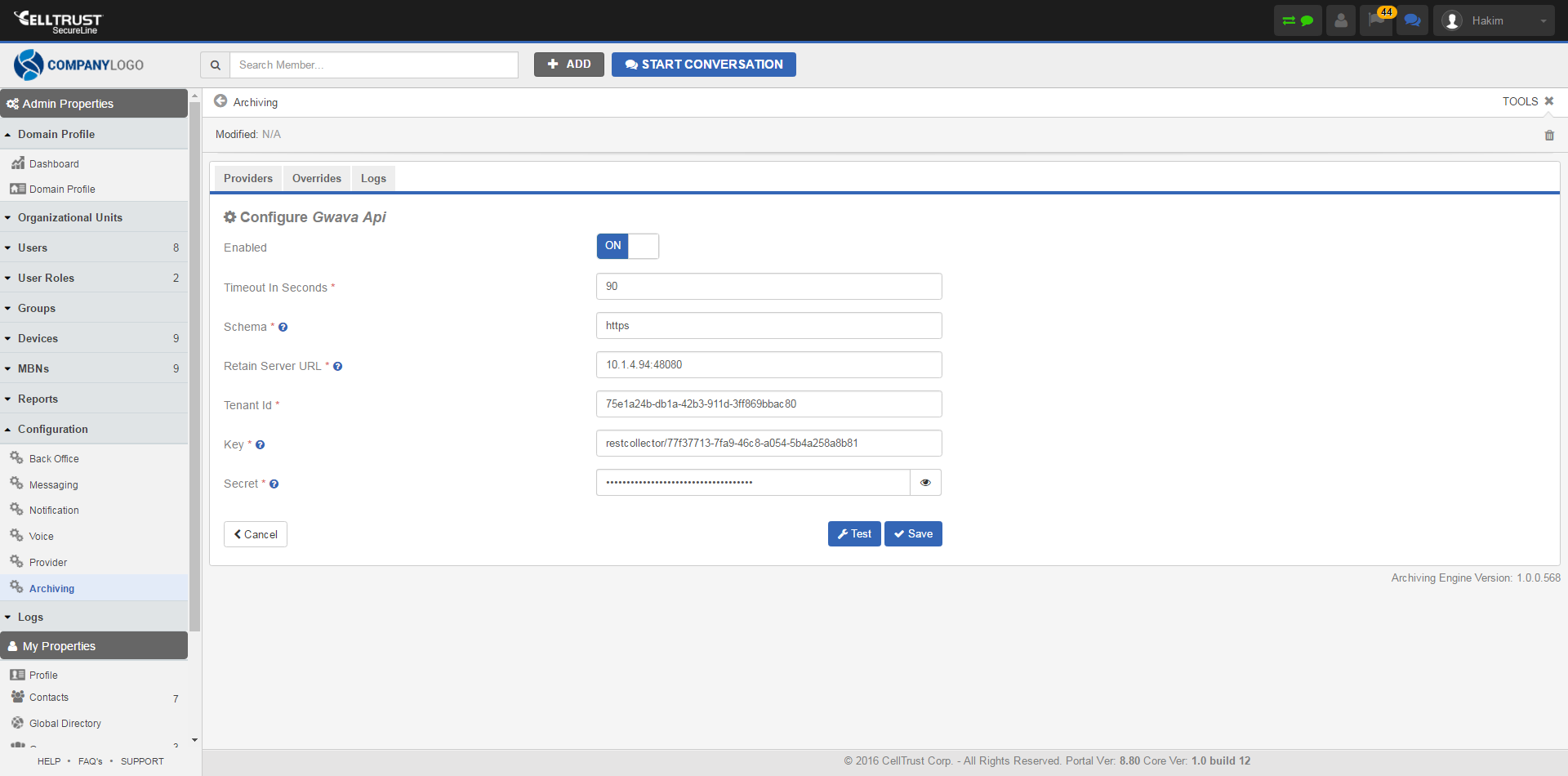

Configure CellTrust
The REST connection to the collector needs to configured by the Admin on the CellTrust system side.
Provide the Retain Server URL, Tenant ID, Key and Secret.
Once the connection is made data will begin to flow into Retain from CellTrust and will appear in the user's Retain mailbox.
There are no Profiles or Jobs associated with this Module. Data flow can be monitored with the Archive Summary by Module report Archive Summary by Module.
