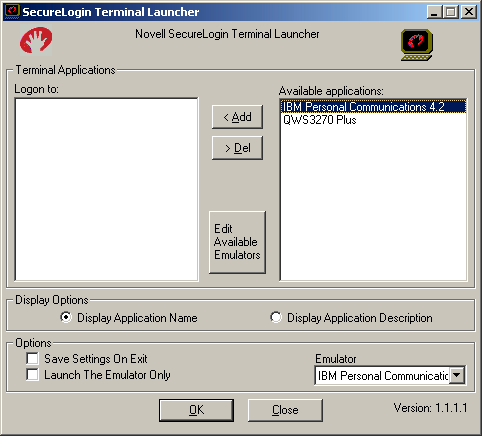

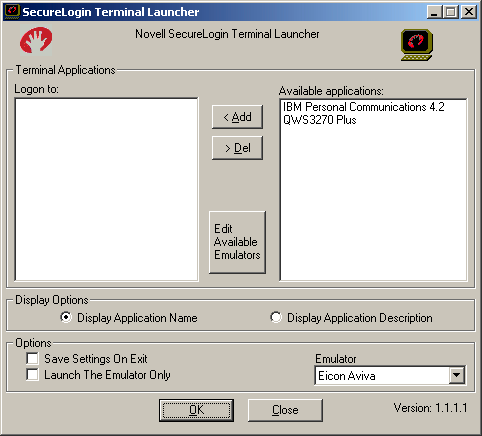

Run Terminal Launcher, then click Edit Available Emulators.
Click New.
Enter a name for the emulator, select HLLAPI as the emulator type, then click OK.
IBM Personal Communications 4.2 is the recommended name.

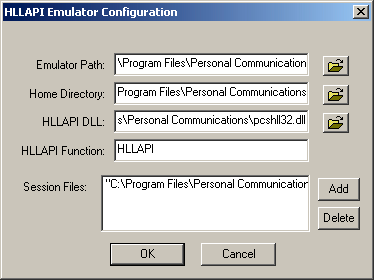

Configure the emulator:
Type the path to the pcsws.exe file.
This is the home directory of the emulator.
This is the path to the pcshll32.dll file.
Type HLLAPI.
This is the path to the session file that you want to use.
Click OK > Done.
Double-click IBM Personal Communications in the Available Applications list, select IBM Personal Communications from the Emulator drop-down list, then click OK.
Enter login data.
The first time that the script is run, SecureLogin prompts the user to enter a username and password.
Enter the Username.
Enter the Password.
Click OK.
The emulator launches, the username and password are automatically entered, and the user is logged in to the session.
