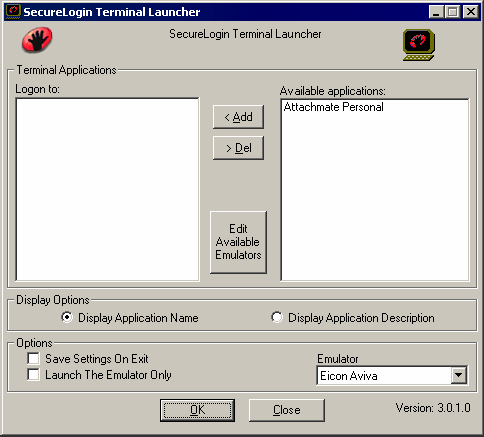

Run Terminal Launcher, then click Edit Available Emulators.
Click New.
Type a name for the emulator, select Generic as the emulator type, then click OK.
Attachmate Personal Client is the recommended name.

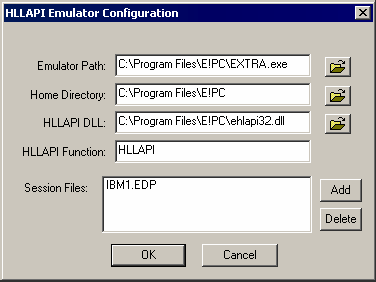

Configure the emulator:
This is the path to the extra.exe file.
This is the name or IP address of the server that you want to connect to.
This is the path to the ehlapi32.ddd file
HLLAPI
Type the path of the session file you wish to use.
Click OK, then click Done.
Double-click Attachmate Personal Client in the Available Applications list, select Attachmate Personal Client from the Emulator drop-down list, then click OK.
Enter login data.
The first time that the script is run, SecureLogin prompts the user to enter a username and password.
Enter the Username.
Enter the Password.
Click OK.
When the user clicks OK, the emulator launches and the user is logged in to the session.
