6.0 Upgrading Micro Focus Service Desk Appliance

This chapter contains information about upgrading your existing implementation of Micro Focus Service Desk that runs on the appliance.

NOTE:

  • Ensure that you have a verified backup of your existing appliance, and, if applicable, the external database.

  • The /Livetime folder contains few important files, ensure that you have taken the backup of /Livetime folder for the Appliance before upgrading.

  • If you are using Customized Banners in Micro Focus Service Desk then, take backup of the contents in /usr/share/tomcat6/webapps/LiveTime/images/banners/custom folder before upgrade and later replace it with existing folder after the upgrade.

Scenarios Supported for Upgrade

  • Side-by-Side: This is a scenario where you have two appliances running simultaneously, an existing Novell Service Desk appliance and another new appliance. The Service Desk configuration and data is transferred to the new appliance which then becomes your production environment. Your old appliance is shutdown and no longer used.

Side-by-Side Upgrade

  1. Deploy the Micro Focus Service Desk Appliance on a VMware ESX Server and configure the network.

  2. Connect to the Micro Focus Service Desk Appliance by using the VMware ESX console.

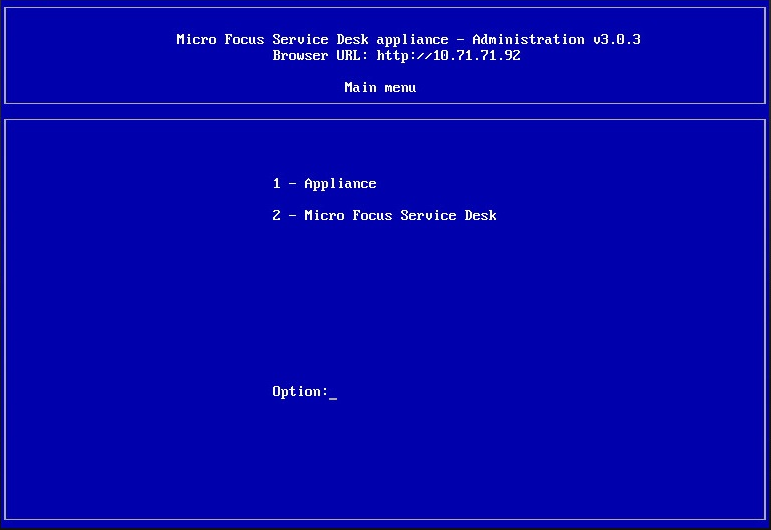

  3. In the Micro Focus Service Desk Appliance main menu, select Micro Focus Service Desk.

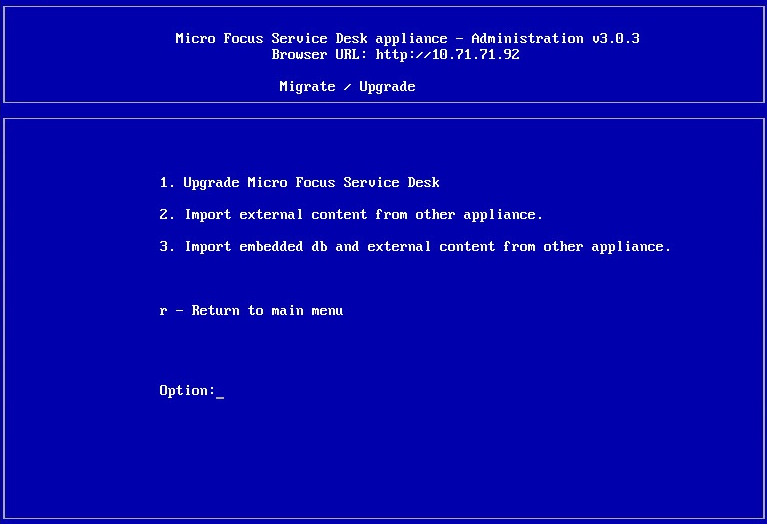

  4. Select Migrate/Upgrade.

  5. If you are using an external database, select Import external content from other appliances.

    Or

    If you are using the internal embedded database, select Import embedded db and external content from other appliances.

  6. Enter the IP address of your existing Appliance Server.

  7. Follow the instructions on the wizard by answering Yes to all questions.

  8. After the upgrade is complete, connect to Micro Focus Service Desk Appliance 7.0 through a browser and enter your database connection details.

    If you are using embedded database, the connection details are as follows:

    Parameter

    Value

    Database Type

    PostgreSQL

    Server Host

    127.0.0.1

    Server Port

    5432

    Database

    nsd

    User name

    nsd

    Password

    linux

  9. Click Test to ensure that the database connection is correct.

  10. Click Advanced.

  11. Click Upgrade twice.

  12. Click Save when the migration is complete.

    A message informing you to enter a new license appears. You can find these details in NCC.

In-Place Upgrade

  1. Deploy the new Micro Focus Service Desk Appliance 7.x on the VMware ESX Server and configure the network.

  2. By using the VMware ESX console, connect to the production Micro Focus Service Desk Appliance.

  3. In the production Micro Focus Service Desk Appliance main menu, select Micro Focus Service Desk.

  4. Select Migrate/Upgrade.

  5. Select Upgrade Micro Focus Service Desk.

  6. Enter the IP address of the new Micro Focus Service Desk Appliance 7.x Server.

  7. Follow the instructions on the wizard by answering Yes to all questions.

  8. After the upgrade is complete, connect to the production Micro Focus Service Desk Appliance 7.0 through a browser and re-enter your database connection details.

    If you are using the embedded database, the connection details are as follows:

    Parameter

    Value

    Database Type

    PostgreSQl

    Server Host

    127.0.0.1

    Server Port

    5432

    Database

    nsd

    User name

    nsd

    Password

    linux

  9. Click Test to ensure the database connection is correct.

  10. Click Advanced.

  11. Click Upgrade twice.

  12. Click Save when the migration is complete.

    A message informing you to enter a new license appears. You can find these details in NCC.
