Table SIEM.public.asset
Associates an asset with all of the detailed information about that asset, which is located in other tables.

Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
asset_id uuid 2147483647
asset_rpt_v.asset_id Implied Constraint R
asset_x_entity_x_role.asset_id asset_x_entity_x_role_fk1 R
asset_x_entity_x_role_rpt_v.asset_id Implied Constraint R
incidents_assets.asset_id Implied Constraint R
incidents_assets_rpt_v.asset_id Implied Constraint R
Asset identifier
cust_id int8 19
cust.cust_id Implied Constraint R
Customer identifier
asset_name varchar 255  √  null Description of the asset
physical_asset_id uuid 2147483647
physical_asset.physical_asset_id asset_fk1 R
Physical asset identifier
prdt_id int8 19
prdt.prdt_id asset_fk6 R
Product identifier
asset_ctgry_id int8 19
asset_ctgry.asset_ctgry_id asset_fk2 R
Asset category identifier
env_identity_id int8 19
env_identity_lkup.env_identity_id asset_fk7 R
Environment identify code
physical_asset_ind bool 1  √  null Physical asset indicator
asset_val_id int8 19
asset_val_lkup.asset_val_id asset_fk3 R
Asset value code
crit_id int8 19
crit_lkup.crit_id asset_fk4 R
Asset criticality code
sensitivity_id int8 19
sensitivity_lkup.sensitivity_id asset_fk5 R
Asset sensitivity code
date_created timestamptz 35,6  √  null Date the entry was created
date_modified timestamptz 35,6  √  null Date the entry was modified
created_by int4 10  √  null User who created object
modified_by int4 10  √  null User who last modified object

Table contained 0 rows at Mon Mar 26 23:24 EDT 2012

Indexes:
Column(s) Type Sort Constraint Name
asset_id Primary key Asc asset_pk
asset_name + physical_asset_id + cust_id Must be unique Asc/Asc/Asc asset_ak1

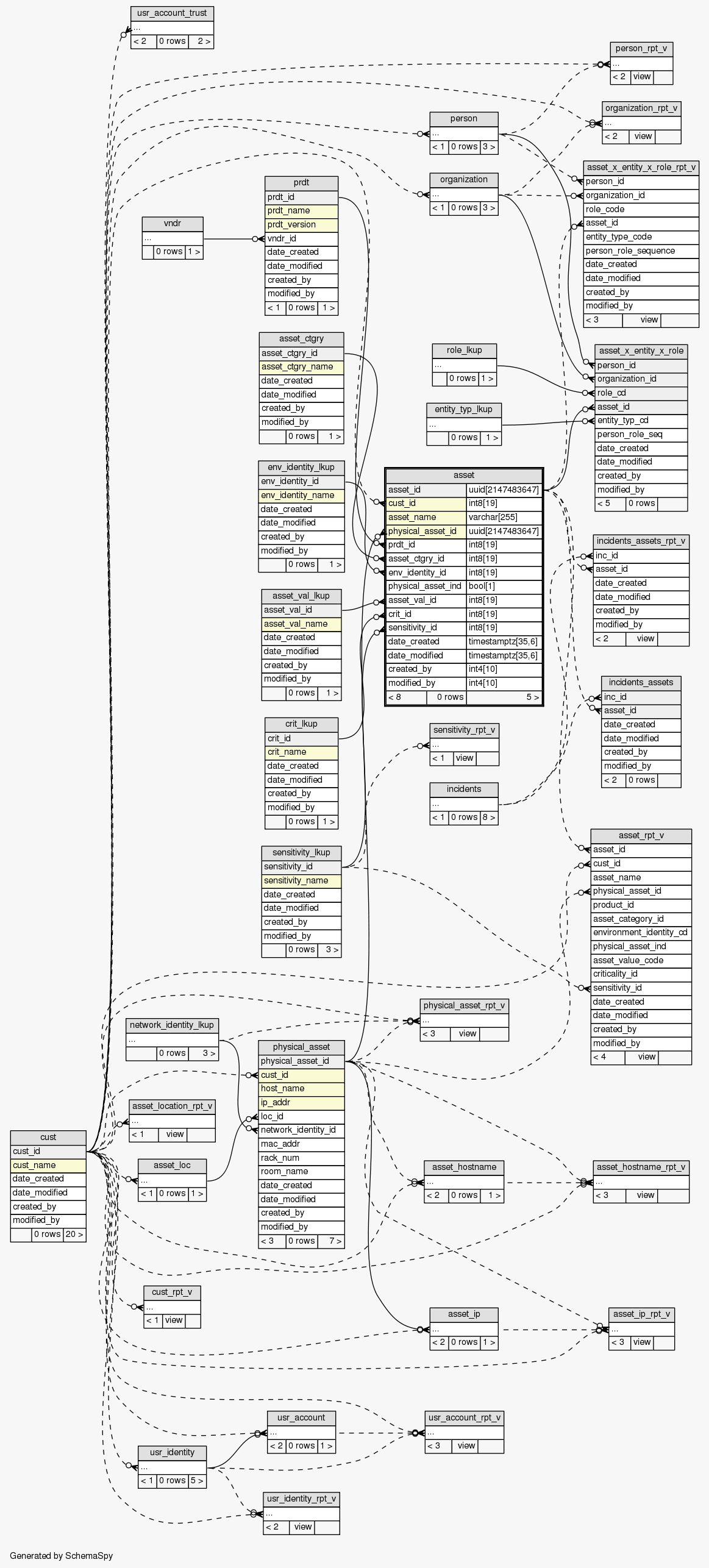

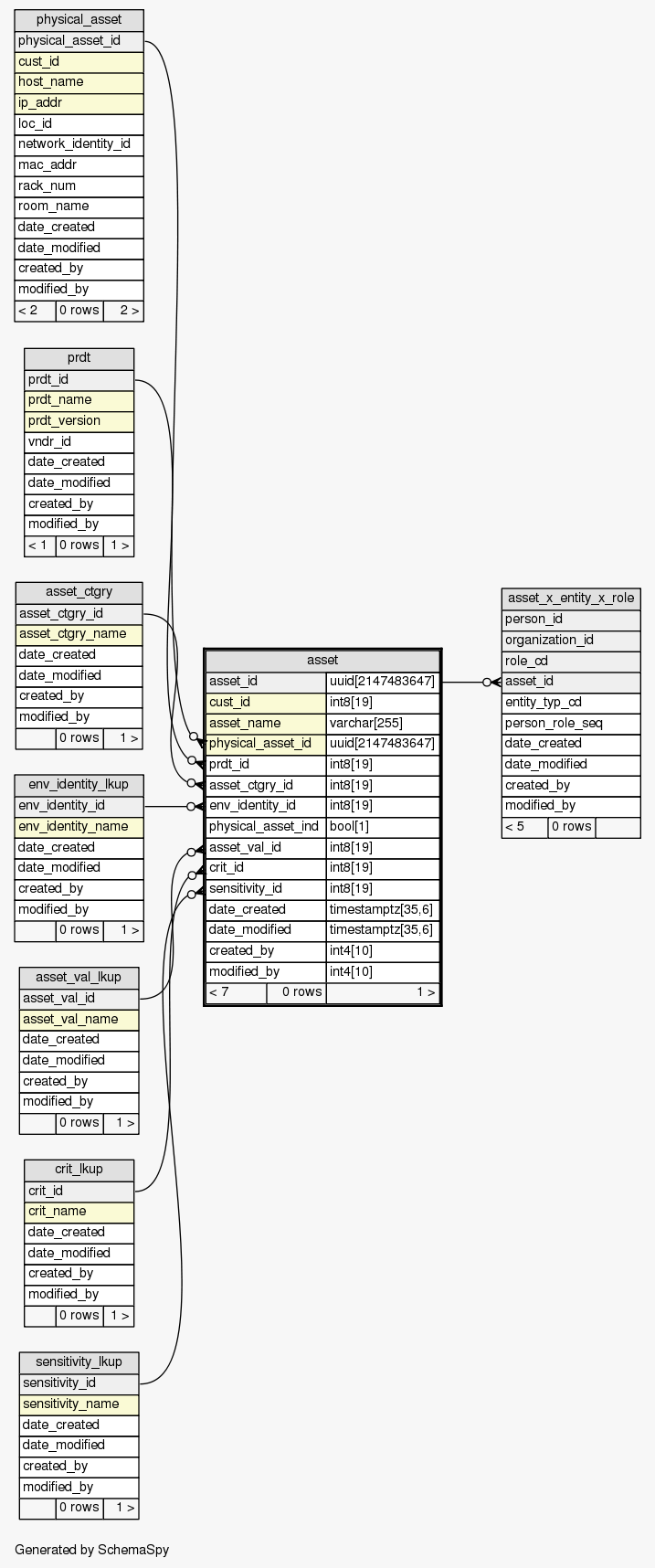

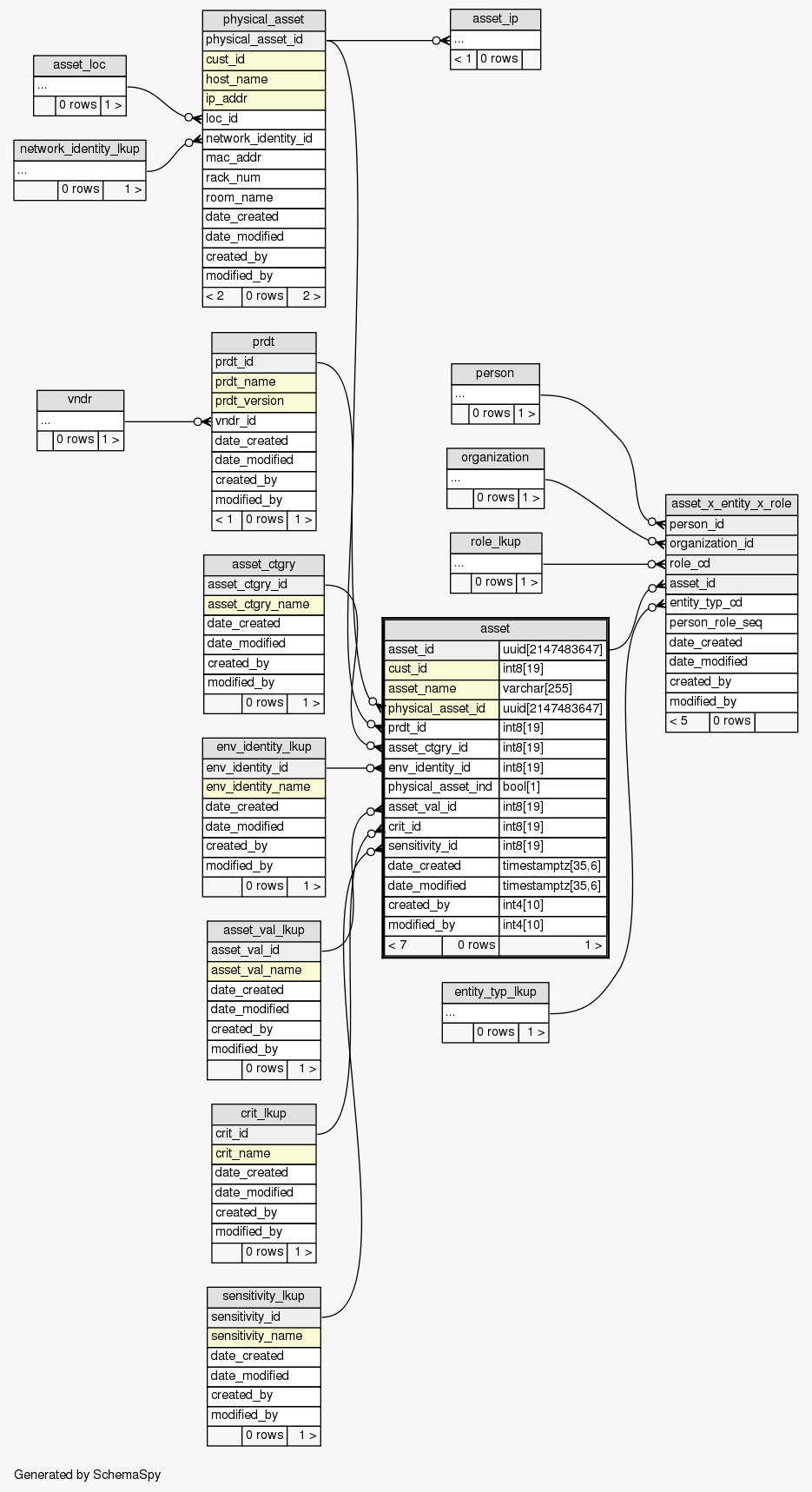

Close relationships  within of separation:
