Table SIEM.public.prdt
Asset product information

Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
prdt_id int8 19
asset.prdt_id asset_fk6 R
Product identifier
prdt_name varchar 255  √  null Product name
prdt_version varchar 100  √  null Product version
vndr_id int8 19
vndr.vndr_id prdt_fk1 R
Vendor identifier
date_created timestamptz 35,6  √  null Date the entry was created
date_modified timestamptz 35,6  √  null Date the entry was modified
created_by int4 10  √  null User who created object
modified_by int4 10  √  null User who last modified object

Table contained 0 rows at Mon Mar 26 23:24 EDT 2012

Indexes:
Column(s) Type Sort Constraint Name Anomalies
prdt_id Primary key Asc prdt_pk
prdt_name + prdt_version Must be unique Asc/Asc prdt_ak1 These unique columns are also nullable

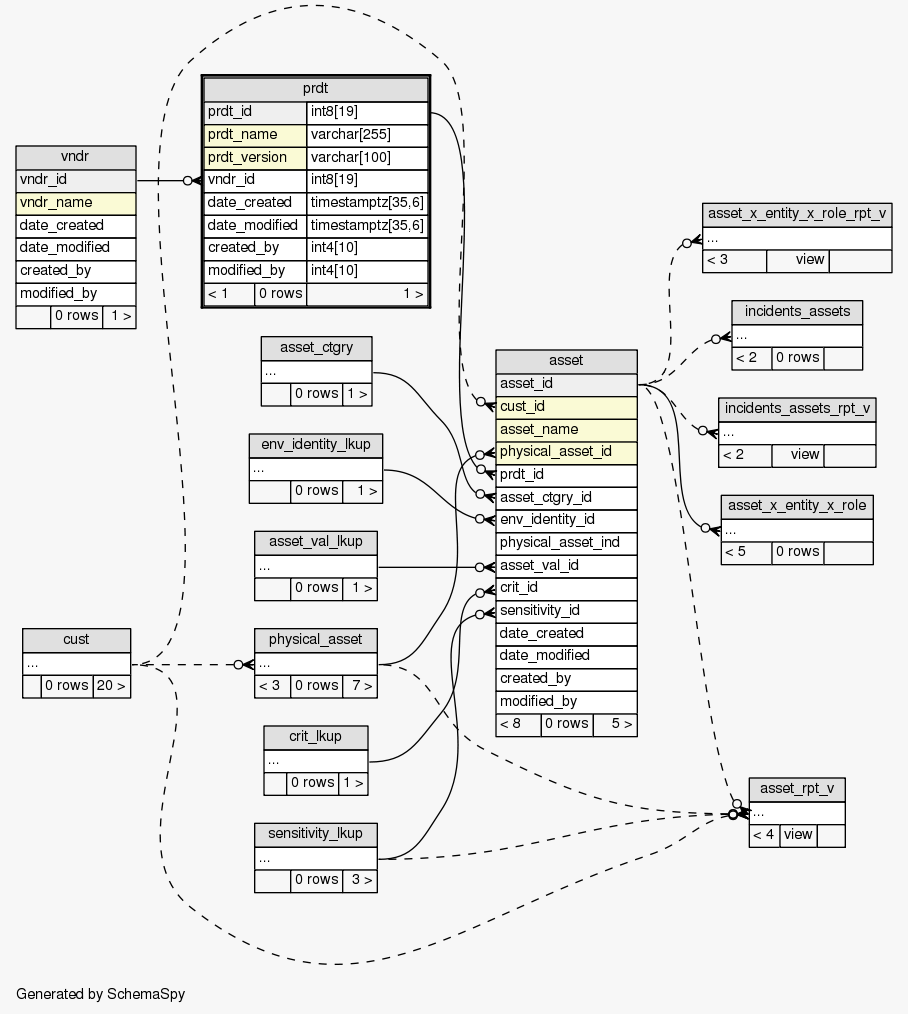

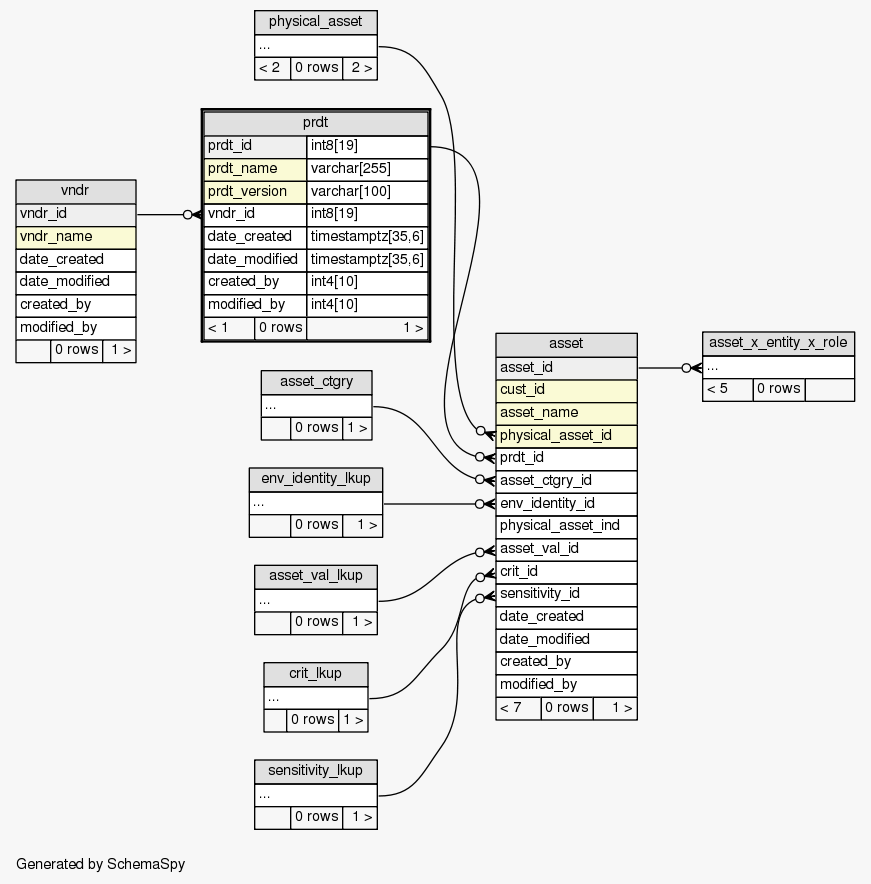

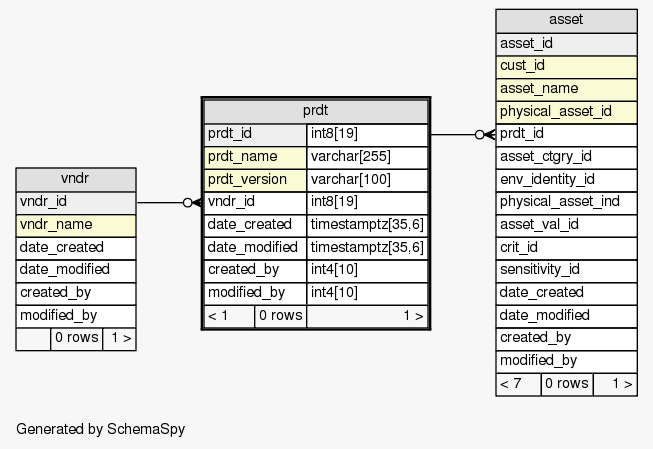

Close relationships  within of separation:
