1.8.1 Thread Level Context

Thread level context is the most private level of context information within an NLM; the context of each thread is available only to each thread. These values are separate for each thread. The data items of one thread cannot be referenced by another thread.

Threads maintain the following context:

asctime char string pointer

This character string is only allocated if the asctime, asctime_r function is called. The asctime, asctime_r function returns a char *. (NDK: Program Management)

critical section count

This count contains the number of outstanding EnterCritSec calls against a thread.

ctime, ctime_r, gmtime, gmtime_r, and localtime, localtime_r tm structure pointer ( NDK: Program Management)

The ctime, ctime_r, gmtime, gmtime_r, and localtime, localtime_r functions return a pointer to a tm structure. Each thread has its own tm structure. The tm structure is allocated only if one of these three functions is called.

errno

Some functions set the errno return code to the last error code that was detected.

Last value from the function rand

Each thread has its own seed value (to start or continue a sequence of random numbers). (See rand, rand_r (NDK: Program Management).)

NetWareErrno

This error code is a NetWare specific error code. Some functions set both NetWareErrno and errno.

Stack

This points to the block of memory BeginThread allocated for the thread’s stack.

strtok pointer

The strtok function maintains a pointer into the string being parsed (NDK: Program Management).

t_errno

This error code is used by TLI functions.

Suspend count

This count contains the number of outstanding SuspendThread calls against a thread.

1.8.2 Thread Group Level Context

All of the threads in a thread group share the same thread group level context. Any change that one thread makes to the value of a thread group data item affects all the threads in the group. The context of a thread group, however, is not shared with other thread groups, so changes within one thread group do not affect another group.

Thread groups maintain the following context:

Current connection

The current connection number is described in Connection Number and Task Management Concepts (NDK: Connection, Message, and NCP Extensions).

Current screen

The current screen is the target of screen I/O functions, as described in Screen Handling Concepts (NDK: NLM Development Concepts, Tools, and Functions).

Current task

The current task number is described in Connection Number and Task Management Concepts (NDK: Connection, Message, and NCP Extensions).

CWD

Current Working Directory (NDK: NLM Development Concepts, Tools, and Functions, as described in "OS Related Issues" in this documentation.

Signal settings

Signal handler functions are set by signal. (The signal and raise functions are discussed in Signal Handling in NDK: NLM Development Concepts, Tools, and Functions.)

stdin, stdout, stderr

These data items are the second-level standard I/O handles, as mentioned in Stream I/O Concepts (Single and Intra-File Services).

umask flags

These flags are set by the umask (Multiple and Inter-File Services) function.

Current user

The "current user" is the user context used by NDS™ functions (NetWare® 4.x, 5.x, and 6.x).

1.8.3 NLM Level Context

The NLM™ level context is shared by all thread groups and threads in the NLM, and these data items have only one value for the entire NLM. The data items are global to all the thread groups and threads in the NLM. Any changes made to the values of NLM global data items affect all the thread groups and threads in the NLM.

NLM applications maintain the following context on a per NLM basis:

"Active advertisers"

Each NLM can have a set of "active advertisers" (started by AdvertiseService (NLM)).

argv array

This is the argv array passed to main.

atexit, AtUnload (which signal the SIGTERM handler)

These functions register functions that are to be called when the NLM exits normally or is unloaded.

Libraries’ work areas pointers

These are pointers to the data areas of any NLM libraries that the NLM has called, as described in Library Concepts (NDK: Program Management).

Locale settings

These settings are used by the locale functions.

Open directories

The set of directories (opened by opendir) the NLM has open.

Open IPX/SPX/SPX II sockets

The set of IPX/SPX/SPX II sockets the NLM has open.

Open files

The set of files the NLM has open. First-level open files include those opened with open, sopen, and creat. Second-level files include those opened with fopen, fdopen, and freopen (Single and Intra-File Services).

Open network semaphores

The set of network semaphores (opened by NWOpenSemaphore (Single and Intra-File Services)) the NLM has open.

open screens

The set of screens the NLM has open.

original command line

A copy of the original command line when the NLM was started is saved (used by the getcmd function).

thread name

This pattern is used for naming new threads (used by BeginThread and BeginThreadGroup).

1.8.4 Context Problems with OS Threads

There are two types of threads running in the NetWare® OS: OS threads (such as callbacks) and CLIB threads (those created by the CLIB.NLM functions). The OS threads are created by the OS in instances such as when the LOAD and the UNLOAD commands are used. CLIB threads are created by calling the NetWare API functions BeginThread, ScheduleWorkToDo, and BeginThreadGroup, and by a default thread starting at the main function. The following figure shows that OS threads are missing the context that CLIB threads have.

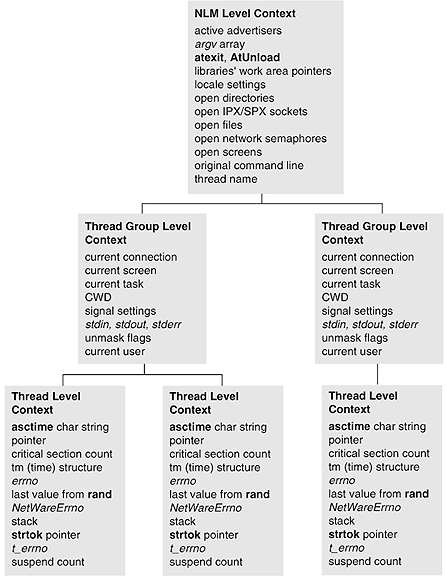

Figure 1-6 Context of OS and CLIB Threads

The problem here is that many-but not all-NetWare API functions need to have a context in order to work correctly. For example: printf writes to the calling thread’s current screen. The current screen is kept in the thread’s thread group context. OS threads do not have any CLIB context, so their calls to printf do not produce output anywhere. In more extreme cases, OS threads calling the NetWare API functions that need CLIB context can cause the server to abend.

Developers must be aware of all the situations where NLMs will be running with OS threads instead of CLIB threads, and adjust their code accordingly to give the OS threads CLIB context. The following is a list of conditions where the NLM runs with OS threads:

In the following conditions, threads might or might not have CLIB context, depending on the context specifier:

1.8.5 Context Solutions for OS Threads

Two solutions to these context problems are as follows:

  #include <process.h>
     int globalThreadGroupID;

     main()
     {
        globalThreadGroupID = GetThreadGroupID();
        ...
     }


Then, when you have an OS thread running, you give the OS thread context using SetThreadGroupID as follows:

  oldTGID = SetThreadGroupID(globalThreadGroupID); /* do work */
  ...
  SetThreadGroupID(oldTGID); /* always set back the thread group ID */


At this point, the NetWare® API takes the OS thread and gives it context, just as if it had been a CLIB thread. This lets you use the NetWare API functions that need context.

NO_CONTEXT

Use this when you don’t want callbacks to be automatically registered with a CLIB context. The advantage here is that you avoid the overhead needed for setting up CLIB context. The disadvantage is that without the context, the callback is only able to call NetWare API functions that manipulate data or manage local semaphores.

Call SetThreadGroupID and pass in a valid thread group ID. Use this once inside your callback to give your callback thread CLIB context.

USE_CURRENT_CONTEXT

Use this to register callbacks to have the thread group context of the registering thread.

A valid thread group ID

Use this when you want the callbacks to have a different thread group context than the thread that schedules them.

You can determine the existing setting of the registering thread’s context specifier by calling GetThreadContextSpecifier. Call SetThreadContextSpecifier to set a thread’s context specifier.

When a new thread is started with BeginThread, BeginThreadGroup, or ScheduleWorkToDo, its context specifier is set to USE_CURRENT_CONTEXT by default.

Using this solution, if you want the registered thread to have the thread group context of the registering thread, you would set the registering thread’s context specifier to USE_CURRENT_CONTEXT (if it has been changed from the default) and then register the function that will run as a callback.
