Understanding Driver Concepts

The driver is a bidirectional synchronization product between SAP R/3 and Enterprise R/3 systems and eDirectory. This framework uses XML and XSLT to provide data and event transformation capabilities that convert eDirectory data and events into SAP data and vice-versa.

eDirectory acts as a hub, with other applications and directories publishing their changes to it. eDirectory then sends changes to the applications and directories that have subscribed for them. This results in two main flows of data: the Publisher channel and the Subscriber channel.


Publisher Channel

The SAP system publishes User object information in the form of USERCLONE IDocs using Application Link Enabling (ALE) and Central User Administration (CUA) technology. If desired and properly configured, the SAP system can propagate all Add, Delete, Lock, Unlock, and Modify User event data to eDirectory. The driver consumes the IDoc data and converts it into XML format. For more information on how the driver handles IDoc processing, refer to IDoc Consumption by the Driver.

The Publisher channel then submits XML-formatted documents to the DirXML engine for publication into eDirectory. Using eDirectory and other drivers, the data can be shared with other business applications and directories. These other applications can add additional data, which in turn can be transferred back into the SAP User records using the standard SAP Business Application Programming Interface (BAPI).

Depending on the ALE port configuration you choose, the Publisher channel either polls the SAP database for changes via a file port or it receives the data via a TRFC connection.

The following diagram illustrates the file port configuration. With the file port configuration, the entire IDoc is stored on the SAP host system.


Publishing Data to eDirectory using the File Port Configuration

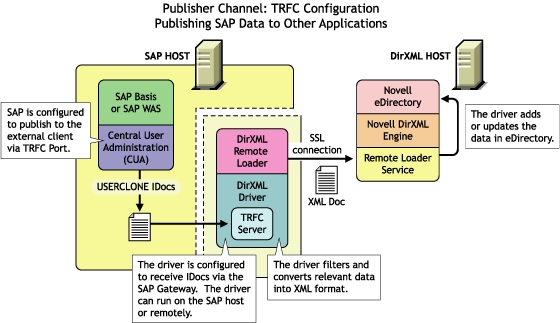

The following diagram illustrates the TRFC port configuration. When using the TRFC configuration, a minimal "trigger" IDoc is stored on the driver host system. The driver handles the parsing of the IDoc data and uses the information to read the current User object. The driver then parses the appropriate data fields specified by the driver configuration, and provides secure transport of the data to eDirectory. Only data elements specifically selected by the system administrator are transported from the SAP host system to eDirectory.


Publishing Data to eDirectory using the TRFC Configuration


IDoc Consumption by the Driver

The driver consumes only Output IDoc files with the client number that is specified by the driver configuration, thus ensuring the privacy of other IDocs that might be generated by another driver configuration or ALE integration. Only the IDoc attributes that have been specified in the driver Publisher filter are published to eDirectory.

The format of a successfully published IDoc file is:

<(I)nput or (O)utput>_<client number>_<consecutive IDoc number>

For example:

O_300_0000000000001001

After the IDoc has been processed and specified attributes have been published, the filename of the IDoc file is modified to reflect the status of the publication processes. The following table lists the IDoc status and corresponding extension:

IDoc Status Filename Extension

Processing but not published

.proc

Processed successfully and published

.done

Processed with an error or warning

.fail or .warn

Processed and retained for future-dated processing

.futr

Processed with corrupt or illegitimate data

.bad

You should determine what action is required, if any, after IDoc publication is complete.

NOTE:  Removing the filename extension makes the IDoc available for re-processing.


Subscriber Channel

The Subscriber channel receives XML-formatted eDirectory events from the DirXML engine. The driver the converts these documents to an appropriate data format, and updates SAP via the BAPI interface. eDirectory sends changes only to the applications that subscribe to receive them.

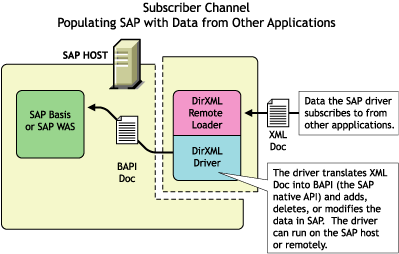

Populating SAP with Data from other applications via the Subscriber channel

For data to flow from eDirectory to the SAP system, the driver uses the SAP BAPI functions. The level of functionality is based upon the R/3 release level. By default, the driver is configured to support a SAP 4.6C system using USERCLONE03 messages. (To determine the level of USERCLONE messages available on your SAP system, run transaction WE60 and specify object name USERCLONEnn.) As a SAP administrator, you can select which attributes from the infotypes can be modified.


Attribute Mapping from the SAP User Management Database to eDirectory

Schema mapping is used by Identity Manager to translate data elements as they flow between the SAP User Management database and eDirectory. The SAP User object schema is based on the SAP USERCLONE message type. The schema map contains all attributes of the various data infotypes of the USERCLONE message type.

Several of the USERCLONE infotypes can be instantiated multiple times on the User records. Infotypes such as ADDTEL (Telephone Number) and ACTIVITYGROUPS (Roles) are Table fields and can contain multiple values. Other infotypes such as ADDRESS and LOGONDATA are Structure fields and are instantiated only once but have multiple fields associated with them. Still other fields are simple field types that contain only a single data field element.

The eDirectory system administrator can configure the driver to receive any of these various data fields, and can also configure the driver to handle the data in multiple ways.The Schema Map represents the data elements that can be synchronized in the SAP system.

The map elements have the following format:

<Segment Infotype Name>:<Infotype Field>	// Table/Structure

or

<Segment Infotype Name>:<Infotype Field>	// Simple data

Below are a few examples of maps between SAP User attributes and eDirectory attributes.

eDirectory Attribute SAP User Attribute

Given Name

ADDRESS:FIRSTNAME

Surname

ADDRESS:LASTNAME

sapRoles

ACTIVITYGROUPS:AGR_NAME

buildingName

ADDRESS:BUILDING_P

floor

ADDRESS:FLOOR_P

Internet EMail Address

ADDSMTP:E_MAIL

OU

ADDRESS:DEPARTMENT

Pager

ADDPAG:PAGER

sapAlias

ALIAS:USERALIAS

The driver can synchronize multiple-instance data (such as TELEPHONE), but it cannot guarantee the specification of a primary value. It is also possible to specify only the Table or Structure name in a schema mapping. This is useful if only one data field exists in the structure or if you want to synchronize all data fields in a Table or Structure to eDirectory. In these instances, the driver uses a semicolon (;) delimiter between field data values.


Associations

Associations are created between SAP and eDirectory objects during the synchronization process. For the SAP User object, a unique 12-character name (per client) must be created. However, eDirectory and other applications do not need to share this same unique ID. Identity Manager allows the various naming policies in an organization to be applied to objects by using the DirXML-Association attribute.

The DirXML-Association attribute is multivalued. Therefore, if Identity Manager is being used to synchronize an object among multiple applications, all of the object's unique IDs (or associations) can be stored in this attribute on the eDirectory object.

The unique ID association links objects in SAP to their objects in eDirectory. When an Add or Matching event occurs, the association is made. This association allows the driver to perform subsequent tasks on the appropriate object.

The DirXML-Associations field is stored on the eDirectory object on the DirXML property page.
