Tools Install

This chapter presents an overview of the Tools installation option. Topics include:

About the Tools install option

The Tools option installs the exteNd design tools used for application development. Tools is available on Windows and Linux.

Procedure To install exteNd using the Tools option:

Exit all other programs (if running on Windows), then launch the exteNd installation program as described in Starting the install.

The product splash screen displays, including a dropdown for selecting the language in which you want to see the install prompts.
Select one of the available language choices and click OK.
When the Introduction panel displays, read it then click Next.

The License Agreement panel displays.
To continue with the install, you must accept the license agreement (by selecting the corresponding radio button). Then click Next.
When the Installation Key panel displays, type your key (note that it's case-sensitive) then click Next.

NOTE: Your installation key determines which product features are available to be installed.

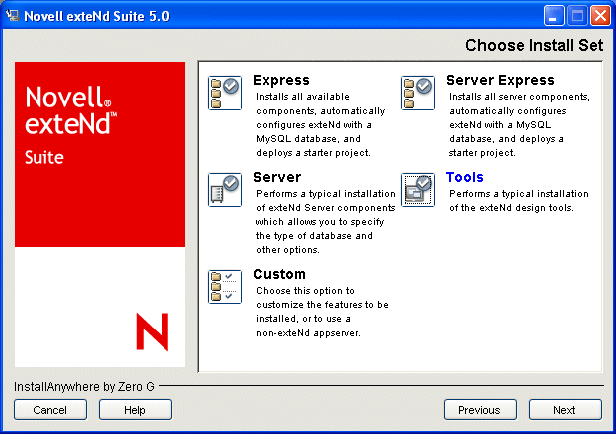

The Choose Install Set panel displays.
Select Tools, then click Next.
When the Choose Install Location panel displays, accept the default or specify a different directory where you want exteNd to be installed. Then click Next.

NOTE: If the specified directory doesn't exist, you'll be prompted to confirm that you want it created. Click OK.

The Pre-Installation Summary panel displays.
If the summary matches the result you want, click Install to proceed with the installation.
