A.1 Filters Tab

All filtering takes place in the Filters tab of the Report Definition Editor.

Figure A-1 Filters Tab

You set filter parameters using the Boolean operators available through the And drop-down menu, and adding the search parameters with the+ button. Alternatively, you set date filters using the Relative Date filter parameters on the right-hand portion of the page.

You can filter according to size, dates, or both.

A.1.1 Filter Expression Builder

The And drop-down menu is used to:

  • Select Boolean operators for creating a search filter

  • Create additional groups or conditions

  • Delete search filters, groups, or conditions

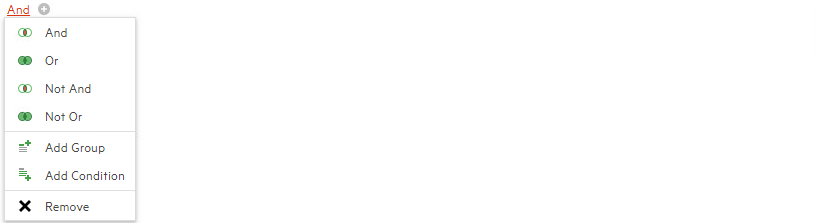

Figure A-2 And Drop-Down Menu

The + button next to the And drop-down menu are used to create parameters for a search condition.

Figure A-3 Parameters for Filter

A.1.2 Relative Date Filtering Parameters

Click Relative Date and then select the Create Date, Modify Date, and Access Date check boxes to enable the corresponding drop-down menus and fields.

Figure A-4 Relative Date Filtering Parameters
