69.5 Configuring Email Notification for Agent Problems

The Monitor Agent can notify you by email when agent problems arise.

69.5.1 Configuring Email Notification

You can configure the Monitor Agent to notify one or more users by email if an agent goes down. You can also receive email confirmation messages showing that the Monitor Agent itself is still running normally.

  1. On Windows, at the Monitor Agent server console, select the root agent group to set up email notification defaults for all monitored agents.

    or

    Select any agent group to set up email notification for the agents in the selected group.

    or

    Select any agent to set up email notification for that individual agent.

    then

    Click Configuration > Notification.

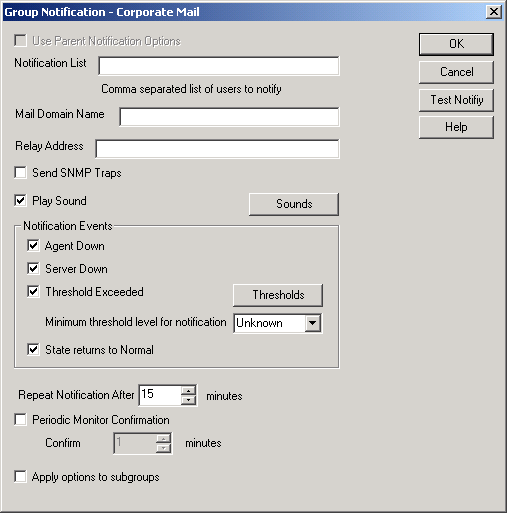

    Notification dialog box

    Unless you selected the root agent group, Use Parent Notification Options is selected and all options are dimmed. Deselect Use Parent Notification Options to set up email notification for an agent group or an individual agent.

    or

    On Linux, at the Monitor Agent Web console, select one or more agents, then click Preferences > Setup to display the Notify settings.

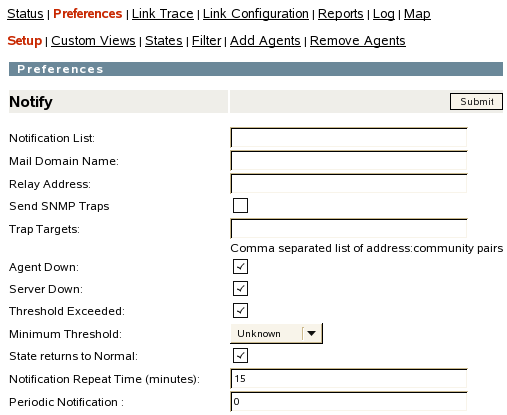

    Notify section on the Preferences page

    NOTE:The Use Parent Notification Options and Apply Options to Subgroups options are not available on Linux.

  2. Specify one or more email addresses or pager addresses to send notifications to.

  3. Specify the Internet domain name of your GroupWise system.

  4. If the mail system to which email notification is being sent performs reverse DNS lookups, specify the IP address or hostname of a server to relay the notification messages through.

    The Monitor Agent should relay email notifications through a server that has a published DNS address.

  5. On Windows, at the Monitor Agent server console, click Test Notify to determine if the Monitor Agent can successfully send to the addresses specified in the Notification List field.

    A message informs you of the results of the test. If the test is successful, a test message arrives shortly at each address. If the test is unsuccessful, verify the information you provided in the Notification List, Mail Domain Name, and Relay Address fields.

    NOTE:On Linux, at the Monitor Agent Web console, email notifications cannot be tested.

  6. Select the events to trigger email notification messages.

    • Agent Down

    • Server Down

    • Threshold Exceeded

    • State returns to Normal

    If you want to be notified of more specific states, see Section 69.5.2, Customizing Notification Thresholds.

  7. Select the amount of time that you want to elapse before repeat email notifications are sent.

  8. To monitor the Monitor Agent and assure it is functioning normally, select Periodic Monitor Confirmation, then select the number of minutes between Monitor Agent email confirmation messages.

  9. Click OK to save the email notification settings.

69.5.2 Customizing Notification Thresholds

To refine the types of events that trigger email notification messages, you can create your own thresholds that describe very specific states. Using thresholds, you can configure the Monitor Agent to notify you of problem situations peculiar to your GroupWise system.

  1. Make sure that notification has been properly set up as described in Section 69.5.1, Configuring Email Notification.

  2. On Windows, at the Monitor Agent server console, click Configuration > Thresholds.

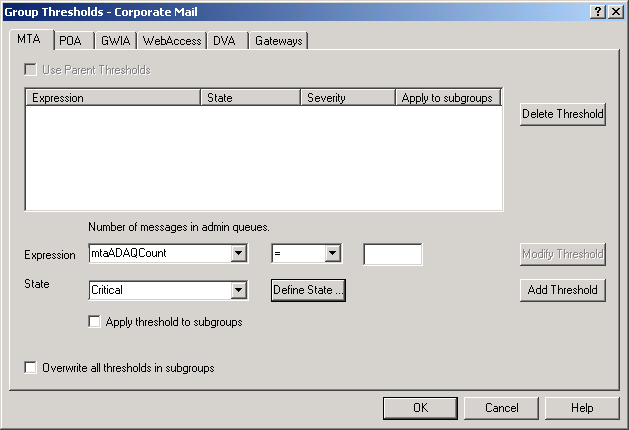

    Thresholds dialog box

    or

    On Linux, at the Monitor Agent Web console, click Thresholds on the Status page.

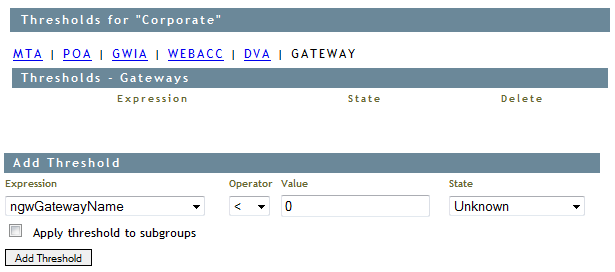

    Thresholds page

    The tabs at the top of the dialog box enable you to create a separate threshold for each type of GroupWise agent.

  3. Select the type of agent to create a threshold for.

  4. In the Expression field, select a MIB variable.

    GroupWise agent MIB files are located in the /agents/snmpmibs directory of your GroupWise software distribution directory or the downloaded GroupWise 2012 software image. The MIB files list the meanings of the MIB variables and what type of values they represent. The meaning of the MIB variable selected in the Expression field is displayed above the field.

  5. Select an operator from the drop-down list.

  6. Type the value to test for.

    For example, you might want to test the mtaOldestQMsg variable for a specific number of seconds that you consider to be too long for a message to be in the queue.

  7. In the State field, select an existing state.

    Icon

    State

    Unknown

    Normal

    Informational

    Marginal

    Warning

    Minor

    Major

    Critical

    or

    Create a new state:

    1. On Windows, at the Monitor Agent server console, click Define State.

      or

      On Linux, at the Monitor Agent Web console, click Preferences > States.

    2. Type a name for the new state.

    3. Select a severity level.

    4. Provide instructions about how to handle the new state.

    5. Click Close to save the new state.

  8. Click OK to create the new threshold.

  9. Repeat Step 2 through Step 8 for each type of agent that you want to create a customized state for.

  10. Make sure Threshold Exceeded is selected in the Notification Events box.

  11. Click OK to save the new notification settings.
