65.2 Using the Monitor Web Console

The Monitor Web console lists all GroupWise agents that the Monitor agent is polling for status information. Use the following URL to access the Monitor Web console:


where web_server_address represents the IP address or hostname of the Web server where the Monitor Application is installed.

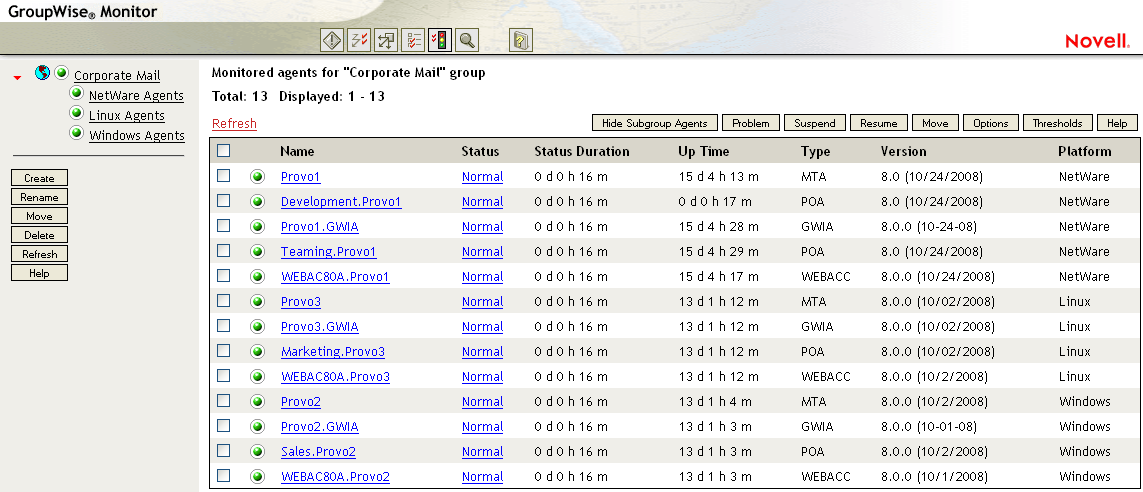

Figure 65-3 GroupWise Monitor Web Console

Features of the Monitor Web console are available on buttons at the top of the Monitor page.




Link Trace

Link Configuration

Global Options



Click an agent group in the left panel to display all monitored agents in the group. Click the Problem button to display only those agents whose status is other than Normal in the agent group. Click the Problems icon to display all agents in your GroupWise system whose status is other than Normal.

Click the status of an agent in the Status column to display agent status details.

Click an agent in the Name column to open its agent Web console. For information about the agent Web consoles, see Section 65.1.4, Viewing an Agent Web Console.

Click Refresh to update the agent status information. To modify the default poll cycle, see Section 63.4, Configuring Polling of Monitored Agents.

To see what specific tasks can be performed at the Monitor Web console, see Section 66.0, Comparing the Monitor Consoles.
